Customize Focusing system Beam expander  Collimator for CivilLasers Laser

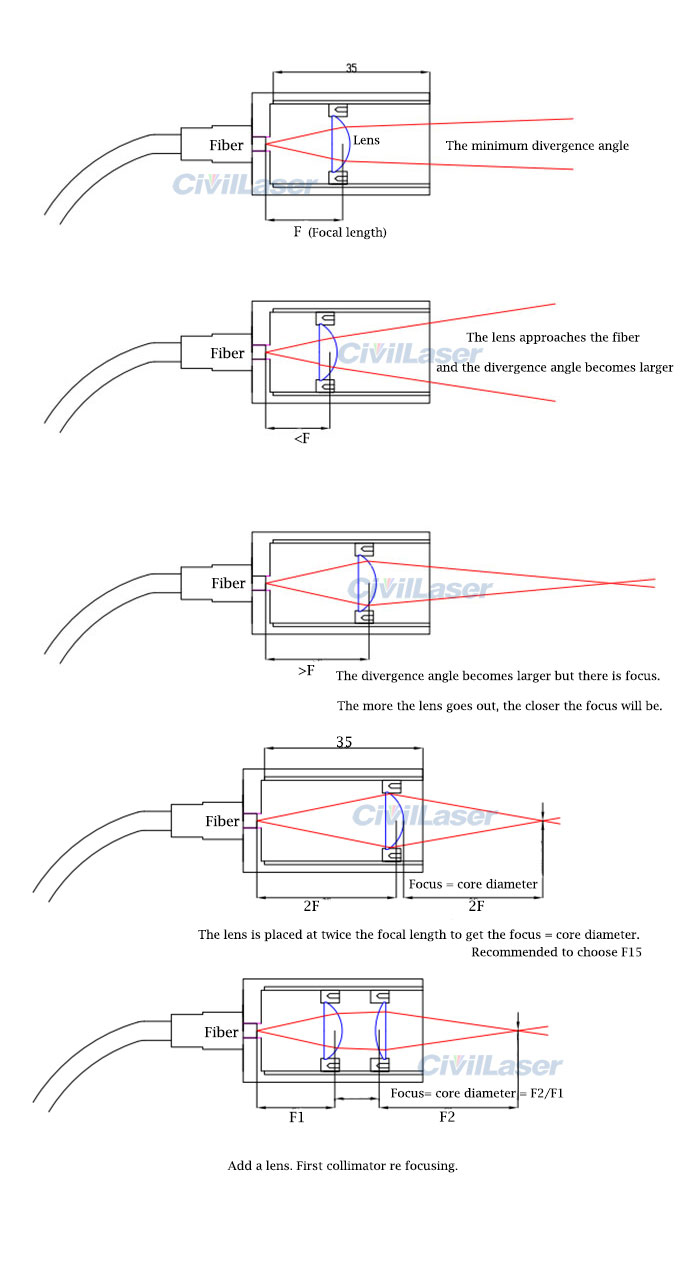

Usually The focal length of the  DPSS 레이저/반도체 레이저 is fixed.

If you need to be able to adjust the size of the spot, you can add this custom function.



Model Interface Focal Length Caliber Size Adjustment Mode Antireflection Coating Wavelength

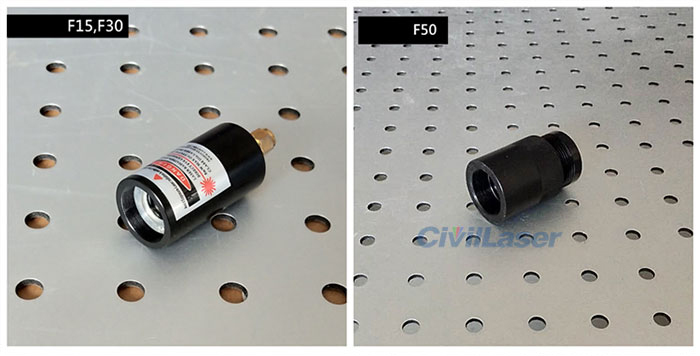

F15 SMA905 15mm, 16mm, 18mm, 25.4mm, 30mm 12.7mm Φ23*40mm The aluminum piece with the lens inside the lens barrel has tweezers eye, which can be adjusted by the tweezers to adjust the collimation. 400~700nm, 700~1100nm, 98%
F30 SMA905 15mm, 16mm, 18mm, 25.4mm, 30mm 12.7mm Φ23*40mm The aluminum piece with the lens inside the lens barrel has tweezers eye, which can be adjusted by the tweezers to adjust the collimation. 400~700nm, 700~1100nm, 98%
F50 SMA905 50mm 30mm Φ39*60mm External threaded cylinder, direct manual adjustment of collimation or focus. 400~700nm, 650~1050nm, 98%
collimator

collimator




Use cases video:

Reference picture:

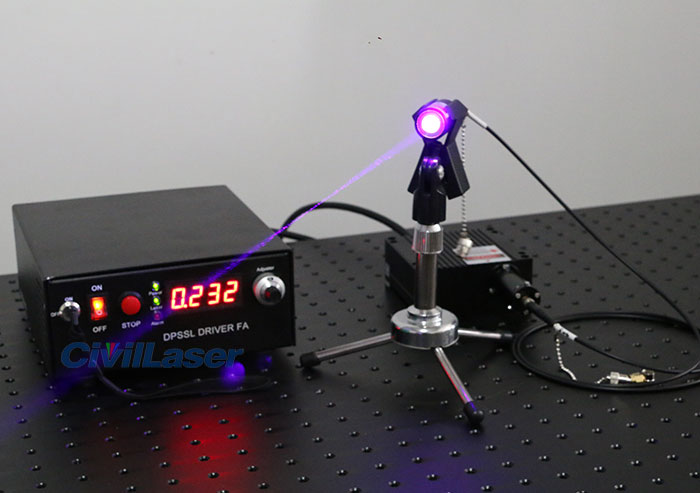

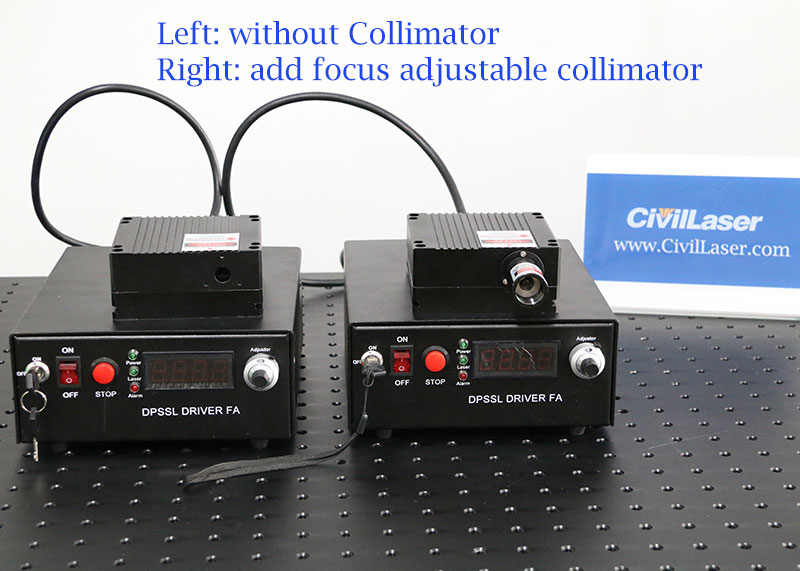

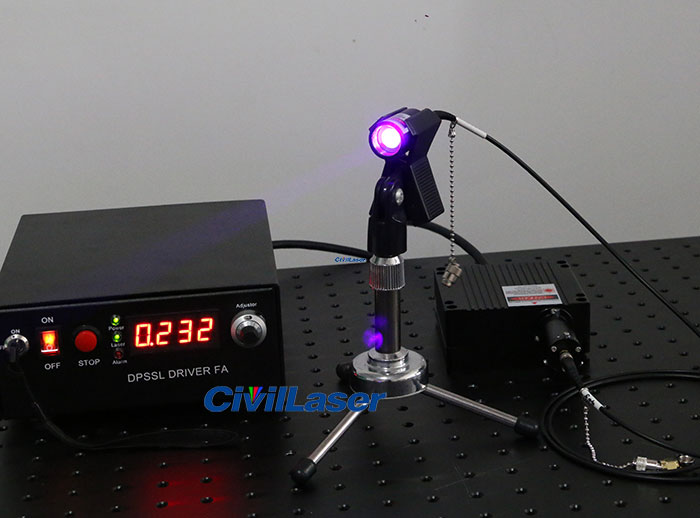

laser Collimator

laser Beam expander

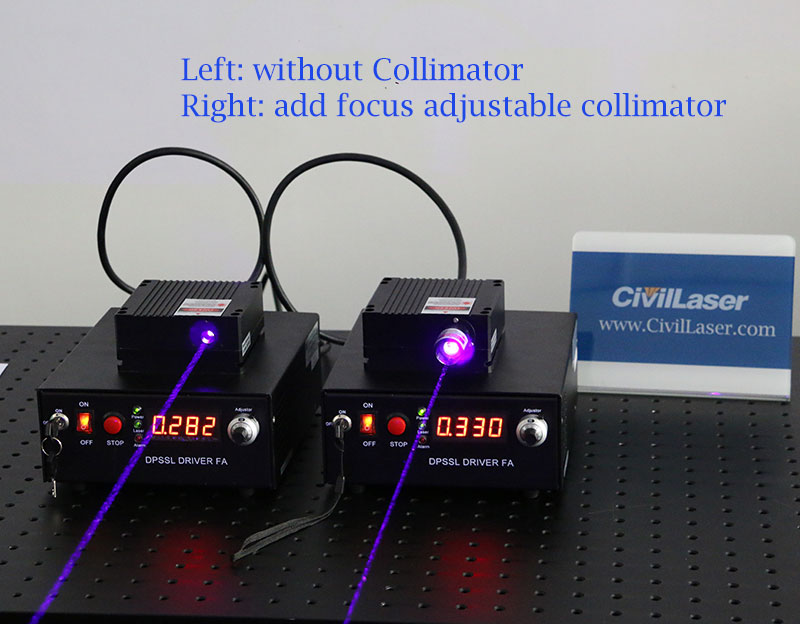

laser focus adjustable

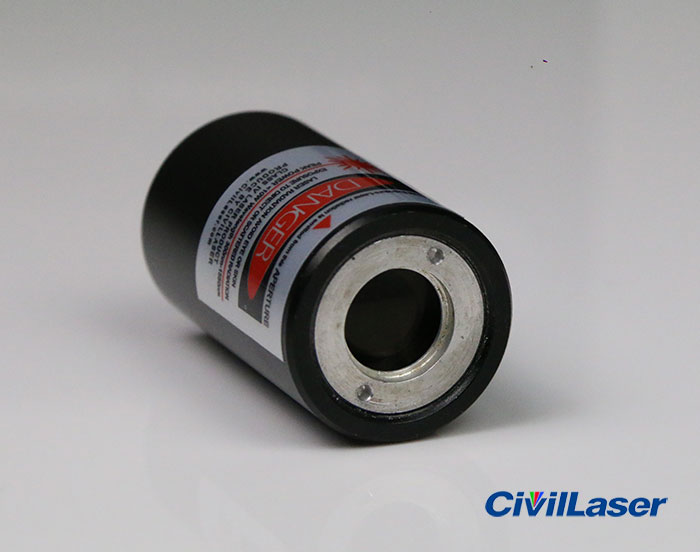

laser collimator

laser collimator
