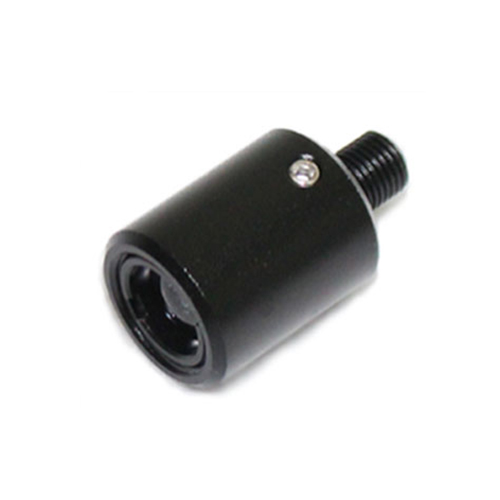

파이버 콜리메이터 Diameter 10mm Fiber Optic Focusing Lens SMA905 Fiber

파이버 콜리메이터 Diameter 10mm Fiber Optic Focusing Lens SMA905 Fiber

This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≧100μm).

[특징]
1. This collimator is used for SMA905 connector fiber, which can be easily adjusted to focus. It is easy to use, universal, compatible with other optical devices, and uses wavelengths from 200nm to 2500nm.
2. The 10mm lens is focused, and after the beam passes through the lens, the divergence angle does not exceed 2°.

[명세서]

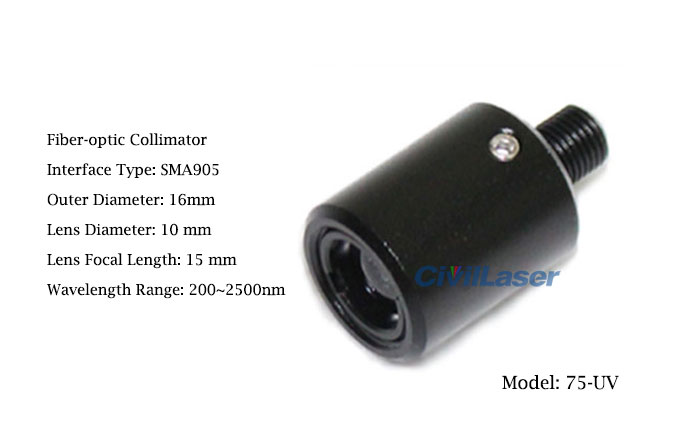

상품명:  파이버 콜리메이터
Model: 75-UV
Connector: SMA905

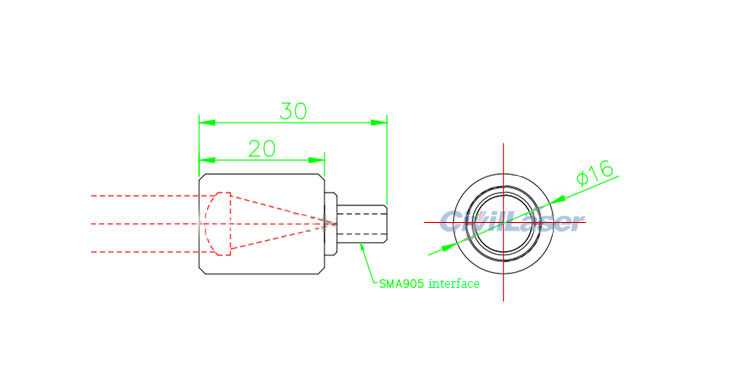

Outer Diameter: 16mm
Lens Diameter: 10 mm
Lens Focal Length: 15 mm
Wavelength Range: 200~2500 nm
작동 온도: -20~150°C
Housing 재료: Aluminum, black
