808nm 10~17W 2IN1 Laser Head&Power Supply Infrared 소프트웨어 제어 레이저 시스템

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


808nm 10~17W 2IN1 Laser Head&Power Supply Infrared 소프트웨어 제어 레이저 시스템

[Feature]
1. High Stability

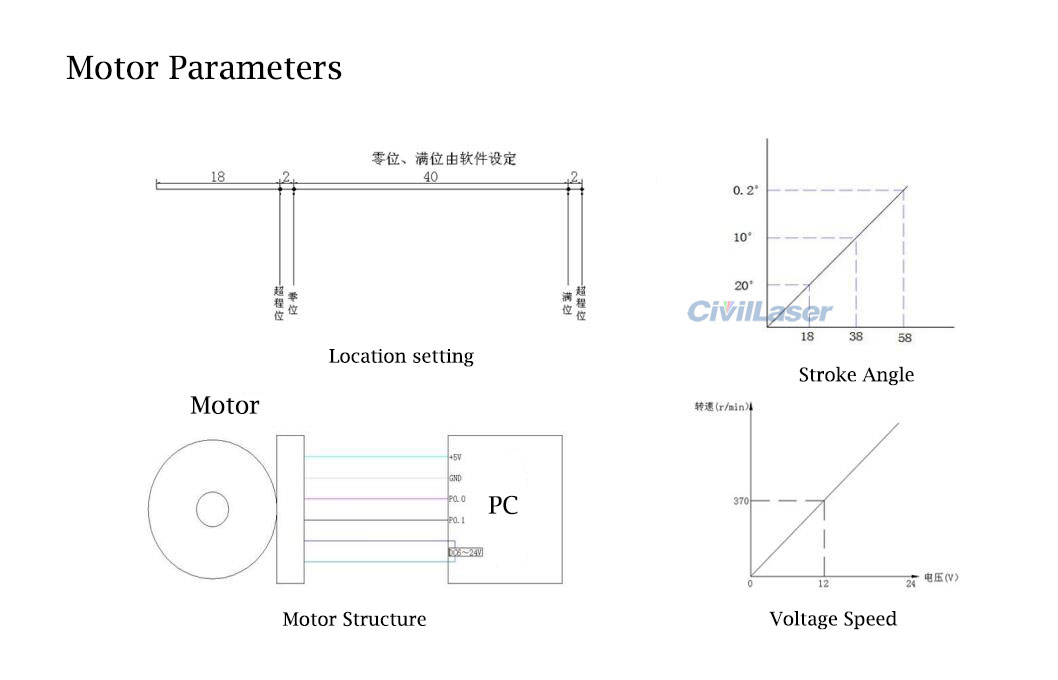

2. Motorized lens 0.5~15° zoom
3. Electromechanical integrated structure and seismic design
4. The motor travels to the maximum or minimum distance and automatically closes
5. Over temperature protection: automatic shutdown at initial setting of 60 degrees centigrade.

[Application]
Long-distance night vision fill light (≧2KM)

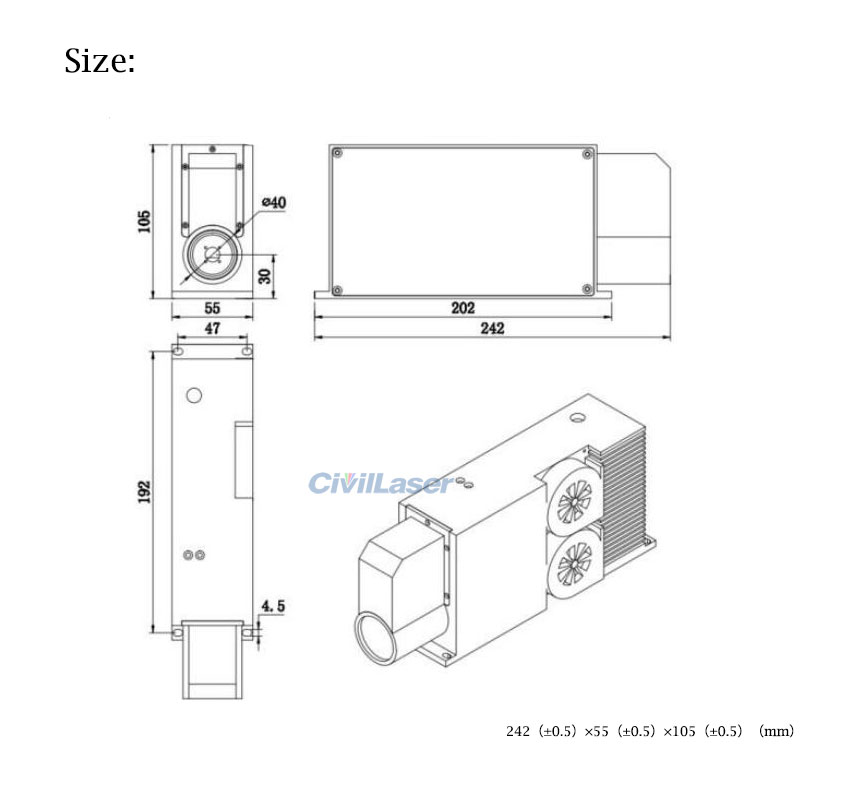

[Structural parameters]
크기: 242 (±0.5) × 55 (± 0.5) × 105 (± 0.5) (mm)
Weight: 1.5±0.1kg
Mounting Hole Position: 192-47 (mm)
Installation Suggestion: 4-M4;
Laser Hole Position: Horizontal centering
Light Height: 30mm (distance from the bottom plate)

[Specification]

Parameter Symbol Value
Wavelength λ 808nm
Output Power W 10~17W
Line Width △λ ±5nm
Transverse Mode Mode TEM00
Power Error RMS@25℃ ≦5% (4 hours)
Focusing Mode   50x electric focus lens
Lighting Angle Full angle (°) 0.5~15° adjustable
Zoom rate S T ≦ 7S (one way 0.5 ° ~ 20 ° or 20 ° ~ 0.5 °; 12V power supply)
Working Distance KM ≦2.0KM
Operating Voltage V DC12V(≧4A)DC24V(≧3A)
Average Power Consumption W ≦60W
Control Mode   V1.0 communication protocol
Signal Feedback   Pulse position information
Preheat Time min ≦3.0 min
Operating Temperature   -20~50℃
Operating Humidity   20 to 85% RH (no condensation)
Storage Temperature   -30℃~+70℃
Storage Humidity   10~95%RH
Vibration Test   GBT 2423.43-2008/-15m/s2 5-200Hz
Service Life H ≧10000 hour
Warranty Period   1 Year
