Linear 레이저 시스템 532nm 635nm 650nm 793nm 808nm 915nm 1W Line Laser

메모: The $110 is the deposit, not the final price.

[Feature]
1. Two-way temperature control
2. Wavelength and Power stability
3. Small size
4. Applicable temperature is wide
5. Energy uniformity

[Application]
1. 3D scanning
2. Machine vision
3. Slit detection
4. Trajectory monitoring

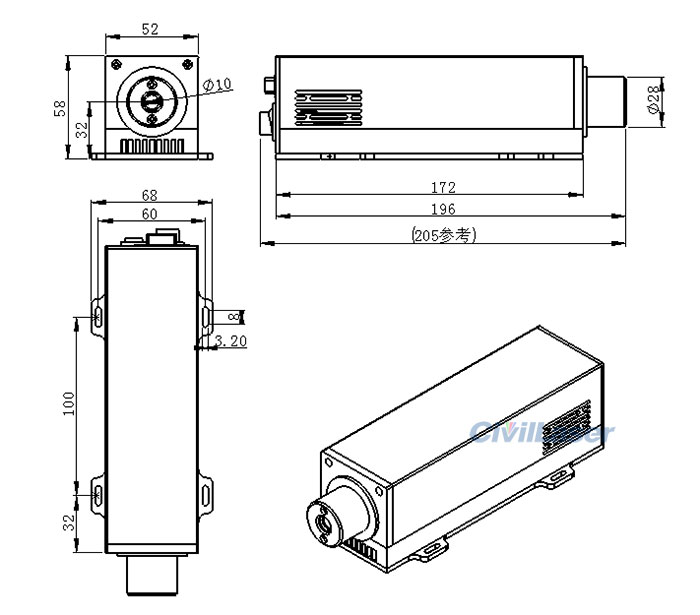

[Structural parameters]
크기: 205 (±0.5) × 52 (± 0.5) × 58 (± 0.5) (mm)
Weight: 0.8±0.1kg
Mounting Hole Position: 60-100 (mm)
Installation Suggestion: 4-M3
Transverse Optical Axis: Centered
Light Height: 32mm (distance from the bottom plate)

[Specification]

Parameter Unit Value
Wavelength nm 532、635、650、793、808、915
Output Power W 1
Line Width △λ(nm) ≦0.1
Laser Mode   Line
Power Stability RMS ≦3% (25°C & 4 hours test data)
Spot Stability mrad ≦±0.05(25°C & 4 hours test data)
Linear Thickness mm 1~15mm(Optional)
Horizontal Deviation mm ≦1mm (left and right ends off center)
Fan-shaped Opening Angle ° 10~90° (conventional: 10°, 30°, 45°, 50°, 60°, 75°, 85°)
Power Density Error X% ≦±30% (Luminance uniformity)
Vertical Deviation mm ≦5mm (@2.5M) vertical deviation from the center value
Linear Curvature   Dx<1.5mm (no fork)
Light Homogenization Mothed   Built-in fiber coupling system
Adapter Power Supply   Built-in SP-DC12V03A
Average Power Consumption W ≦40.0
TTL Modulation Hz ≦1kHz (0/5VDC level signal input)
Temperature Control Accuracy 0.1°C (built-in TEC cooling/heating bidirectional thermostat)
Safety Protection   Short circuit protection / over temperature protection / over voltage protection
Control Method   Computer software or host computer instruction
Data Feedback   R232 interface controls and feeds back temperature, current, over temperature or other abnormal parameter information
Ambient Temperature -10°C~+50°C
Environment Humidity X% 20-85% RH-non-condensing
Storage Temperature °C -20℃~+60℃
Storage Humidity X% 10~95%RH
Vibration Test   GBT 2423.43-2008/-15m/s2 5-200Hz
Impact Resistance   IEC 60068-2-47:2005/-150 m/s2 11ms
Amplitude Noise rms ≦1% (1~20MHz)
Service Life hrs ≧10000
Warranty Period year 1

Note
All linear lasers are customized products.
The laser wavelength/output power/divergence angle/line thickness/size/power supply... and other parameters need to be confirmed first.
