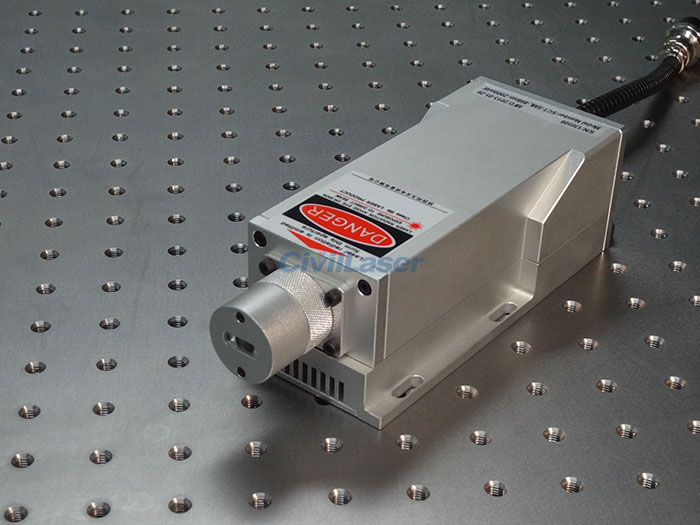

532nm 793nm 808nm 915nm 3～8W 고출력 레이저 Line Laser Syetem
[Feature]
1. Two-way temperature control
2. Wavelength and Power stability
3. Seismic design
4. High firmness
5. High stability
[Application]
1. Industrial inspection
2. Road pavement test
3. 3D scanning imaging

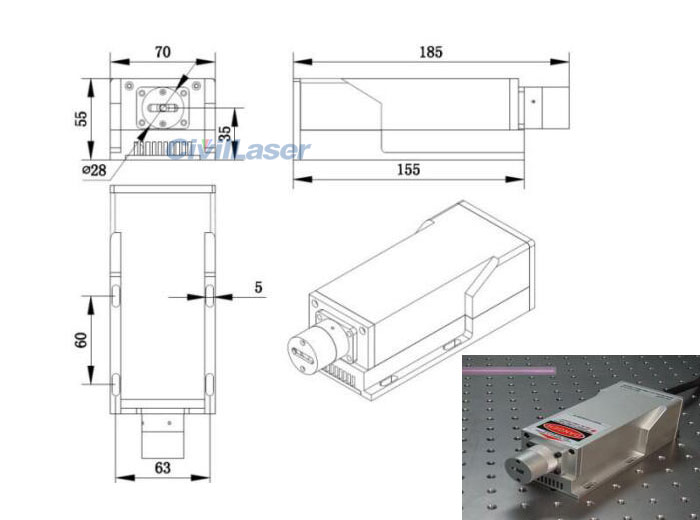

[Structural parameters]
크기: 185 (±0.5) × 70 (± 0.5) × 55 (± 0.5) (mm)
Weight: 1.5±0.1kg
Mounting Hole Position: 63-60 (mm)
Installation Suggestion: 4-M4
Transverse Optical axis: centered
Light Height: 35mm (distance from the bottom plate)
메모: The $110 is the deposit, not the final price.
[Specification]
| Parameter |
Unit |
Value |
| Wavelength |
nm |
532nm、793nm、808nm、915nm |
| Output Power |
W |
3～8 |
| Line Width |
△λ(nm) |
±3.0nm |
| Lader Mode |
|
Line |

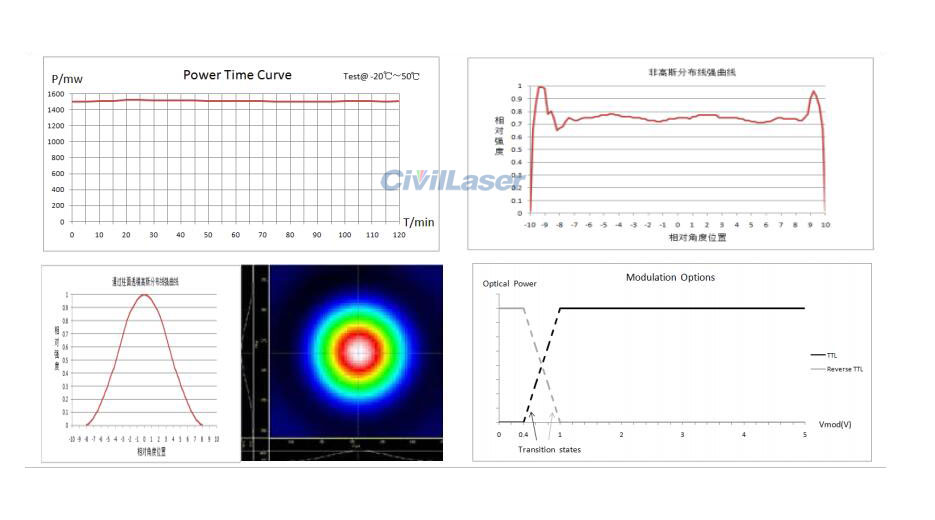

| Power Stability |
RMS |
≦3% (25°C & 4 hours test data) |
| Spot Stability |
mrad |
≦±0.05(25°C & 4 hours test data) |
| Horizontal Deviation |
mm |
≦1mm (left and right ends off center) |
| Fan-shaped Opening Angle |
° |
10~90° (conventional: 10°, 30°, 45°, 50°, 60°, 75°, 85°) |
| Power Density Error |
X% |
≦±30% (Luminance uniformity) |
| Vertical Deviation |
mm |
≦10mm (@2.5M) vertical deviation from the center value |
| Linear Thickness |
mm |
1～15mm（Adjustable） |
| Linear Curvature |
|
Dx<1.5mm (no fork) |
| Light Homogenization Mothed |
|
Built-in fiber coupling system |
| Adapter Power Supply |
|
SP-DC12V08A SP-AC08A |
| Average Power Consumption |
W |
≦60.0 |
| TTL Modulation |
Hz |
≦1kHz (0/5VDC level signal input) |
| Temperature Control Accuracy |
℃ |
0.1°C (built-in TEC cooling/heating bidirectional thermostat) |
| Safety Protection |
|
Short circuit protection over temperature protection over voltage protection reverse polarity protection |
| Control Method |
|
Computer software or host computer instruction |
| Data Feedback |
|
R232 interface controls and feeds back temperature, current, over temperature or other abnormal parameter information |
| Ambient Temperature |
℃ |
-20°C~+50°C |
| Environment Humidity |
X% |
20-85% RH-non-condensing |
| Storage Temperature |
°C |
-30℃~+70℃ |
| Storage Humidity |
X% |
10～95%RH |
| Vibration Test |
|
GBT 2423.43-2008/-15m/s2 5-200Hz |
| Impact Resistance |
|
IEC 60068-2-47:2005/-150 m/s2 11ms |
| Amplitude Noise |
rms |
≦1% （1～20MHz） |
| Service Life |
hrs |
≧10000 |
| Warranty Period |
year |
1 |
Note:
All linear lasers are customized products.
The laser wavelength/output power/divergence angle/line thickness/size/power supply... and other parameters need to be confirmed first.
