Linear 레이저 시스템 532nm 808nm 915nm 940nm 15W Powerful Line Laser 전원 공급 장치 포함

메모:

Most Solid-state lasers of CivilLaser can be customized to line laser system.

The overall cost is the price of the laser itself, plus the cost of customized line lasers.

Cost of customized line lasers.

1. Customized line laser for low power laser cost $150~$180.

2. Customized line laser for high power laser cost $360~$540.

If you need customized a line laser system, please contact us.

[Feature]
1. High brightness for a wide range of test conditions
2. High thickness, completely covering the camera's landscape width
3. The camera is equipped with a special multi-dimensional adjustment mechanism, which is convenient, firm and reliable

[Application]
Road pavement and railway road test

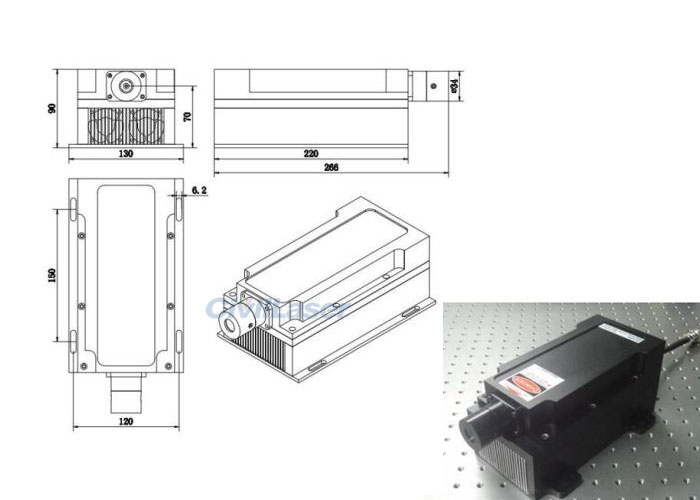

[Structural parameters]
크기: 266 (±0.5) × 130 (± 0.5) × 90 (± 0.5) (mm)
Weight: 3.2 ± 0.1kg
Mounting Hole Position: 150-120 (mm)
Installation Suggestion: 4-M4
Transverse Optical Axis: centered
Light Height: 71mm (distance from the bottom plate)

메모: The $110 is the deposit, not the final price.

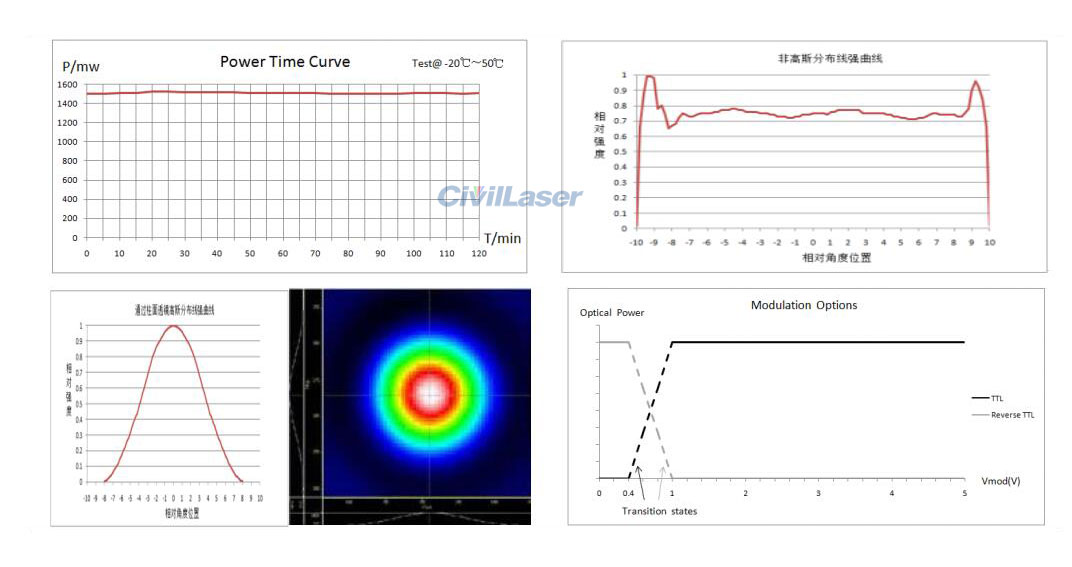

[Specification]

Parameter Unit Value
Wavelength nm 532nm、808nm、915nm、940nm
Output Power W 15
Line Width △λ(nm) ±3.0nm
Lader Mode   Line
Power Stability RMS ≦3% (25°C & 4 hours test data)
Spot Stability mrad ≦±0.05(25°C & 4 hours test data)
Horizontal Deviation mm ≦1mm (left and right ends off center)
Fan-shaped Opening Angle ° 10~90° (conventional: 10°, 30°, 45°, 50°, 60°, 75°, 85°)
Power Density Error X% ≦±30% (Luminance uniformity)
Vertical Deviation mm ≦10mm (@2.5M) vertical deviation from the center value
Linear Thickness mm 1~15mm(Adjustable)
Linear Curvature   Dx<1.5mm (no fork)
Light Homogenization Mothed   Built-in fiber coupling system
Adapter Power Supply   SP-AC10A
Average Power Consumption W ≦150.0
TTL Modulation Hz ≦1kHz (0/5VDC level signal input)
Temperature Control Accuracy 0.1°C (built-in TEC cooling/heating bidirectional thermostat)
Safety Protection   Short circuit protection over temperature protection over voltage protection reverse polarity protection
Control Method   Computer software or host computer instruction
Data Feedback   R232 interface controls and feeds back temperature, current, over temperature or other abnormal parameter information
Ambient Temperature -20°C~+50°C
Environment Humidity X% 20-85% RH-non-condensing
Storage Temperature °C -30℃~+70℃
Storage Humidity X% 10~95%RH
Vibration Test   GBT 2423.43-2008/-15m/s2 5-200Hz
Impact Resistance   IEC 60068-2-47:2005/-150 m/s2 11ms
Amplitude Noise rms ≦1% (1~20MHz)
Service Life hrs ≧10000
Warranty Period year 1

메모:
All linear lasers are customized products.
The laser wavelength/output power/divergence angle/line thickness/size/power supply... and other parameters need to be confirmed first.
