10mW~100mW C-band ASE broadband light source 2dB Gain flattening module type
Gain flattened fiber ASE broadband light source is based on ordinary broadband light source and added the gain flattening technologies, nd optimize the structure of the light source, the output spectral flatness of <2dB, output power and high. Suitable for optical fiber sensing applications.
[명세서]
| Parameter |
Unit |
Typical value |
Remarks |
| Working wavelength |
nm |
1528～1563 |
C-Band |
| Output Power |
mW |
10mW~100mW |
Choose. (Output power is fixed.) |
| Output isolation |
dBm |
>35 |
|

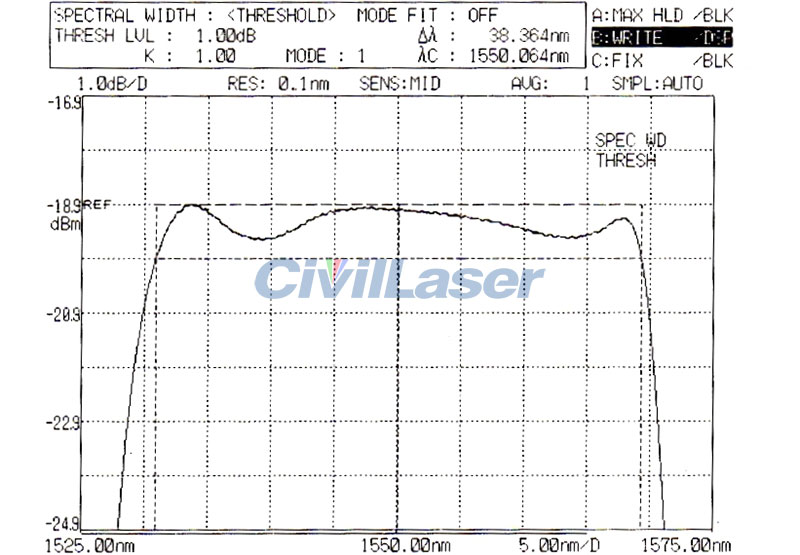

| Spectral flatness |
dB |
1.5 (Type), 2(Max) |
|
| Short-term stability (15 minutes) |
dB |
≤ ±0.02 |
|
| Long-term stability (8 hours) |
dB |
≤ ±0.05 |
|
| Fiber type |
|
단일 모드 Fiber SMF-28e |
|
| Fiber Optic Output Type |
|
FC/APC (Default) |
Accept custom |
| Operating temperature |
°C |
-20°C ～ 65°C |
|
| Storage temperature |
°C |
-40°C ～ 85°C |
|
| Size |
|
Module A: 90x70x15
Module B: 150x125x20(Default)
Module C: 120x160x55
|
We send it randomly.
Please contact us if you have size requirements.
|
| Control method |
|
RS232/DB9 Female |
Default not include, Only for output power adjustable model.
Add software control functions, please contact us. |
| Power supply |
|
5V DC, <15W |
|
