808nm 4W  MM Fiber Coupled 고성능 Pump 레이저 소스 Desktop type

808nm MM Fiber Coupled 고성능 Pump 레이저 소스

The high-power laser source is based on a high-performance semiconductor laser chip.
It uses a professionally designed constant current drive and TEC control to ensure safe and stable laser operation,
and 105/125um fiber-coupled output.
The power fluctuation is <1%, and the spectral stability is better than ±3nm.
Suitable for use in medical research, fiber laser pumping and other production testing. According to customer requirements,
you can provide desktop, or modular package, and provide PC monitoring software.

[Feature]
1. High output power
2. Power and spectral stability
3. Module or desktop package (Current laser is Desktop type)

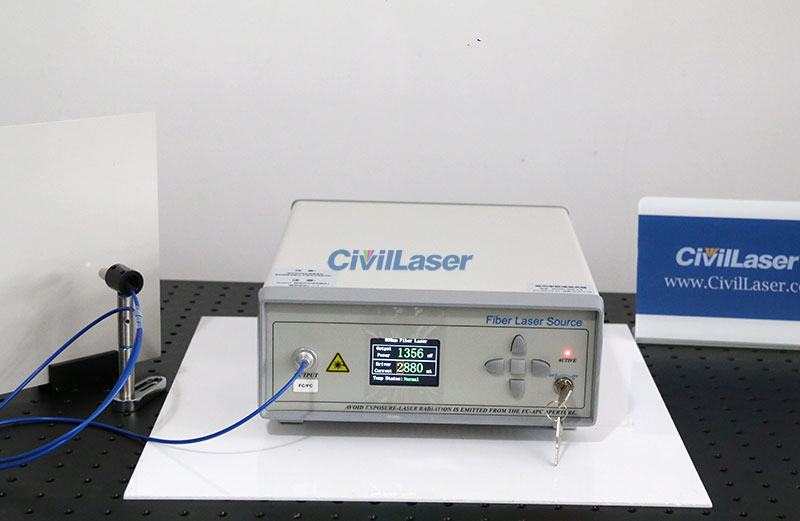

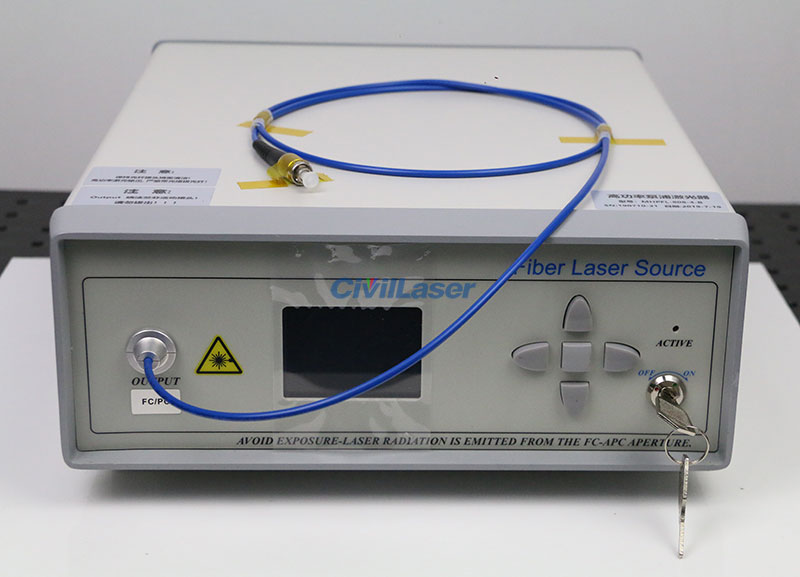

[Desktop type]
1. Output power adjustable.
2. With LCD: Display output power/Working current...


[Application]
1. Medical research
2. Material handling
3. Optical Materials Research
4. Fiber laser pump


[명세서]

Parameter

Unit

Typical value

Remarks

Working wavelength

nm

808

±10nm

Spectral width

nm

3~6



Output power

W

4

Customizable:5mW~10W

Short term stability(15 Minutes)

dB

≤ ±0.01(1%)



Long-term stability(8 Hours)

dB

≤ ±0.02 (2%)



Fiber type

-

MM Fiber
105/125μm,200/220μm,NA= 0.22



Pigtail connector Interface

-

FC/APC

Customizable:
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/PC
5=FC/PC

Fiber length

M

1m

If you need 2m fiber,please contact us.

Working temperature

°C

-20 ~ +50



Storage temperature

°C

-20 ~ +70



Power supply

-

AC 110V~220V



Desktop type size

mm

260(W)×280(D)×120(H) 260(W)×320(D)×120(H)

We send it randomly.
Please contact us if you have size requirements.
