850nm 50mW IR laser MM FC Laser output power adjustable Desktop type
The high-power laser source is based on a high-performance semiconductor laser chip.
It uses a professionally designed constant current drive and TEC control to ensure safe and stable laser operation,
and 105/125um fiber-coupled output.
The power fluctuation is <1%, and the spectral stability is better than ±3nm.
Suitable for use in medical research, fiber laser pumping and other production testing.
According to customer requirements, you can provide desktop, or modular package, and provide PC monitoring software.
[Feature]
1. High output power
2. Power and spectral stability
3. Module or desktop package (Current laser is desktop type)

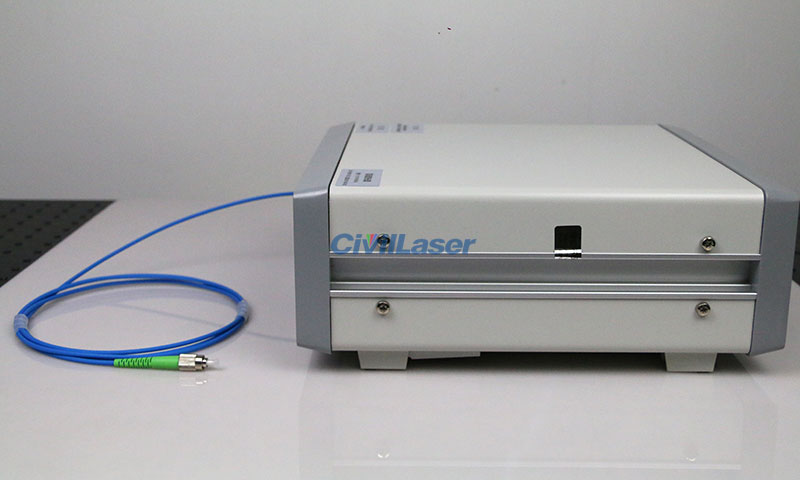

[Desktop type]
1. Output power adjustable.

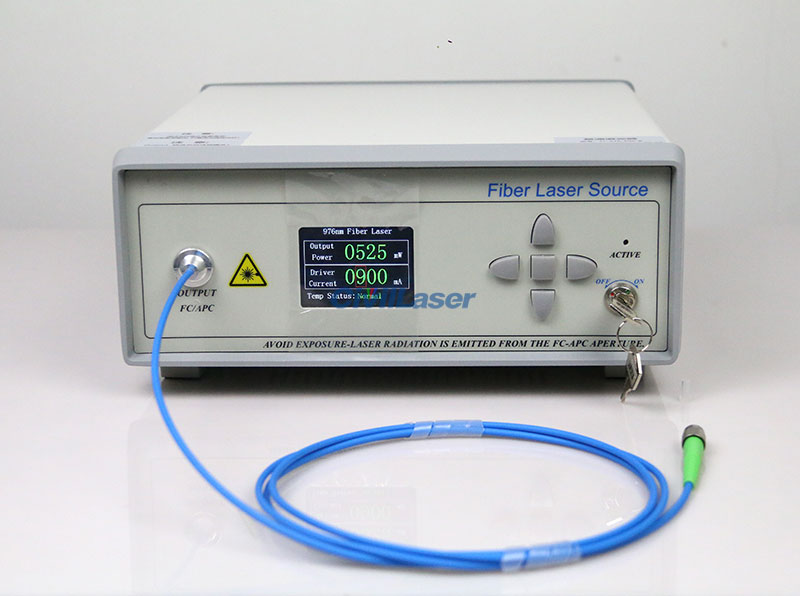

2. With LCD: Display output power/Working current...
[Application]
1. Medical research
2. Material handling
3. Optical Materials Research
4. Fiber laser pump
[명세서]
|
Parameter
|
Unit
|
Typical value
|
Remarks
|
|
Working wavelength
|
nm
|
850
|
±10nm
|
|
Output power
|
mW
|
50
|
|
|
Short term stability(15 Minutes)
|
dB
|
≤ ±0.01(1%)
|
|
|
Long-term stability(8 Hours)
|
dB
|
≤ ±0.02 (2%)
|
|
|
Fiber type
|
-
|
MM Fiber
62.5/125um, NA=0.28
|
|
|
Pigtail connector Interface
|
-
|
FC/APC
|
Customizable:
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/PC
5=FC/PC
|
|
Fiber length
|
M
|
1m
|
If you need 2m fiber,please contact us.
|
|
Working temperature
|
°C
|
-20 ~ +50
|
|
|
Storage temperature
|
°C
|
-20 ~ +70
|
|
|
Power supply
|
-
|
AC 110V~220V
|
|
|
Desktop type size
|
mm
|
260(W)×280(D)×120(H)
260(W)×320(D)×120(H)
|
We send it randomly.
Please contact us if you have size requirements.
|
