DFB laser L-band 1565nm~1570nm 10mW~1000mW SM 파이버 레이저 LCD Desktop type
L-band 15xxnm Single Wavelength 파이버 레이저
The 1565nm~1570nm narrow linewidth laser uses a butterfly-shaped DFB semiconductor laser chip with a wavelength of 1565nm~1570nm and a single-mode fiber output.
It uses a professionally designed driver circuit and TEC control to ensure safe and stable laser operation.
Benchtop or modular is available upon request.
[특징]
1. Narrow line width
2. Power and spectral stability
3. Module or desktop package(선택하다)
[Applications]
1. Fiber sensing
2. Fiber laser
3. Nonlinear optical research
[명세서]
Parameter
|
Unit
|
Typical value
|
Remarks
|
Working wavelength
|
nm
|
1570±1(Default)
|
L-Band
1565nm~1570nm can be customized
|

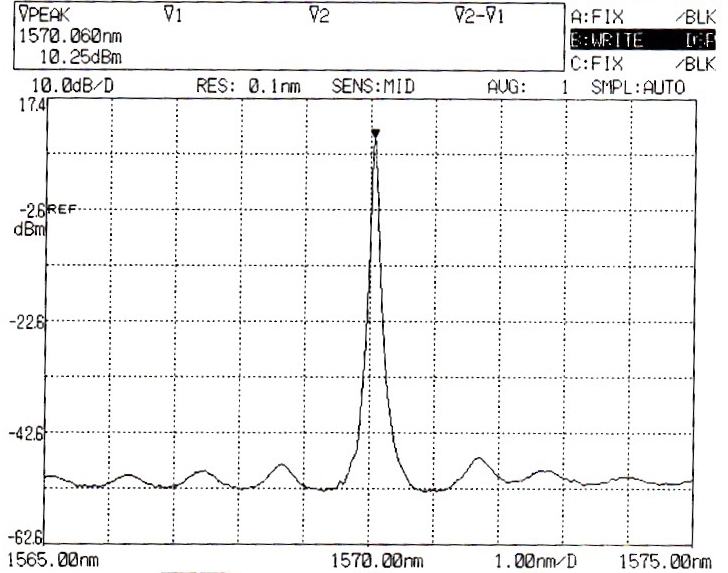

Spectral linewidth
|
nm
|
<0.1
|
|
Sideband Suppression Ratio
|
dB
|
>50
|
|
Output power
|
mW
|
10mW~1000mW
|
Choose
|
Short term stability(15 Minutes)
|
dB
|
≤ 0.02
|
|
Long-term stability(8 Hours)
|
dB
|
≤ 0.05
|
|
Fiber type
|
-
|
단일 모드 Fiber SMF-28e
|
|
Fiber Interface
|
-
|
FC/APC(Default)
|
Customizable:
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/PC
5=FC/PC
|
Fiber length
|
M
|
1m(Default)
|
|
Working temperature
|
°C
|
-20 ~ +65
|
|
Storage temperature
|
°C
|
-40 ~ +85
|
|
Power supply
|
-
|
AC 100~240 V
|
|

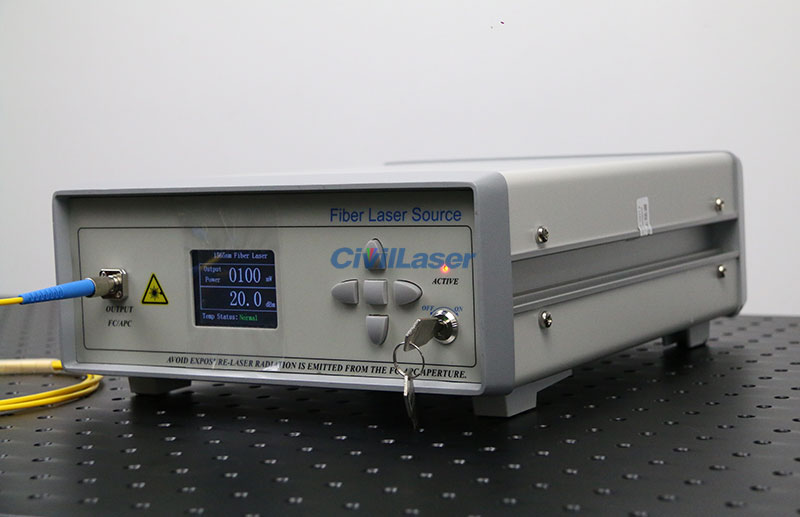

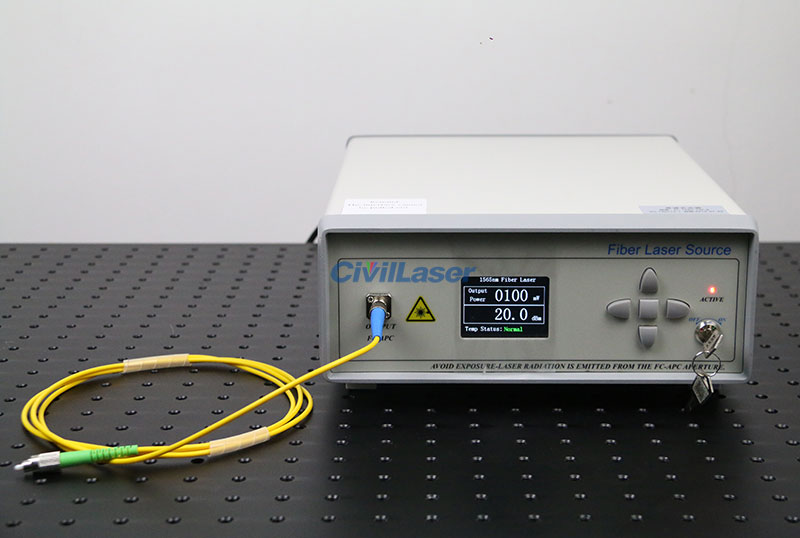

Desktop type size
|
mm
|
260(W)×320(D)×120(H)
|
We send it randomly.
Please contact us if you have size requirements.
|
Communication Interface
|
-
|
DB9 Female / RS232
|
(Default: not inlcude)
|
