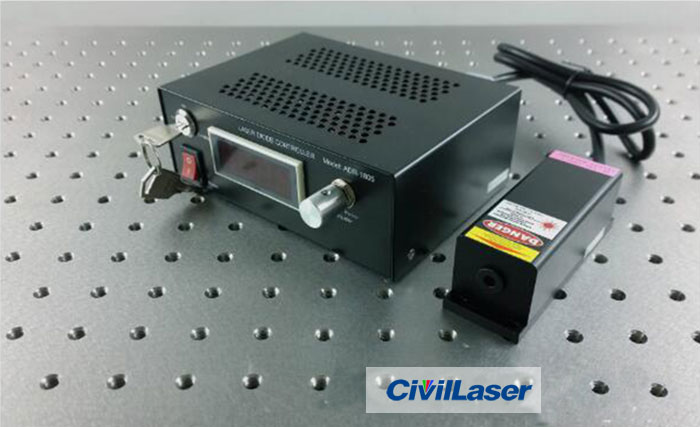

Short Wavelength Laser 375nm 50mW UV Laser CW and Modulation Together
[Note]
This laser spot is an ellipse spot.
If you need a circular spot, you can customize the coupling fiber laser.
[특징]
1.High power stability(<3%)
2.Small volume, easy to install
[명세서]
상품명: 375nm UV Laser
리드 타임: 1~3 weeks, 맞춤형 제품 가능!
파장: 375nm (+/-5nm)
출력 파워: 50mw
Spectral Linewidth: <2nm
Beam 크기: Near 1*2.5mm
Beam Divergence Angle: < 1mrad
작동 온도: 0°C-40°C
보관 온도: -40°C-85°C
조정: 0~10KHz TTL
Parameter |
Work condition |
Symbol |
Min |
Type |
Max |
Unit |
Output Power |
@PO |
PO |
|
|
50 |
mW |
Power Stability |
2hrs |
Ps |
|
|
3 |
% |
Central Wavelength |
@PO |
λc |
|
375 |
|
nm |
Spectral linewidth |
@PO |
FWHM |
|
2 |
|
nm |
빔 직경 |
1/e2 Full angle |
D |
|
2mm D//
1mm D┴ |
|
mm |
Beam Divergence Angle |
1/e2 Full angle |
Div |
|
0.5 mrad Div//
1 mrad Div┴ |
|
mrad |
Warming Time |
@PO |
Tw |
|
|
5 |
min |
Noise |
RMS(10Hz-100MHz) |
N |
|
1 |
|
% |
Service Life |
@PO |
MTBF |
10000 |
|
|
hrs |
