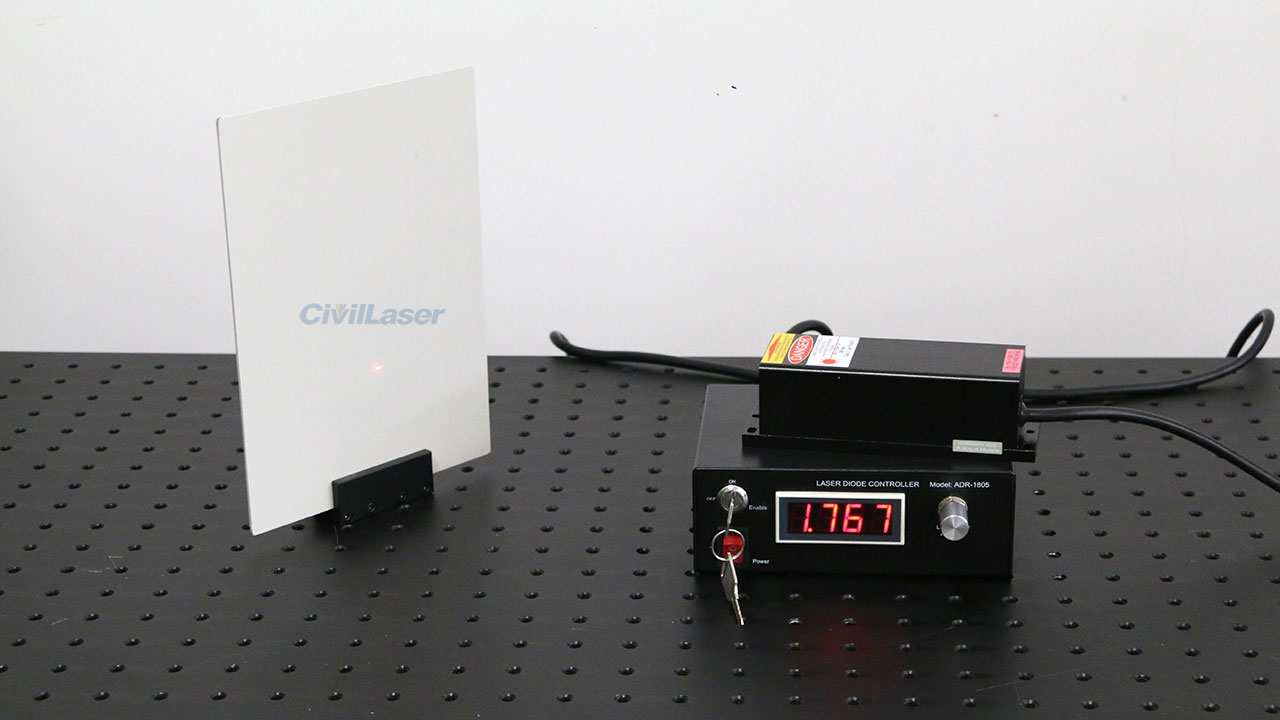

730nm 1500mW 레이저 다이오드 System 0~max 조정 가능한 출력 전력 반도체 레이저
[Notes]
This is a custom product, $2320 is the price of 1500mW laser.If you need other output power,or need to add fiber coupling or have special requirements, please contact us.
[특징]
1.High power stability(<3%)
2.Small volume, easy to install
[명세서]
상품명: 730nm infrared semiconductor laser
리드 타임: 1~3 weeks, 맞춤형 제품 가능!
파장:730nm±5nm
출력 파워:1-1500mW
Spectral Linewidth:<2nm
Beam 크기: Near 5*5mm
Beam Divergence Angle: <6 mrad
Spot Roundness:>90%
Laser Dimension: Near 140(L)x49(W)x42(H)mm
작동 온도: 0°C-40°C
보관 온도: -40°C-85°C
조정: 0~10KHz TTL
보증:1 Year
Parameter |
Work condition |
Symbol |
Min |
Type |
Max |
Unit |
Output Power |
@PO |
PO |
|
|
1500 |
mW |
Power Stability |
2hrs |
Ps |
|
|
3 |
% |
Central Wavelength |
@PO |
λc |
|
730 |
|
nm |
Spectral linewidth |
@PO |
FWHM |
|
2 |
|
nm |
빔 직경 |
1/e2 Full angle |
D |
|
5*5 |
|
mm |
Beam Divergence Angle |
1/e2 Full angle |
Div |
|
6 |
|
mrad |
Spot stability |
25°C |
|
|
|
0.05 |
mrad |
Warming Time |
@PO |
Tw |
|
|
5 |
min |
Noise |
RMS(10Hz-100MHz) |
N |
|
1 |
|
% |
Service Life |
@PO |
MTBF |
10000 |
|
|
Hrs |
