100mW~300mW SM 파이버 결합 레이저 at 1030nm LCD Desktop type
The 1030nm semiconductor laser source with single-mode fiber output uses a high-performance butterfly semiconductor laser,
combined with fiber-optic FBG frequency-locked frequency to ensure stable spectral wavelength and single-mode pigtail output.
Use professionally designed drive circuit and TEC control to ensure safe and stable laser operation.
This laser can be used in scientific research and production testing,
and can be supplied in a desktop or modular package according to customer requirements.

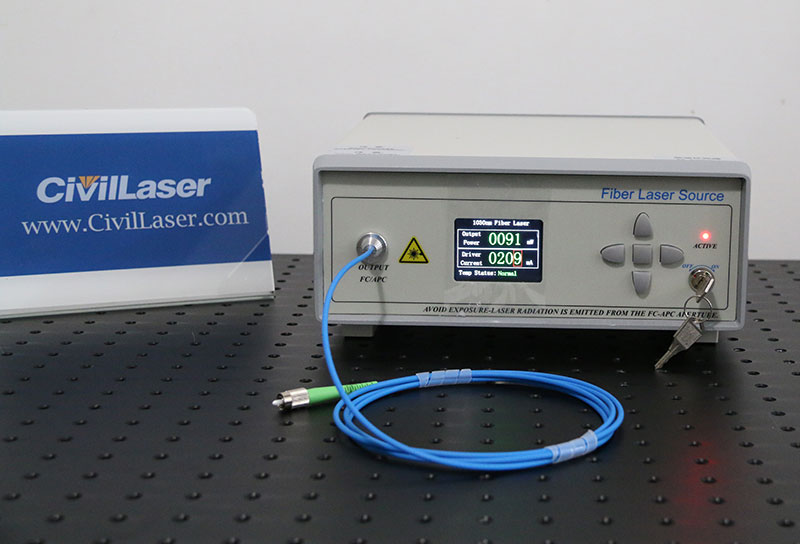

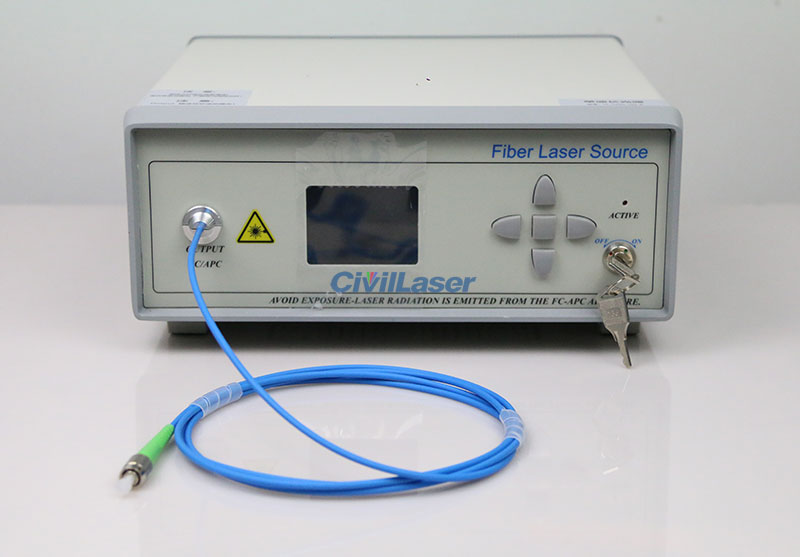

[Desktop type]
1. Output power adjustable.
2. With LCD: Display output power/Working current...
[특징]
1. High output power
2. Power and spectral stability
3. Module or desktop package
[Applications]
1. Seed light source
2. Fiber laser
3. Nonlinear optics research
[명세서]
|
Parameter
|
Unit
|
Typical value
|
Remarks
|
|
Working wavelength
|
nm
|
1030±5nm
|
|
|
Output power
|
mW
|
100mW/200mW/300mW
|
Choose
|
|
Short term stability(15 Minutes)
|
dB
|
≤ 0.02
|
|
|
Long-term stability(8 Hours)
|
dB
|
≤ 0.05
|
|
|
Fiber type
|
-
|
SM=Hi 1060
PM=PM 980
|
SM/PM choose
|
|
Fiber Interface
|
-
|
FC/APC(Default)
|
Customizable:
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/PC
5=FC/PC
|
|
Fiber length
|
M
|
1m(Default)
|
|
|
Working temperature
|
°C
|
-20 ~ +65
|
|
|
Storage temperature
|
°C
|
-40 ~ +85
|
|
|
Power supply
|
-
|
100~240V AC, <30W
|
Power supply Include
|
|
Desktop type size
|
mm
|
260(W)×280(D)×120(H)(Default)
260(W)×320(D)×120(H)
|
We send it randomly.
Please contact us if you have size requirements.
|
