635nm 100mW 단일 모드 섬유 결합 레이저 TEM00 Mode Laser

635nm 100mW 단일 모드 섬유 결합 레이저 TEM00 Mode Laser

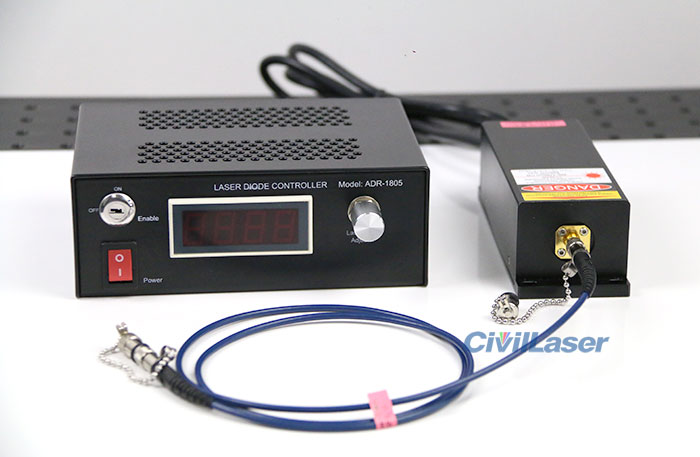

This product is for single mode fiber coupling of semiconductor laser,the stability of the output power of the fiber is good and the spot mode is TEM00 mode.The beam quality is very good, which can meet the requirement of high beam quality.
Our company produces single wavelength, polarization maintaining and multimode fiber coupled lasers at various wavelengths, as well as fiber optic coupled lasers with fiber coupled lasers.Please contact us.

Notes:
This is a custom product.If you need other output powe or have special requirements, please contact us.
리드 타임: 2~4 weeks! 맞춤형 제품 가능!

[특징]
1.High power stability(<3%)
2.Singal mode fiber coupled,fiber output.

[명세서]
파장: 635nm±5nm
출력 파워: 1~100mW
Spectral Linewidth: <2nm
섬유 유형: SM/PM (choose)
Fiber Interface: FC/PC, FC/APC, SMA905 (choose)
섬유 길이: 1m (If you need other length, please contact us.)
Polarization Ratio: >70:1 (Only for PM fiber)
Laser Head size: 35mm*35mm*102mm
작동 온도: 0°C-40°C
보관 온도: -40°C-85°C
조정: 0~10KHz TTL

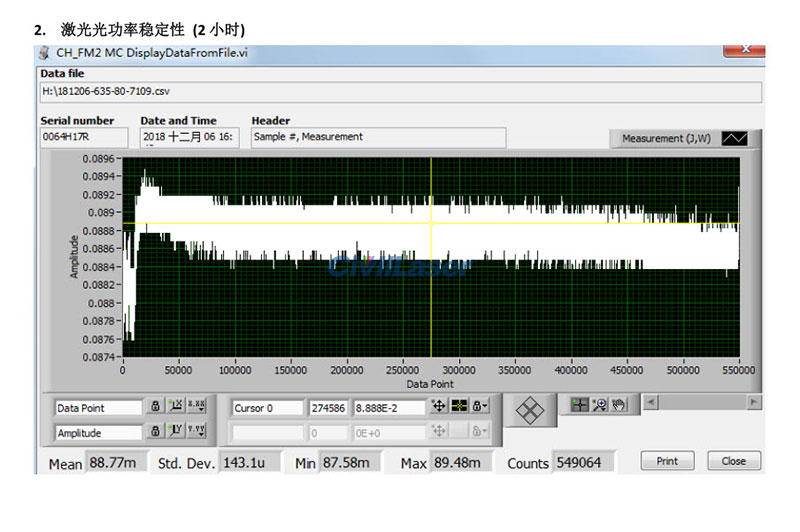

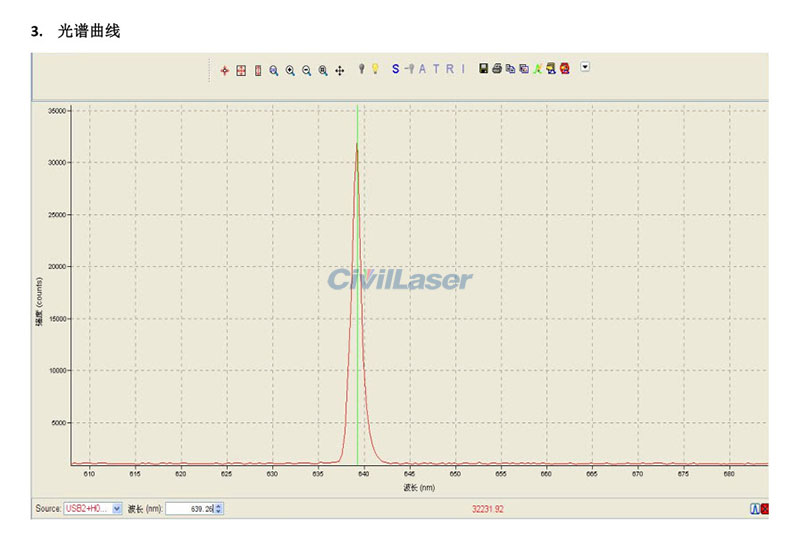

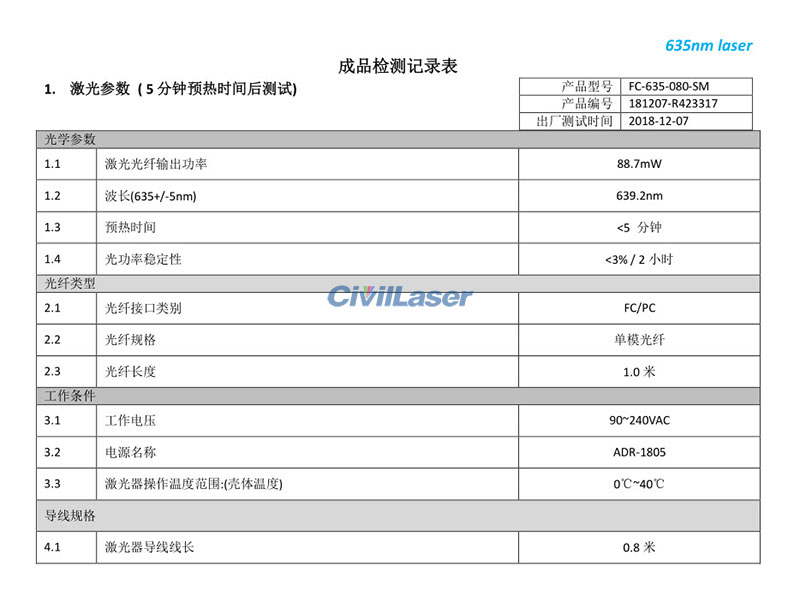

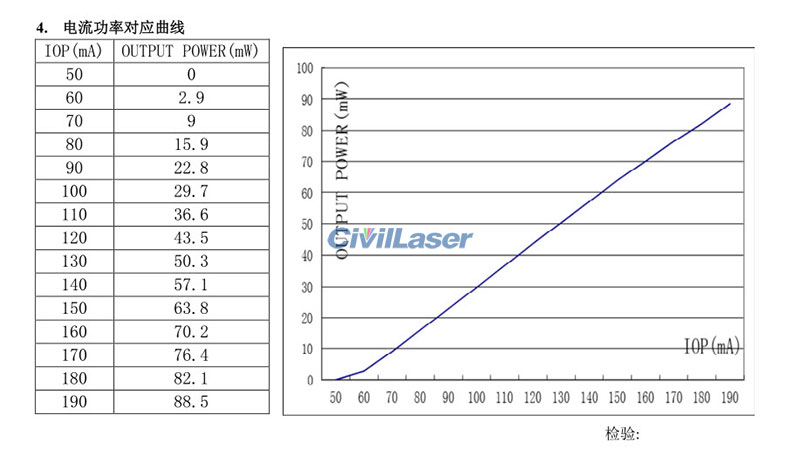

Test report reference:
