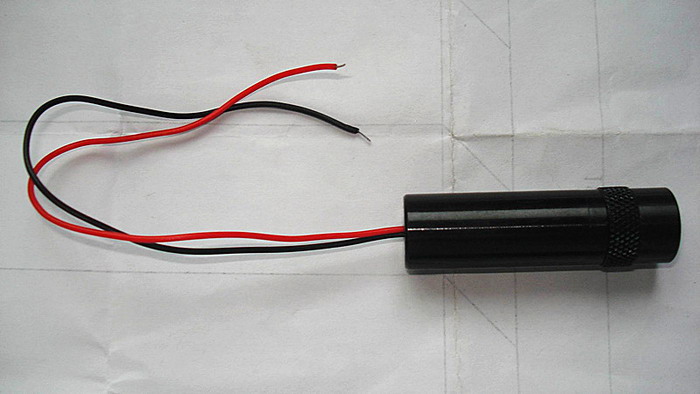

TTL sinusoidal wave modulation 780nm 5mw IR laser Module Focus Adjustable 16*55mm
SPECIFICATIONS:
이름: TTL sinusoidal wave modulation 780nm 5mw IR laser Module
출력 파장: 780nm
출력 파워: 5mW (Customize other output power)
Beam Divergence: 0.1mrad ~ 0.6mrad adjustable
Optical Systems: Optical Coated Glass
Spot Description: 1m department width <=> spot diameter Φ0.5mm (Adjustable)
조정: TTL modulation
Modulation frequency: 10Hz-100KHz
Laser type: Invisible laser, Near IR laser
Outside Color: Black
작동 전압: DC 3V ~ 5V
Laser Class: IIIB
작동 온도: -10℃~70℃
보관 온도: -40℃~80℃
크기: Φ16mm x 55 mm
Continuous working time: > 12 hours(Good heat dissipation)
보증:12 Months Factory warranty
TTL modulation Description:
1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 500KHZ;
Package includes:
1* TTL 780nm laser module
