488nm 60mw Sky Blue Laser module Adjustable focus Dot/Line/Crosshair

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:





Add to Cart:


488nm 60mw Sky Blue Laser module Adjustable focus Dot/Line/Crosshair

[Feature]
1. 488nm wavelength laser is sky blue, the light is clear and bright, soft and not dazzling;
2. Spot size/Line width adjustable from 0.4mm to several centimeters;
3. Line / cross lens angle from 5° to 120° optional;
4. Good heat dissipation, shockproof, anti falling and antistatic;
5. Intelligent driver board with imported IC;
6. High stability.

[Specification]
상품명: 488nm 레이저 모듈
파장: 488nm
출력 파워: 60mW
레이저 모양: Dot / line / crosshair (choose)
작동 전압: DC 2.8-5.2V
작동 전류: ≤180mA
크기: 12*50mm / 16*70mm / 22*110mm (선택하다)

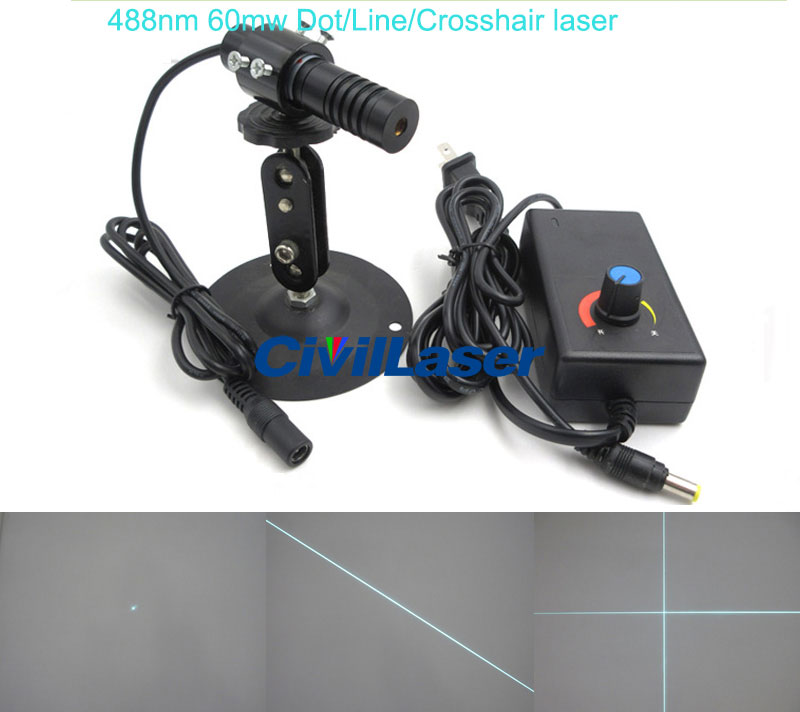

Include: Laser module + adjustable power supply + laser holder

Dot 레이저 모듈 Range
Indoor during the day: 0-500 meters
Outdoors during the day: 0-200 meters
In a dark environment: 0-1500 meters

Line 레이저 모듈 Linewidth
Indoor working environment: 8 meters
In the semi-outdoor (non-direct sunlight): 4 meters
Installation Height: 0-5 meters

Crosshair 레이저 모듈 Linewidth
Indoor working environment: 6 meters
In the semi-outdoor (non-direct sunlight): 3 meters
Installation Height: 5 meters
