685nm 60mw 빨간색 레이저 모듈 초점 조정 가능한 Dot/Line/Crosshair
[Feature]
1. 685nm is pure red light, laser light is bright and soft and not dazzling.;
2. Spot size/Line width adjustable from 0.4mm to several centimeters;
3. Line / cross lens angle from 5° to 120° optional;
4. Good heat dissipation, shockproof, anti falling and antistatic;
5. Diode Direct Light Emission, it's very stable and can be turned on 24 hours;
6. Intelligent Drive Board with Import IC;
7. High temperature and corrosion resistant DC plug line is suitable for all-weather and all-environment use.
[Specification]
상품명: 685nm 레이저 모듈
파장: 685nm
출력 파워: 60mW
레이저 모양: Dot / line / crosshair (choose)
작동 전압: DC 2.8-5.2(V)
작동 전류: <180mA

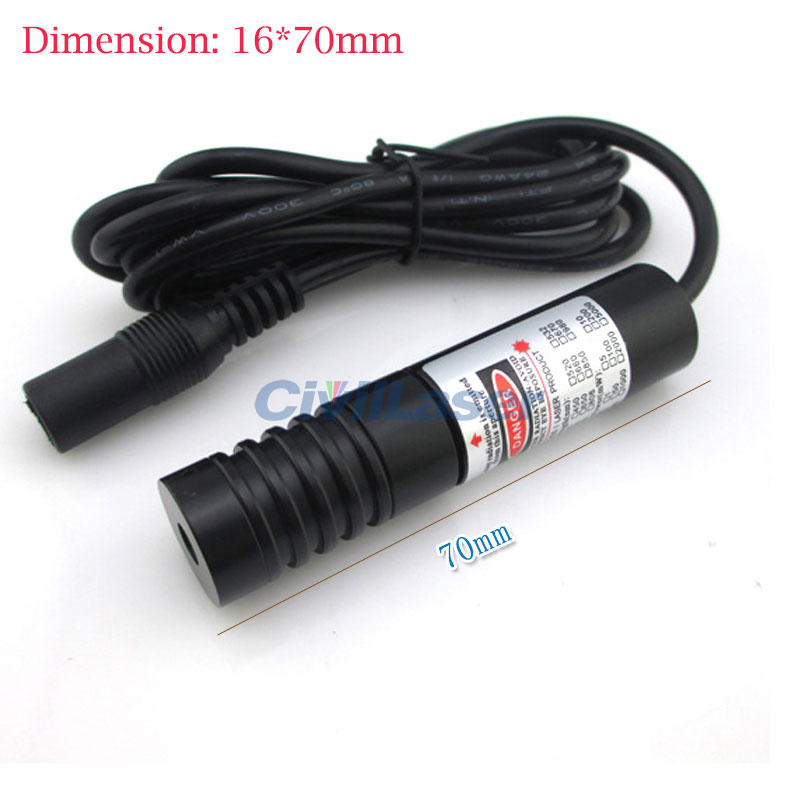

크기: 16*70 mm(Can be customized)
Include: Laser module + adjustable power supply + laser holder
Dot laser:
In the daytime indoors, laser range 0~900 meters ;
In the daytime and half outdoors, laser range 0~400 meters;
In dark environment, the laser range 0~2500 meters.
Line Shape:
The indoor use, the line length can reach 11 meters.
Cross Shape:
The indoor environment can reach 9 meters (the horizontal and vertical lines of the cross are 9 meters long, respectively).
