532nm 5mw~30mw TTL modulation 녹색 laser module Dot 16mmx70mm
This green laser module is the use of high-power infrared laser-pumped laser crystal to produce, spot round, beam divergence is small, export power from 5mW to 30mW, can be customized according to user specific purposes.
메모:
This 532nm green ttl laser module is out of stock , we use 520nm green ttl laser module instead of 532nm ttl laser module.
SPECIFICATIONS:
이름: TTL 녹색 laser module Dot
출력 파장: 532nm(out of stock) / 520nm ( instead)
출력 파워: 5mw~30mw (choose)
Threshold Current: 100mA
작동 전류: <270mA
Beam Divergence: 1.0mrad
Optical Systems: Optical Coated Glass
Spatial mode: TEM00 Continuous Wave
Spot Description: 0.5m Distance <=> Laser beam Diameter 0.5mm
조정: TTL modulation
Modulation frequency: 10Hz-1000KHz
작동 전압: DC 3V
Laser Class: IIIB
작동 온도: 10℃~35℃
보관 온도: -10℃~80℃
Warm-up time: Less than 2minutes
전원 안정성: <±10%
Outside Color: Black
크기: Φ16mmx60mm Φ16mmx70mm (choose)
보증:12 Months
Package includes:
1* 녹색 laser module

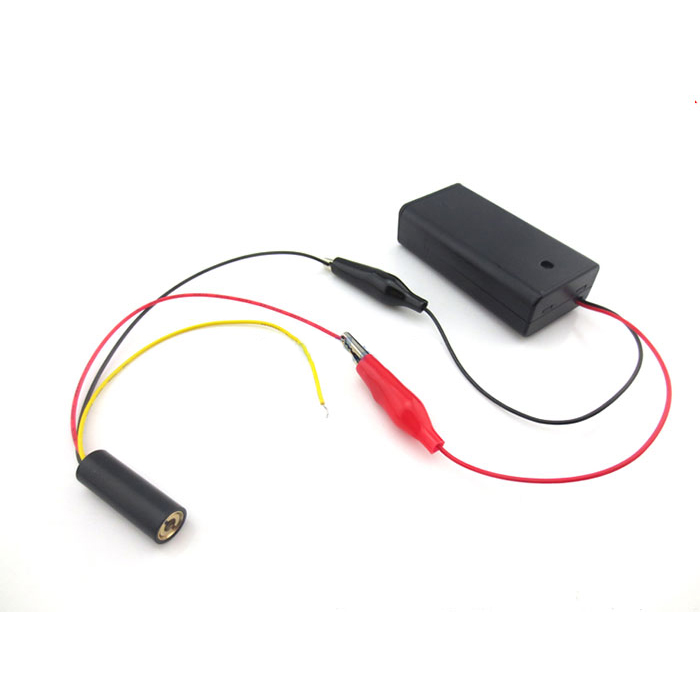

TTL modulation Description:
1. The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2. To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3. Signal input modulation frequency must be within the range 500KHZ;
Warning :
1. All of laser products are harmful for eyes,please don't aim people eyes(contain animal eyes) directly.
2. It is Industrial laser ,not toy .Keep far from Children under 18years old.
