532nm 30mw TTL modulation 녹색 laser module Dot 16mmx75mm

532nm 30mw TTL modulation 녹색 laser module Dot  16mmx75mm



This green laser module is the use of high-power infrared laser-pumped laser crystal to produce, spot round, beam divergence is small, export power from 5mW to 50mW, can be customized according to user specific purposes.







이름: TTL 녹색 laser module Dot

출력 파장: 532nm(out of stock) / 520nm

출력 파워: 25~30mw

Threshold Current: 100mA

작동 전류: <270mA

Beam Divergence: 0.6mrad

Spatial mode: TEM00 Continuous Wave

Spot Description: 8m Distance <=> Laser beam Diameter >6mm

조정: TTL modulation

Modulation frequency: 10Hz-500KHz

작동 전압: DC 3V

Laser Class: IIIB

작동 온도: 10℃~35℃

보관 온도: -10℃~80℃

Warm-up time: Less than 2minutes

전원 안정성: <±10%

Outside Color: Black

크기: Φ16mmx75mm

Continuous working time: 1~2 hours(Good heat dissipation)

보증:12 Months





1* 녹색 laser module

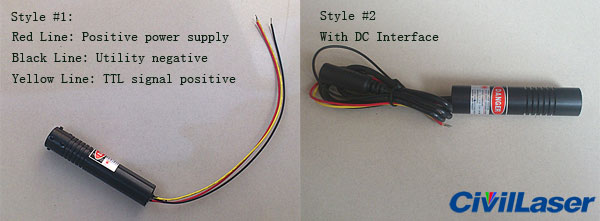

TTL modulation Description:

1. The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;

2. To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.

3. Signal input modulation frequency must be within the range 500KHZ;
