635nm 100mw 빨간색 line laser module 고성능 Super Bright Latest product
Specifications:
Model#: LM635303L2

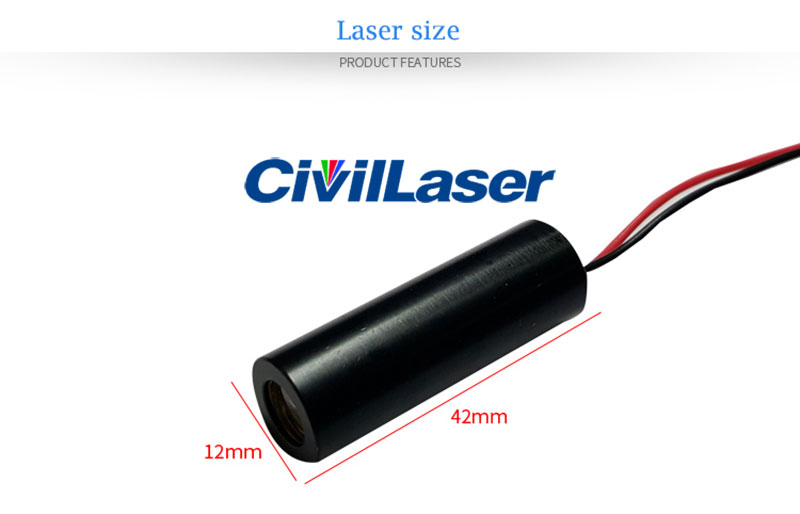

크기: 12x42mm(Can customize 12*42mm, 20*60mm)
재료: Aluminum
Service life: >10000hours
파장: 638nm±10nm
출력 파워: <100mw
Laser Range(Indoor): >50m
Linewidth at 1 metre: <3mm
Focus: Fixed
Default Fan angle: 88 degree, line length is about 2m at 1m distance
Fan angle: 5~120 degree (Default fan angle is 88 degree, leave a comment if you need other fan angle)
Lens material: Acrylic Optical Mirror(Can customize Glass Aspheric Coating)
Circuit control: ACC Constant Current Control Board
Working Voltage: DC 3V~5V(can customized 5~24V)
Working Current: <200mA
Wire: UL1571 28# 150mm 빨간색-Black wires
Working mode: CW (TTL modulation can be customized)
Working temperature: -20°C~+60°C
Storage temperature: -40°C~+85°C
