515nm/520nm 50mW~150mW Focus Adjustable Grass 녹색 레이저 모듈

515nm/520nm 50mW~150mW Focus Adjustable Grass 녹색 레이저 모듈 12V





1. Without Warm-up Time,very low power, low heat,so it can coninue work long hours in the temperature range of 0-60 degrees, but the traditional  532nm green laser module is only guaranteed to work at room temperature 20 degrees, zero temperature can not be normal startup, for example, most of such a small size can not work long hours;

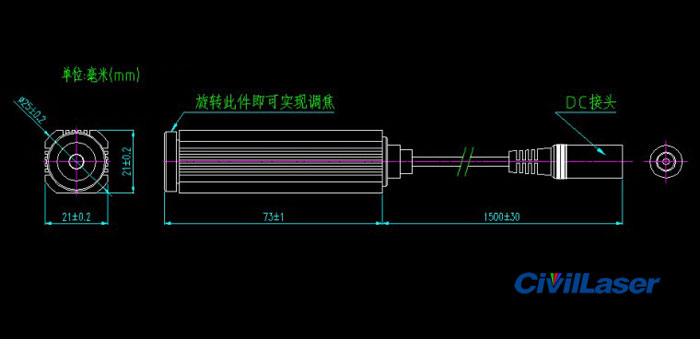

2. Shape design improvements,Taking into account the square products more suitable for precise fix on any plane, so designed as a rectangular cross-section, of course, but also retains the characteristics of concentric circles, so let alone modules and other equipment or assembly to become simple and precise.

3.  OSRAM imported semiconductor laser diode light in the form of point-like, with a range as far as three kilometers or more.

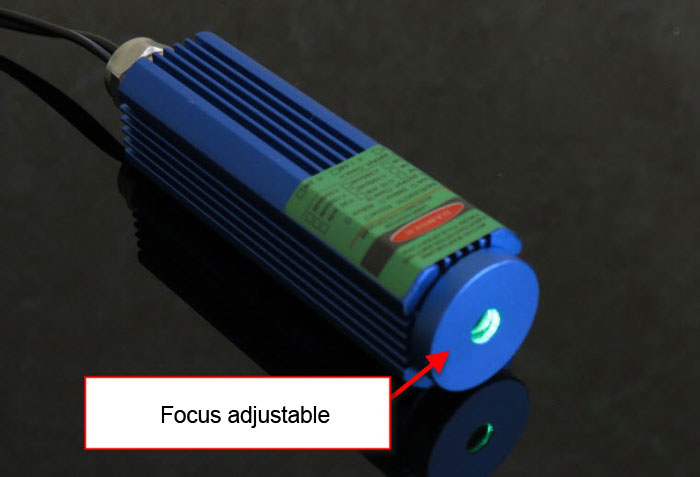

4. Using focusable design structure, you can freely adjust according to need spot size.





출력 파장: 515 nm±10nm

출력 파워: 50mW /100mW /150mW (선택하다)

레이저 모양: Dot

Beam Divergence: <1.5mard

Outside Color: Blue

재료: Aluminum Alloy

Electric-control: ACC line rod

Anti Access Protection: Yes

작동 전압: DC 5V/12V
작동 전류: <250mA

Warm-up Time: Nought

작동 온도: 0℃~60℃

보관 온도: -40℃~85℃

Structural features: laser tube + lens + cooling housing

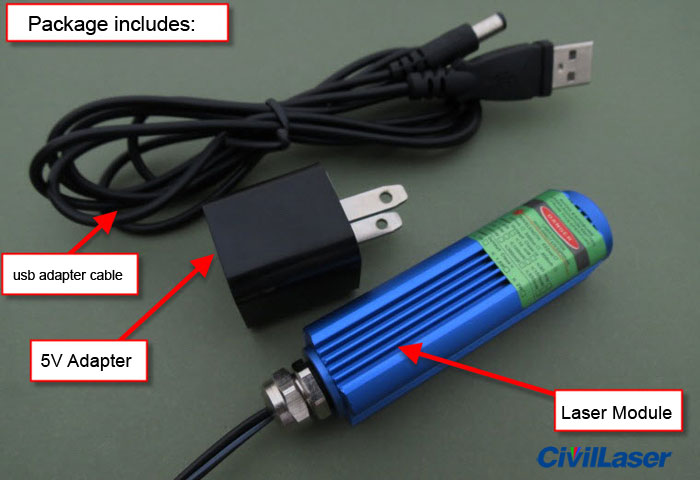

1 x 녹색 laser module

1 x Power supply
