532nm 500mw 녹색 Fiber Coupled 라만 레이저 0.1nm Narrow Linewidth
[특징]
1. Spectral linewidth <0.1nm
2. High 전원 안정성: <3%
[Application]
2. Raman spectroscopy
2. Sensing
[Lead Time]
532nm ≥200mw Raman laser: 4~6 weeks
532nm <200mW Raman laser: 3~4 weeks
[Specification]
상품명: Narrow linewidth raman laser
파장: 532nm
출력 파워: 500mW (@ Fiber output side, and 0~max power adjustable)
Optical Fiber: 100μm / NA 0.22 / SMA / 1 Meter
조정: 0~10KHz TTL
작동 온도: 0°C~45°C
보관 온도: -40°C~85°C
| Parameter |
Work condition |
Symbol |
Min. |
Typical Value |
Max. |
Unit |
| Output Power |
APC mode |
PO |
|
|
500 |
mW |
| Noise |
RMS(10Hz-100MHz) |
N |
|
|
1 |
% |
| Power Stability |
2hrs |
Ps |
|
1 |
3 |
% |

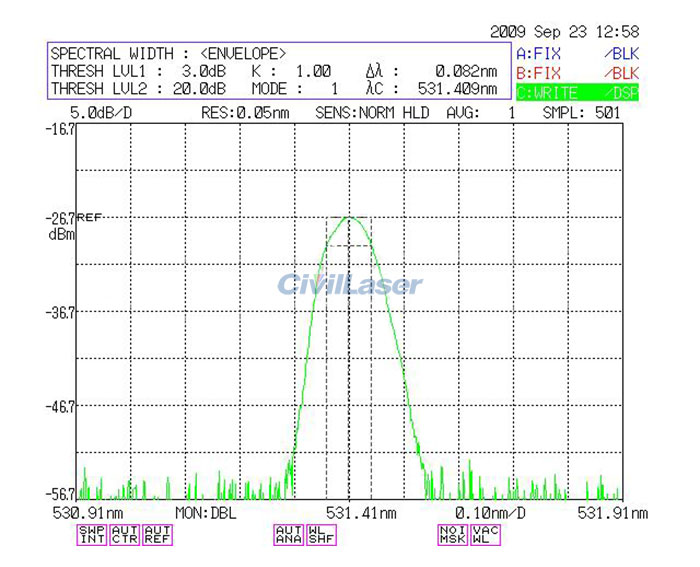

| Spectral Linewidth |
FWHM |
PO |
|
|
<0.1 |
nm |
| Spectral Stability |
λs |
PO |
|
|
<0.1 |
nm |
| Central Wavelength |
@PO |
λc |
531.5 |
532 |
532.5 |
nm |
| Service Life |
@PO |
MTBF |
5000 |
|
|
Hrs |

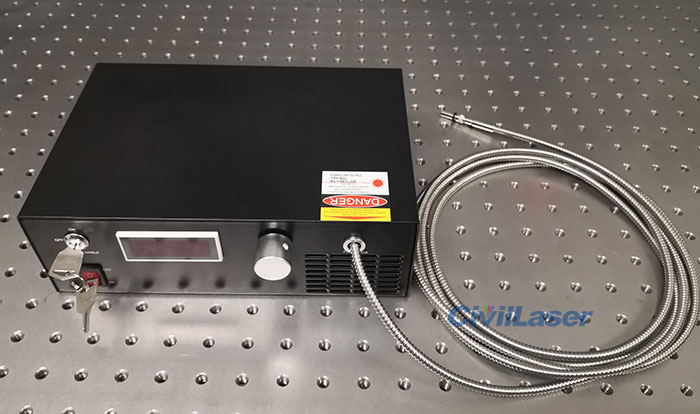

2020 New Model (For ≥500mW FC Laser):
1. All-in-one integrated machine: laser and power together, not separated.
2. Customizable software control. (Default without. Add $ 150 for software control.)

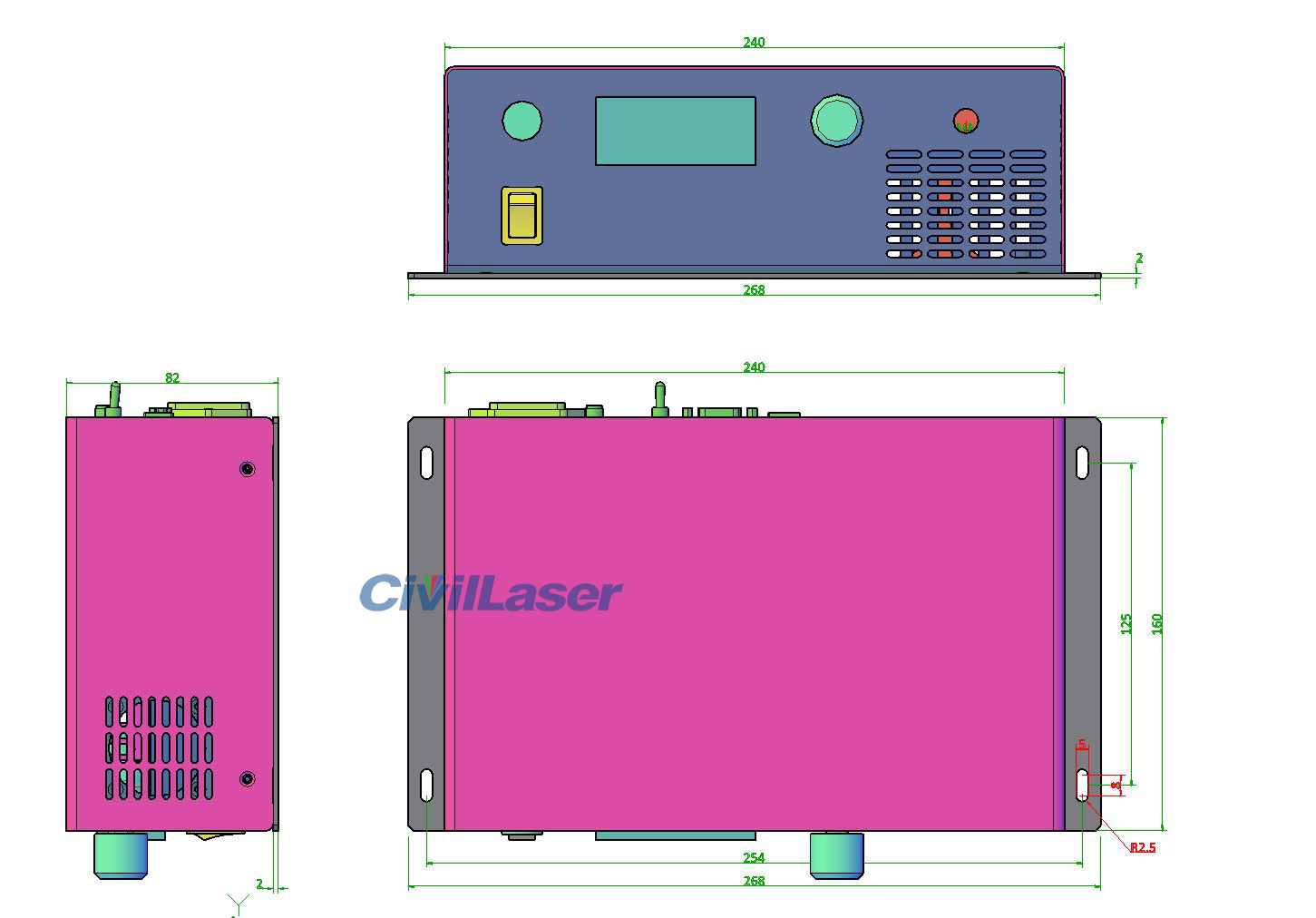

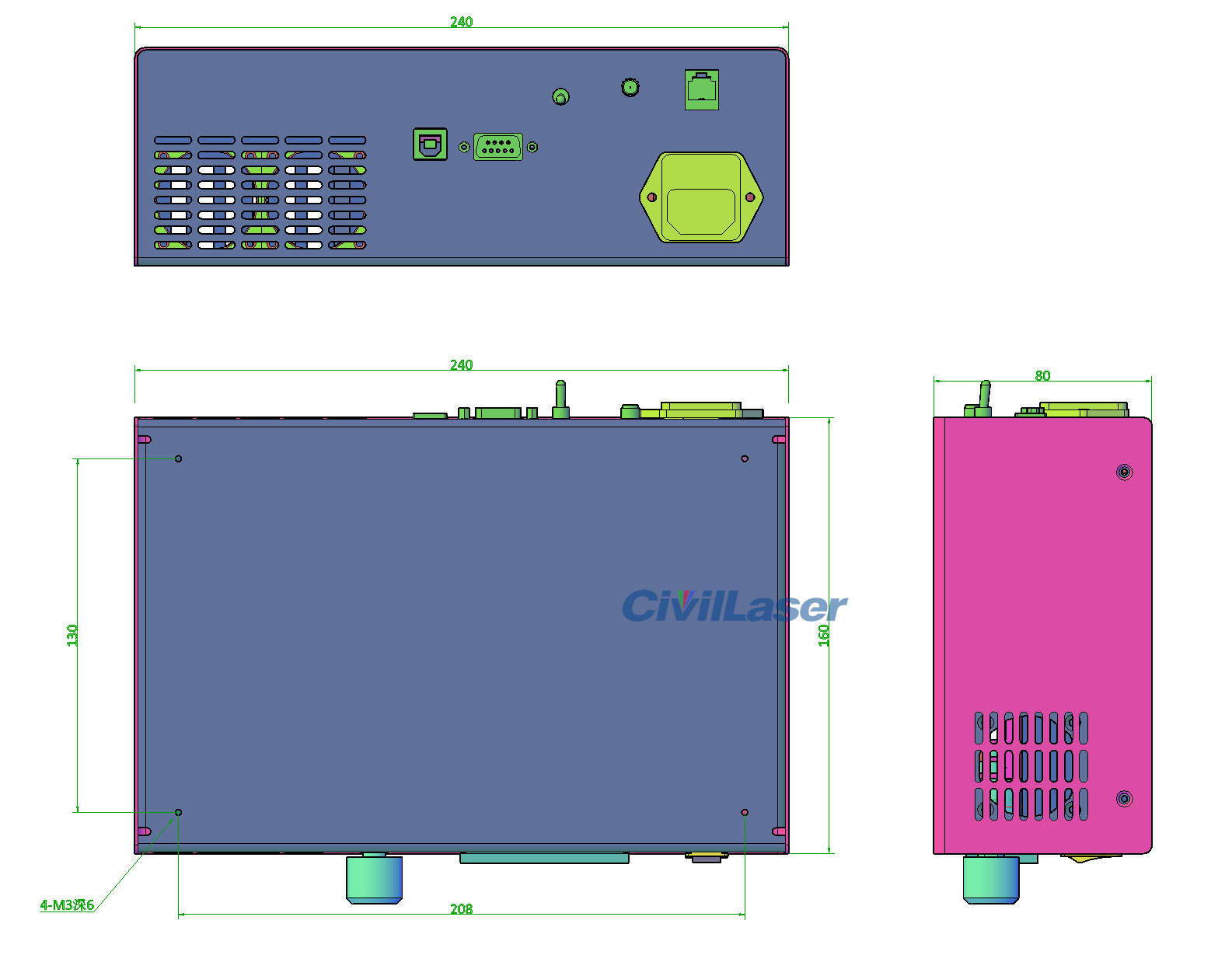

Installation size (reverse installation)
.jpg)
Installation size (forward installation, installation of an adapter plate at the bottom of the power supply)
.jpg)

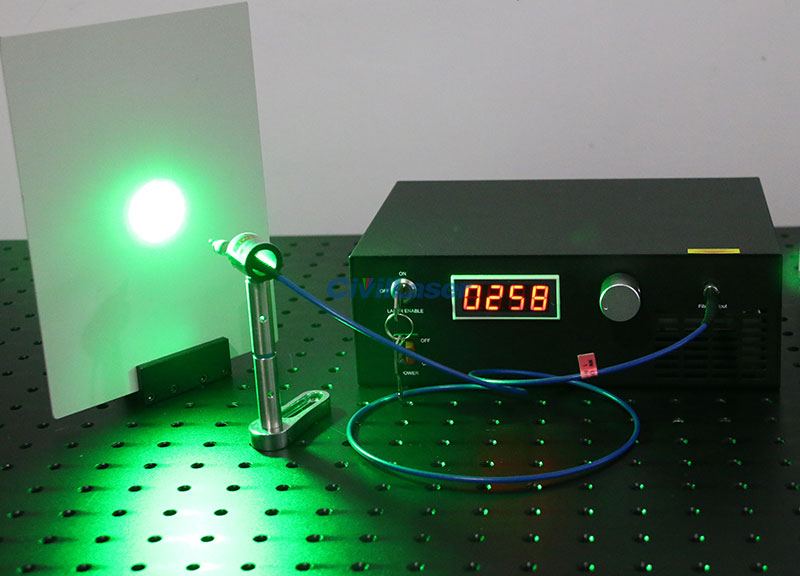

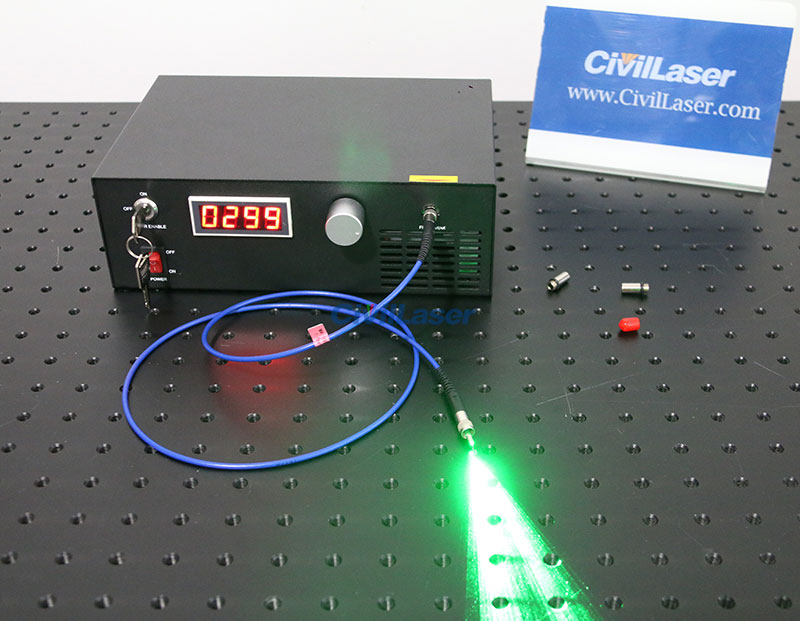

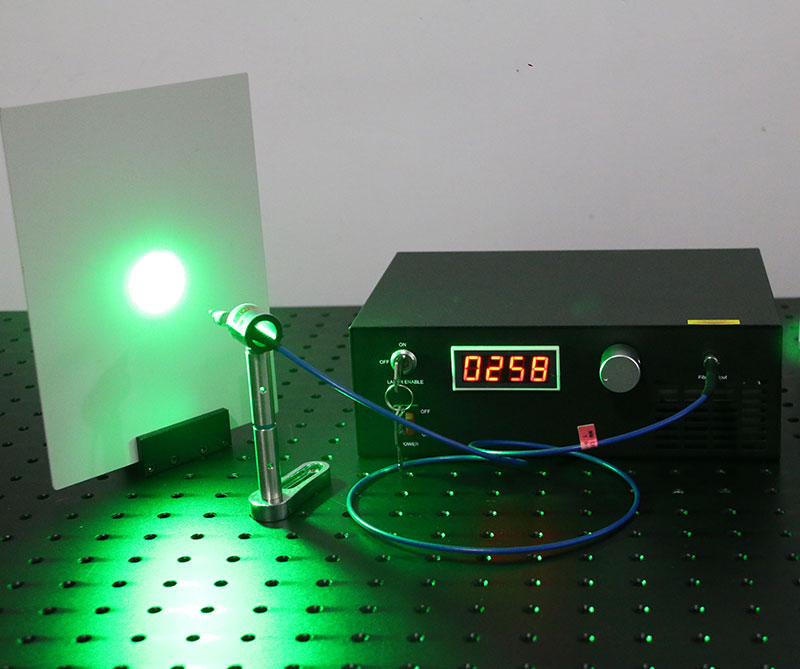

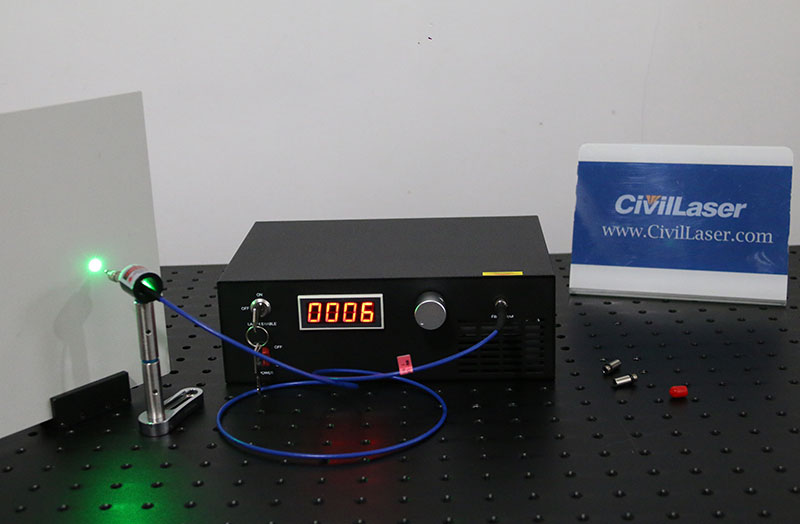

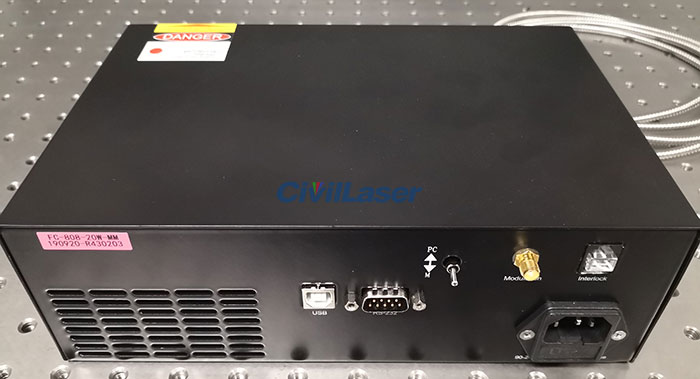

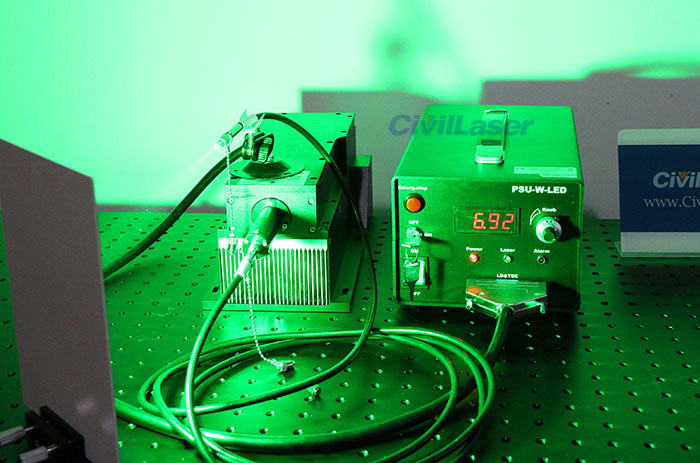

2020 new type:
.jpg)
.jpg)
.jpg)
