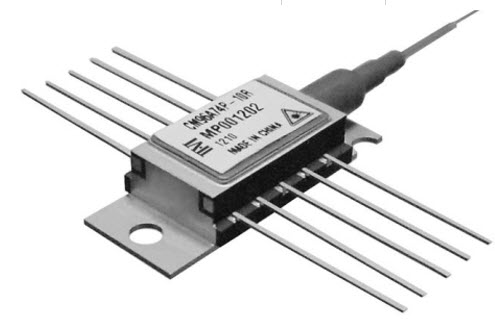

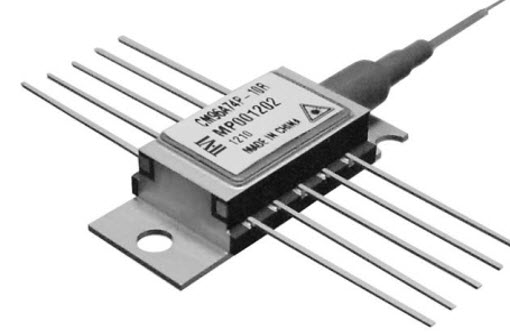

II-VI 974nm KFP 675mW DFB 레이저 다이오드 LC962UC74P-20R 14PIN with PM Fiber

974nm KFP 675mW DFB 레이저 다이오드 LC962UC74P-20R 14PIN with PM Fiber

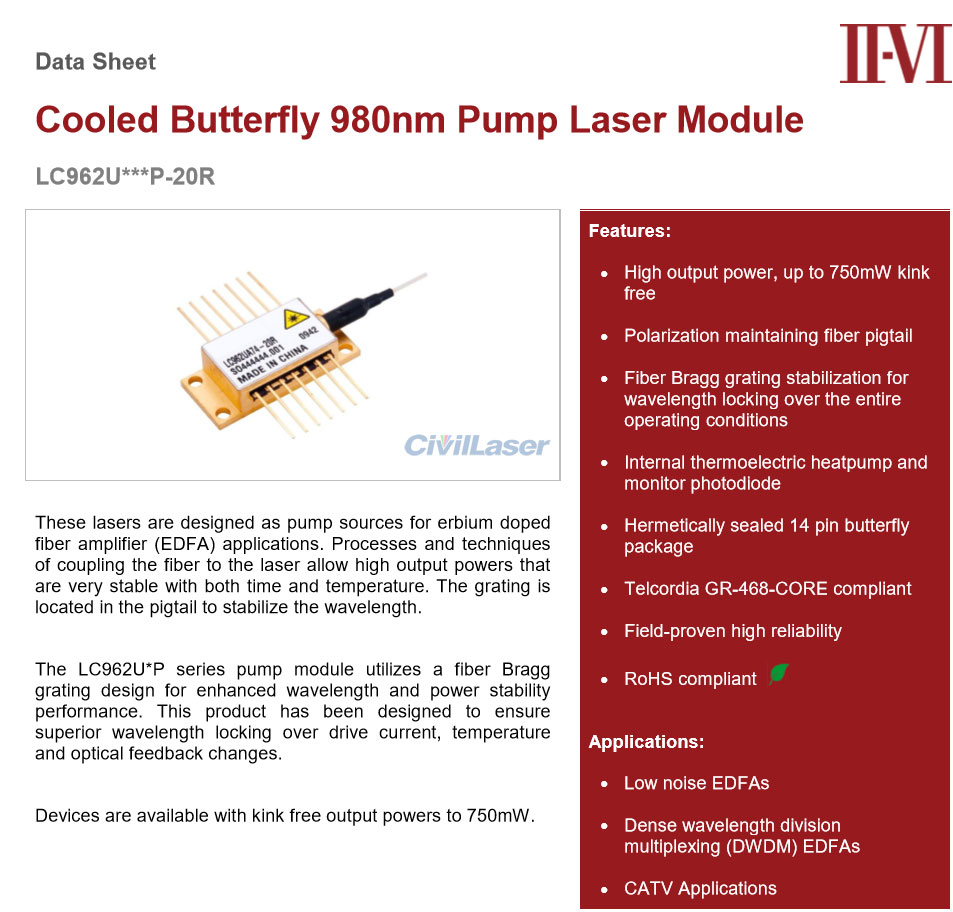

[특징]
High output power, up to 750mW kink free.

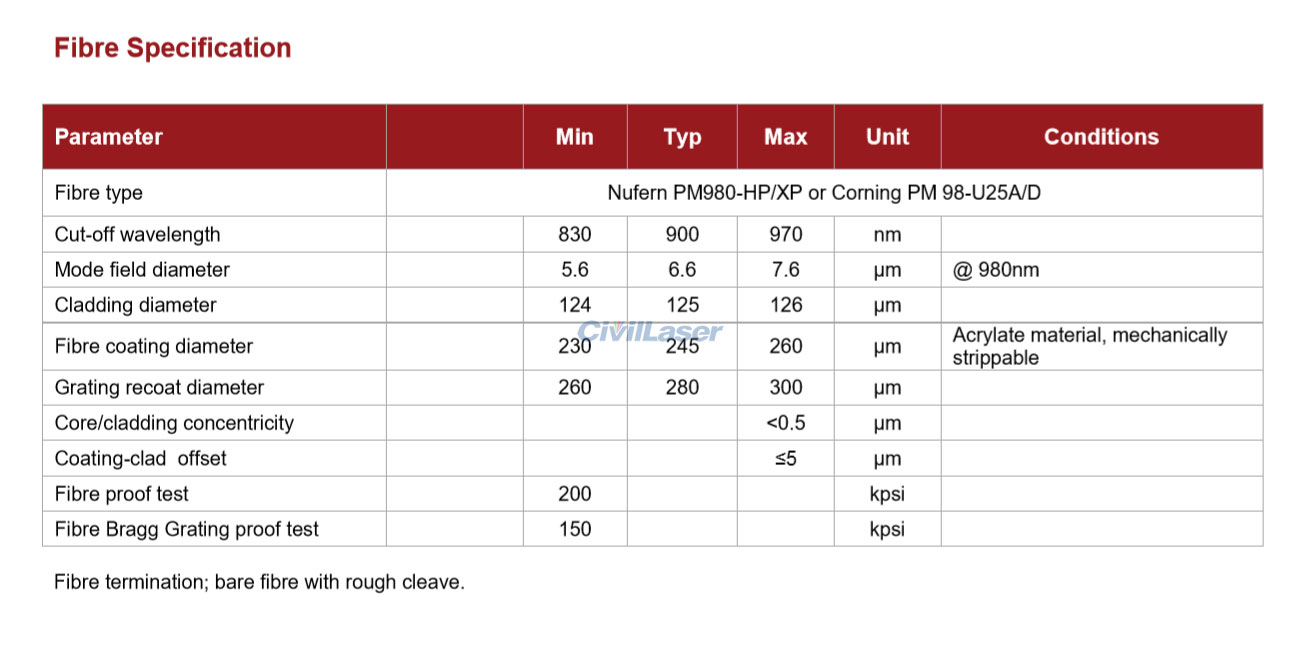

Polarization maintaining fiber pigtailed.
Fiber bragg grating stabilization for wavelength locking  over entire operating condition.
Interal thermoelectric heatpump and monitor photodiode.

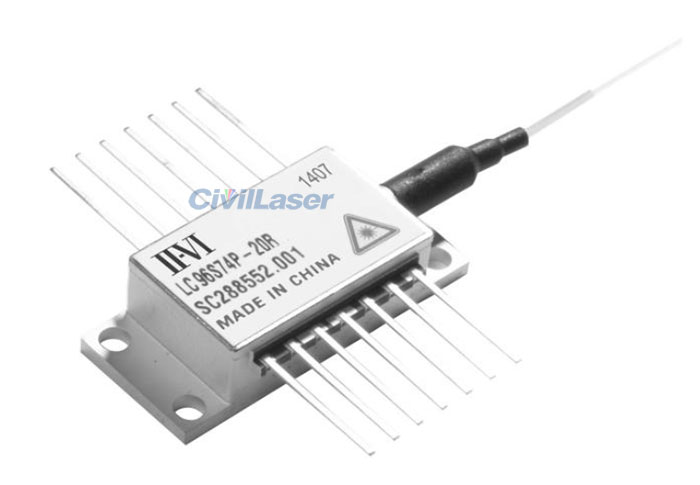

Hermetically sealed 14 pin butterfly package.
Telcordia GR-468-CORE compliant.
Filed-proven high reliablity.
RoHS compliant.

[Applicaitions]
Low noise EDFAs
Dense wavelength division Multiplexing (DWDM) EDFAs
CATV applications

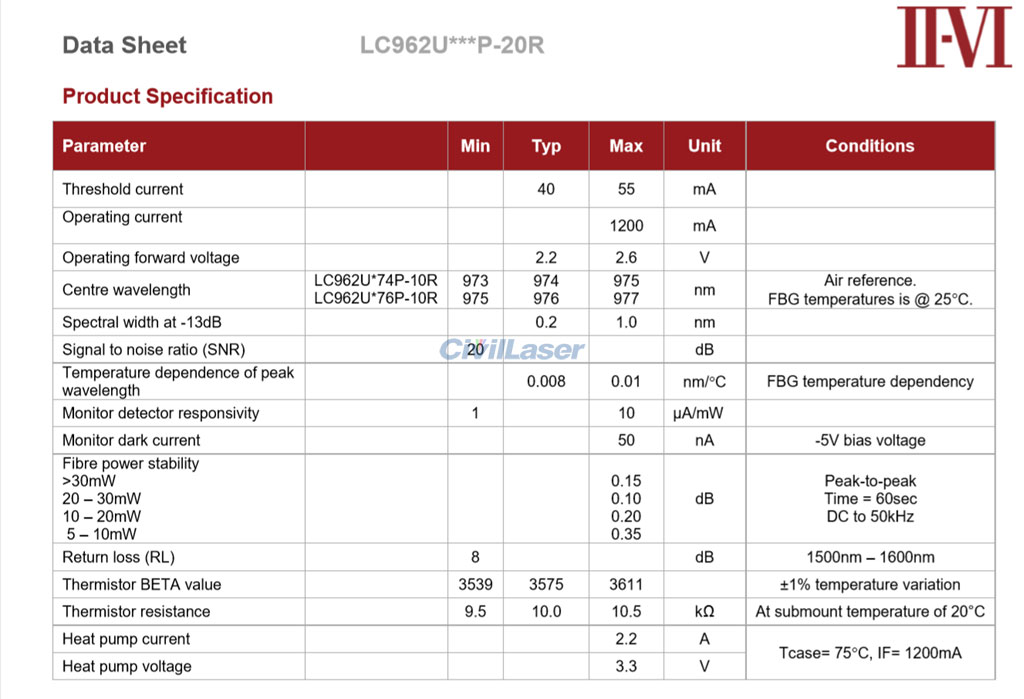

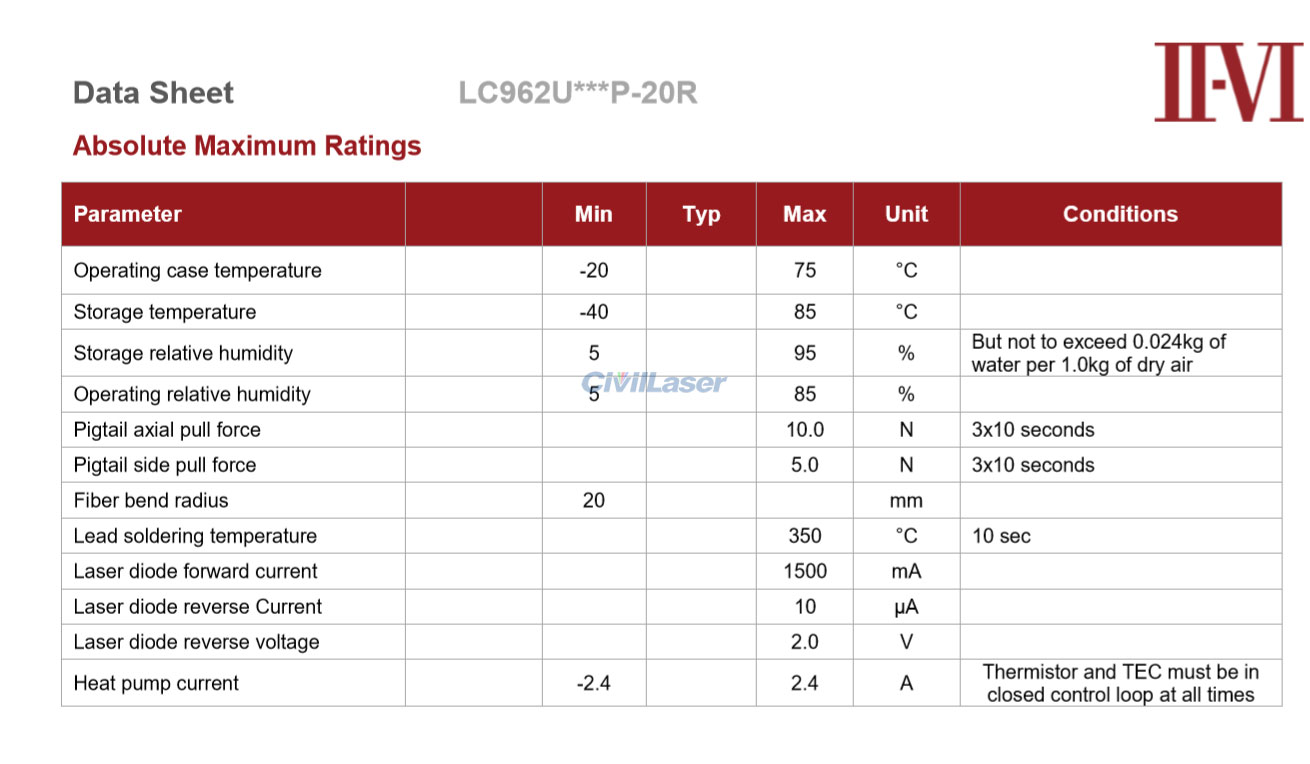

[Specification]
상품명: II-VI 974nm 675mW DFB 레이저 다이오드
Centre 파장: 974nm
Thresold Current: 40mA
작동 전류: 1200mA
Operating Forward Voltage: 2.2~2.6V
Spectral Width: 0.2@-13dB
Signal to Noise Ratio(SNR): 20dB
Operating Case Temperature: -20 ~ 75℃
보관 온도: -40 ~ 85℃
Storage Relative Humidity: 5 ~ 95%
Operating Relative Humidity: 5 ~ 85%
