520nm 135mw High power 녹색 laser module Dot/Line/Crosshair

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:







Add to Cart:


 520nm 135mw High power 녹색 laser module Dot/Line/Crosshair

Specifications:
파장: 520nm±10nm
출력 파워: <135mw

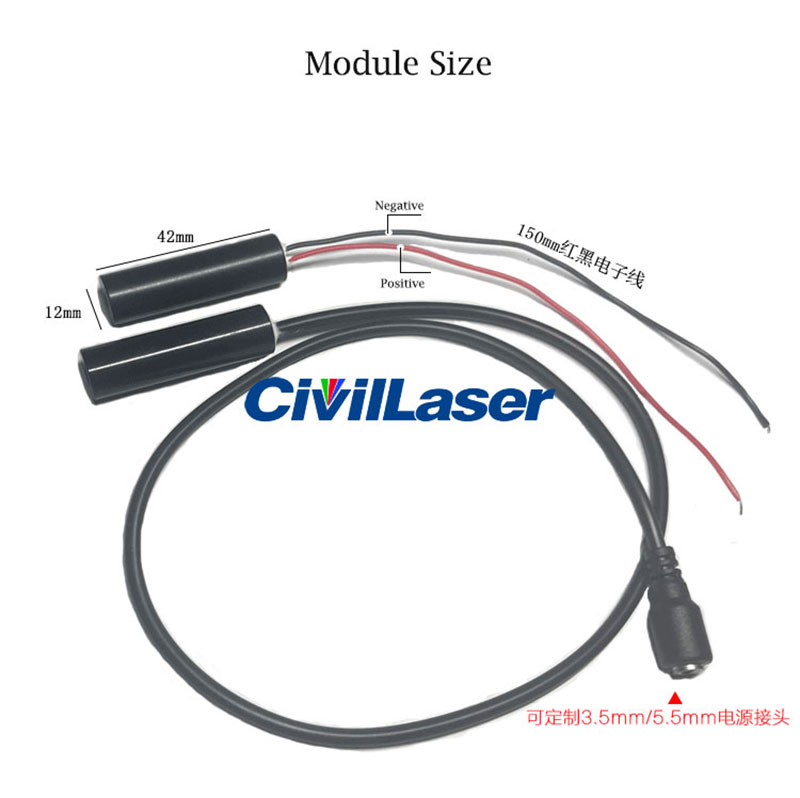

크기: 12*42mm(Other Size Can customize)
재료: Aluminum
Service life: >10000hours
Laser Range(Indoor): >60m(The higher the power, the farther the range is.)

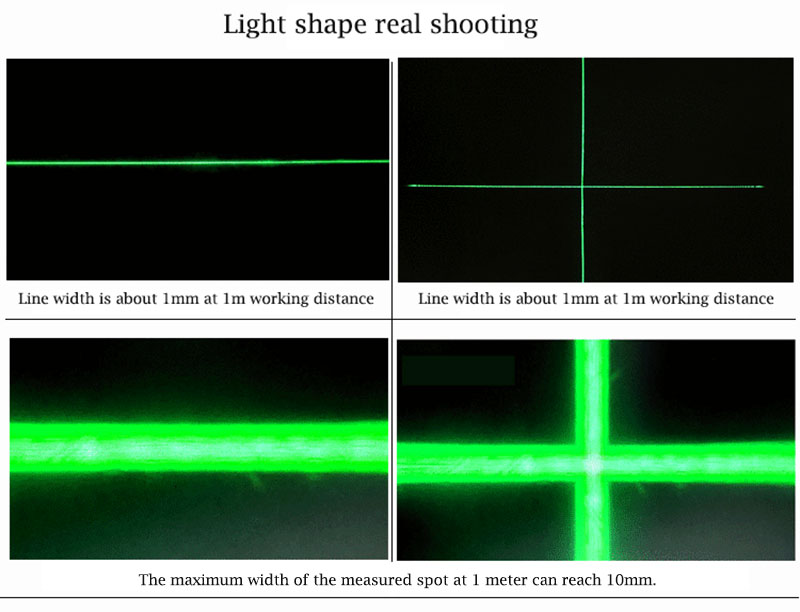

Linewidth at 1 metre: <3mm
Focus: Fixed
Fan angle: 5~120 degree(Default fan angle is 88 degree, leave a comment if you need other fan angle)
Lens material: Acrylic Optical Mirror(Can customize Glass Aspheric Coating)
Circuit control: ACC Constant Current Control Board
Fan angle: 88 degree, line length is about 2m at 1m distance
Working Voltage: DC 3V(can customized 5~24V)
Working Current: <320mA
Working mode: CW (TTL modulation can be customized)
Working temperature: -20°C~+60°C
Storage temperature: -40°C~+80°C




520nm 135mw High power 녹색 laser module
520nm 135mw High power 녹색 laser module
520nm 135mw High power 녹색 laser module
520nm 135mw High power 녹색 laser module
