1425nm 1455nm 350mW 500mW Pump 파이버 레이저 시스템 for Fiber Raman Amplifier -- Module Type
Fiber Raman amplifier uses the Raman effect in quartz fiber to provide gain to optical signals, and achieves high gain and low noise amplification of optical signals in the C or L band, which can effectively compensate for the attenuation of optical signals in long-distance optical fiber transmission. It can be used in long-distance optical transmission systems, distributed optical fiber sensing, and intensive wavelength division multiplexing optical transmission systems.
[특징]
Wide wavelength range
High gain factor
Low noise index
[Applications]
Long distance optical communication network
Optical fiber sensing
Fiber laser
[Specification]
Parameters
|
Unit
|
Typical Value
|
Remarks
|
Amplified Wavelength Range
|
nm
|
1528~1565
|
Customizable
|
Raman Gain
|
dB
|
10/20
|
Customizable
|
Gain Flatness
|
dB
|
<2
|
|
Pump Wavelength
|
nm
|
1425±3 / 1455±3
|
Choose
|
Pump Power
|
mW
|
350 / 500
|
Choose
|
Pump Light Polarization(DOP)
|
--
|
5% (Type),10%(Max)
|
|
Polarization Dependent Gain(PDG)
|
dB
|
<0.2
|
|
Polarization Mode Dispersion(PMD)
|
ps
|
<0.5
|
|
Input/Output Isolation
|
dB
|
>35
|
|
Noise Figure
|
dB
|
0
|
|
Pigtail Fiber Type
|
--
|
SMF-28e single-mode fiber
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
Work Mode
|
--
|
Automatic Pump Power Control (APPC)
|
|
Electrical and environmental parameters
|

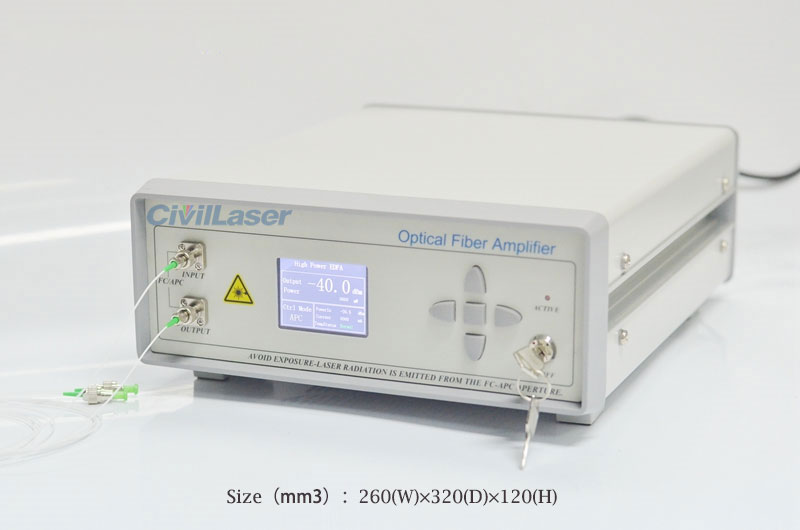

DeskTop Type
|
Module Type
(Current product)
|
Control method
|
Button
|
RS232 Serial communication
|
Communication interface
|
DB25 Female(Default not include)
|
DB25 Female
|
Power supply
|
100~240V AC, <45W
|
5V DC, <30W
|
Size
|
260(W)×280(D)×120(H)mm
|
220(W)×130(D)×30(H)mm
|
Operating temperature range
|
-5~+55°C
|
Operating humidity range
|
0~70%
|
