1310nm 10mW 20mW Singlemode 파이버 레이저 시스템 데스크탑 유형

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:







Add to Cart:


1310nm 10mW 20mW Singlemode 파이버 레이저 시스템 Desktop Type

1310nm single-wavelength laser light source uses DFB semiconductor laser chip, single-mode fiber output, professionally designed drive circuit and TEC control to ensure the safe and stable operation of the laser, can provide desktop or modular packaging.

[특징]
Power and spectral stability
Narrow spectral line width
Single mode or PM output fiber optional

[Applications]
Optical fiber sensing
Fiber laser
Optical device testing

[Specification]

Parameters

Unit

Typical Value

Remarks

Working Wavelength

nm

1310±2

Customizable

Spectral Linewidth

MHz

≤ 3



Sideband Suppression Ratio

dB

>50



Output Power

mW

10/20

Choose

Short-term Stability (15 minutes)

dB

≤ ±0.02



Long-term Stability (8 hours)

dB

≤ ±0.05



Pigtail Fiber Type

--

SMF-28e/PM1550

Choose

Fiber Interface Type

--

FC/APC







Electrical and environmental parameters

DeskTop Type
(Current product)

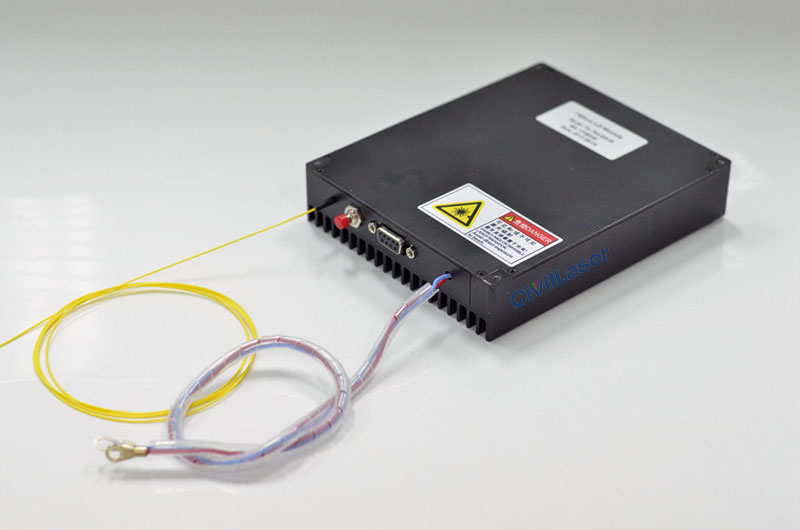

Module Type

Control method

Button

RS232 Serial communication

Communication interface

DB9 Female(Default not include)

DB9 Female

Power supply

100~240V AC, <30W

5V DC, <15W

Size

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+55°C

Operating humidity range

0~70%




1310nm single mode fiber laser

1310nm single mode fiber laser
