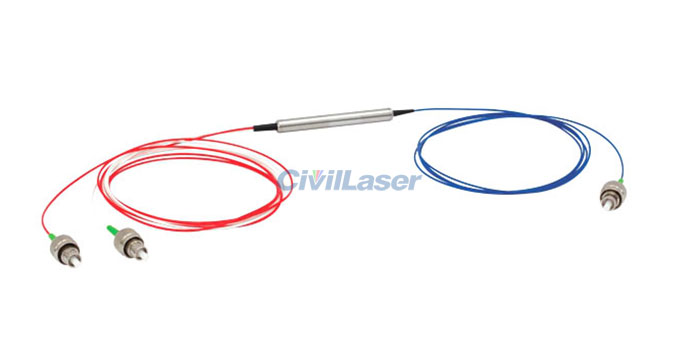

PM Fiber Optical Circulator 1310nm 1550nm 500mW Withstand Power

Parameters

Unit

Biaxial

Single Axis

Single and Double Stage Type

--

Single-stage

Single-stage

Port Type

--

3

3

4

Working Wavelength

nm

1310, 1550

1310, 1550

Spectral Bandwidth

nm

±30

±30

Typical Insertion Loss

dB

0.6

0.7

1.1

Max. Insertion Loss

dB

0.8

0.9

1.3

Typical Isolation

dB

50

46

Min. Isolation

dB

40

40

Polarization Extinction Ratio (Single axis only)

dB

18

22

Crosstalk

dB

50

50

Return Loss

dB

50

50

Withstand Power (Continuous light)

mW

500

Pull Test

N

5

Fiber Type

--

PM Panda fiber

Operating Temperature

°C

-5~+65

Storage Temperature

°C

-40~+85
