639nm 640nm 20mW 빨간색 Laser HL6360MG 레이저 다이오드

639nm 640nm 20mW 빨간색 Laser HL6360MG 레이저 다이오드

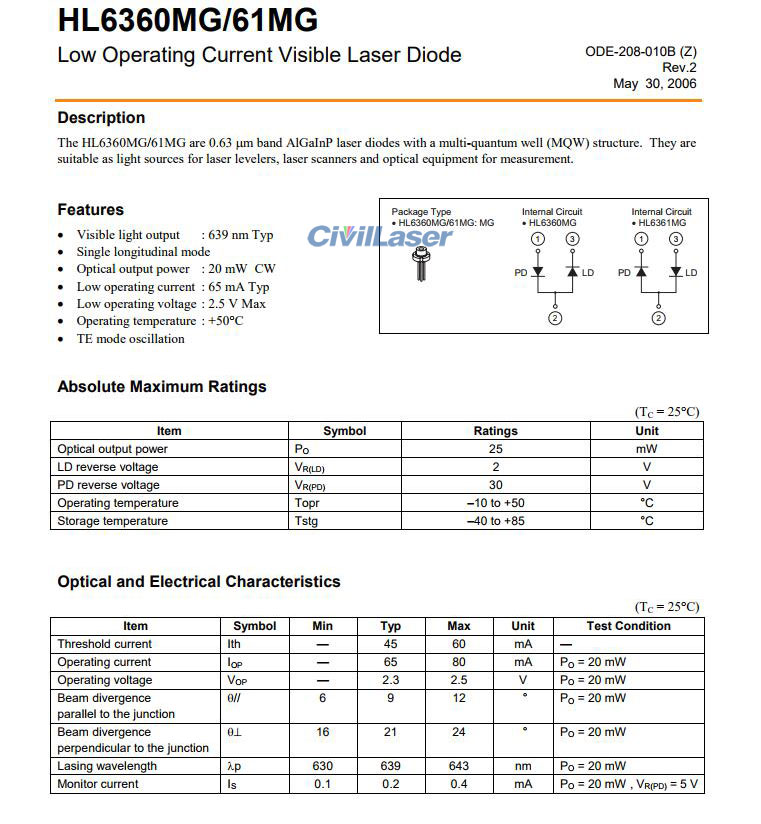

The HL6360MG/61MG are 0.63 µm band AlGaInP laser diodes with a multi-quantum well (MQW) structure. They are suitable as light sources for laser levelers, laser scanners and optical equipment for measurement.

[특징]
1. Visible light output : 639 nm Typ
2. Single longitudinal mode
3. Optical output power : 20 mW CW
4. Low operating current : 65 mA Typ
5. Low operating voltage : 2.5 V Max
6. Operating temperature : +50°C
7. TE mode oscillation

[Specification]
상품명: 레이저 다이오드
Product Model: HL6360MG
파장: 639nm
Optical 출력 파워: 25mW
LD Reverse Voltage: 2V
PD Reverse Voltage: 30V
작동 온도: -10~50°C
보관 온도: -40~85°C
