1060/1310/1550nm Fiber Optic Collimator Can be Customized

Specification:

Parameter Unit Value Note
Working Wavelength nm 1060/1310/1550 Other wavelength optional
Operating Band Width nm 1260~1620 Wider operating band width available upon request
Lens Type N/A C-lens / G-lens
Fiber Type N/A SMF-28e+ Other fiber is optional
Working Distance mm 5.5 +/- 0.5 (Standard) Customizable
Insertion Loss dB 0.15 (Typ.); 0.20 (Max.) For a pair of collimators spaced at working distance
Return Loss dB 60
Beam Spot Diameter mm 0.45 (Typ.); 0.50 (Max.) 2w diameter (at 1/e2 intensity) measured at beam waist; Customizable
Maximum Optical Power W 1；5；10 High-power available upon request
Storage Temperature ℃ -40 ~ 85
Operating Temperature ℃ -5 ~ 70

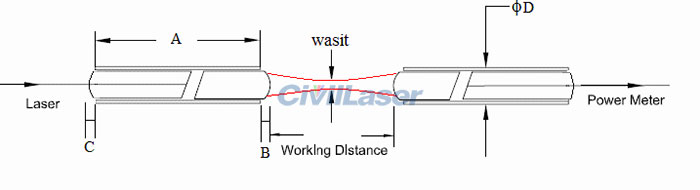

Dimension (ФD x A)A mm Ф 3.20 × 11 (with metal tube) Customizable
Ф2.78 × 9 (with glass tube)
Lens Chip (size B) mm 1.0~2.0 Customizable
Pigtail Chip (size C) mm 1.0~2.0 Customizable

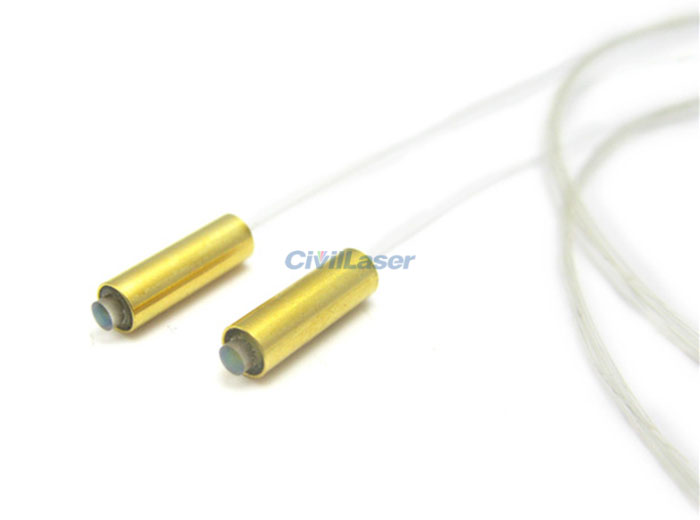

fiber collimator

fiber collimator

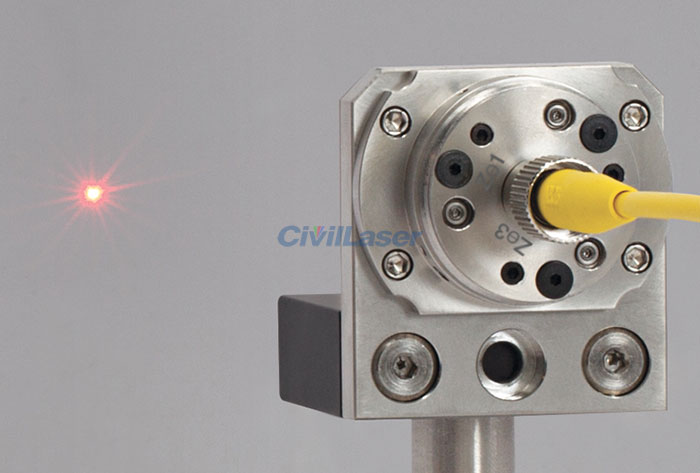

fiber collimator

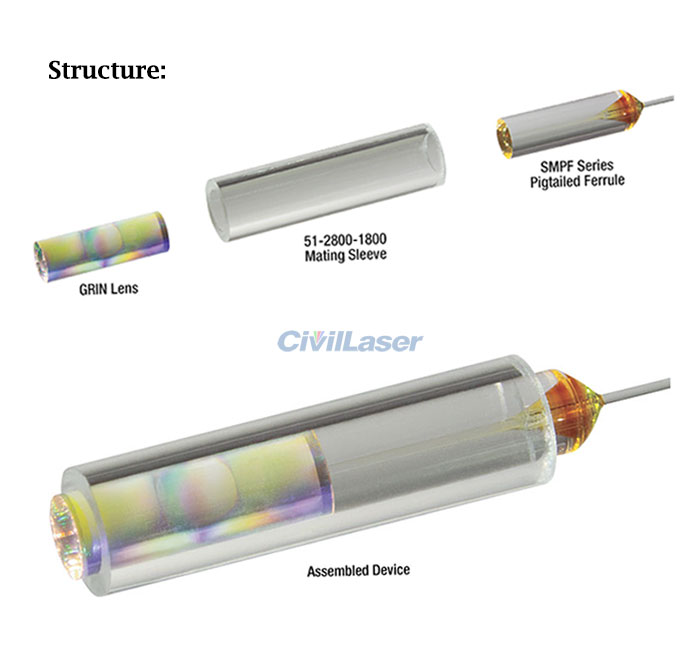

fiber collimator

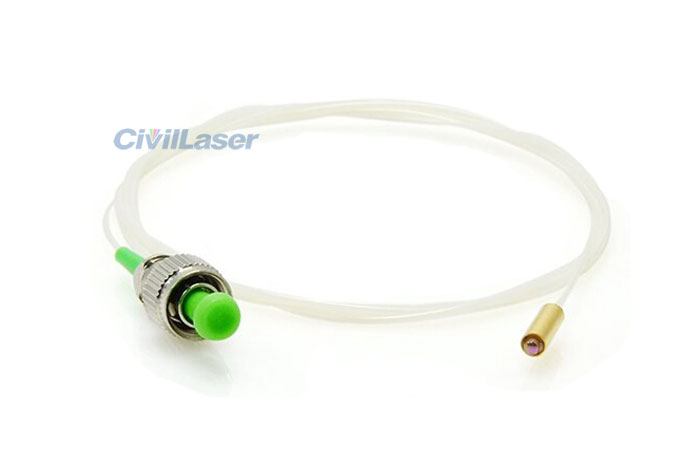

fiber collimator
