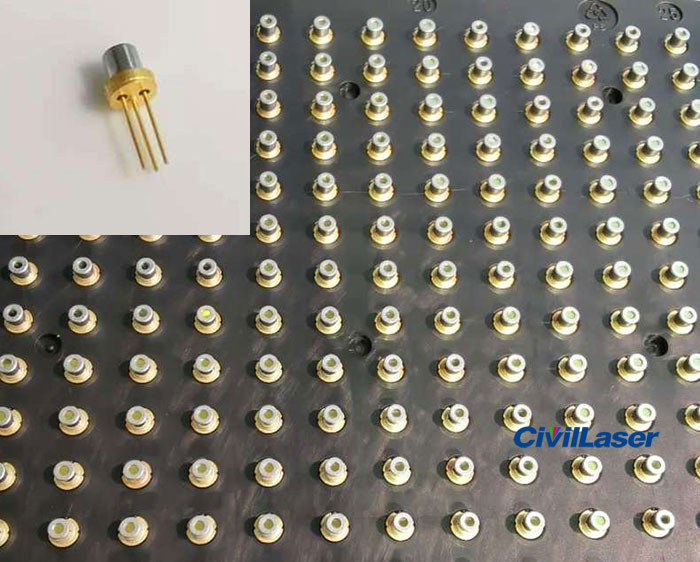

Sharp GH04P25A4G2 레이저 다이오드 405nm 200mW Singlemode Laser T033 Package

Sharp GH04P25A4G2 레이저 다이오드 405nm 200mW Singlemode Laser T033 Package

[Specification]
상품명: Laser diode
파장: 405nm
출력 파워: CW 200mW Max 400mW
작동 전류: Max 260mA
작동 전압: 5V
Package Type: T033(3.3mm)
작동 온도: +10℃~+70℃
보관 온도: -40℃~+85℃
Working Life: 10000hrs

Note: This component is sensitive to static electricity. Do not touch the laser diode directly with your hands without anti-static measures. In addition, this diode must have a qualified drive circuit to work properly. The voltage of different power is the same, but the working current is different. The circuit is on the tube. The driving current needs to be controlled within a safe range, otherwise it will affect the life.
