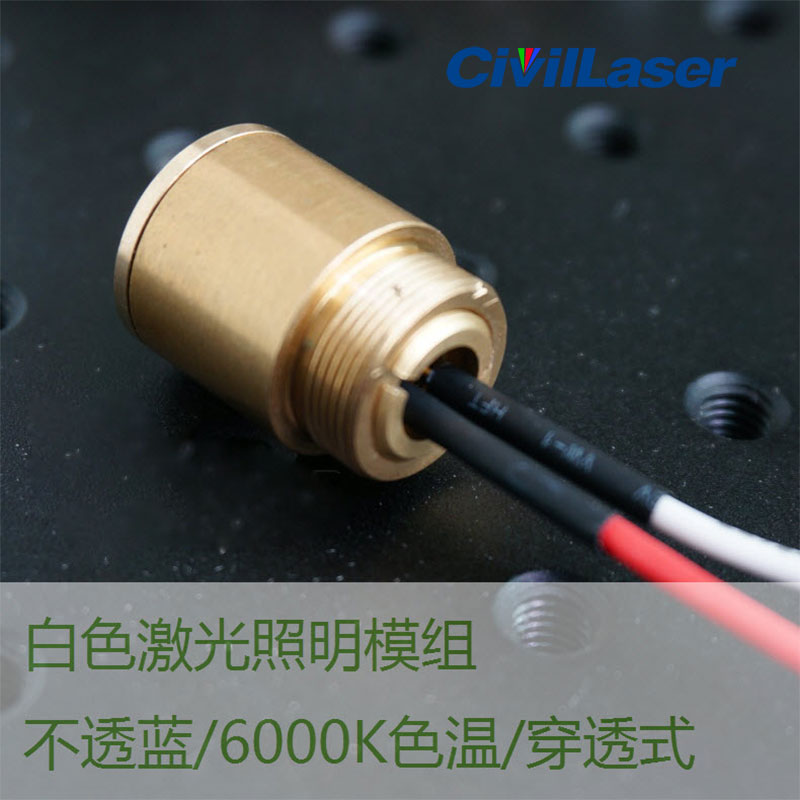

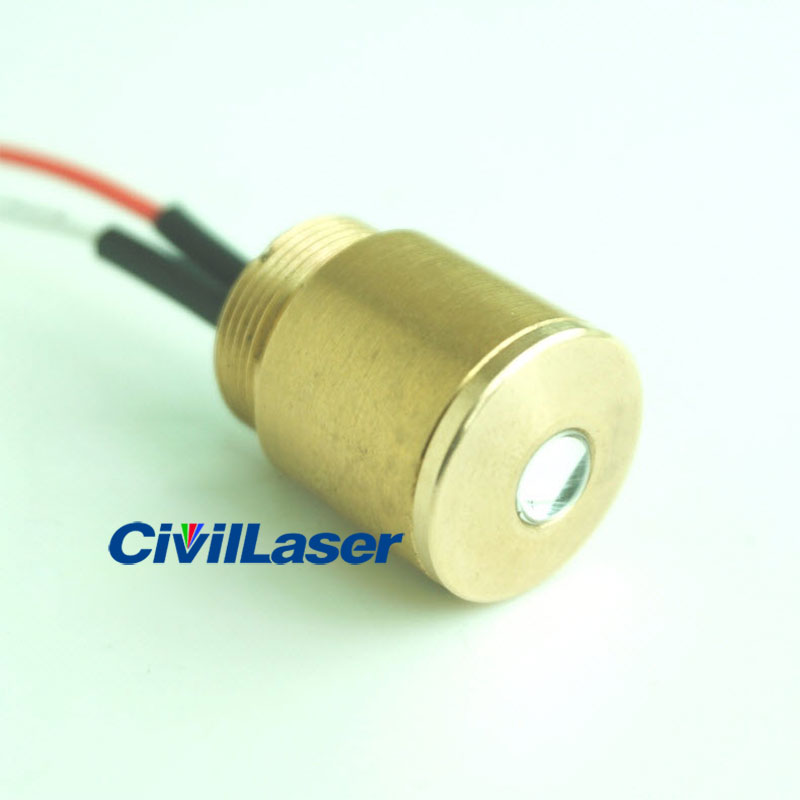

White laser light flashlight module Ceramic fluorescence Excite white light Penetrating type

White laser light flashlight module Ceramic fluorescence Excite white light Penetrating type

Product principle:
By using blue laser diode and fluorescent ceramic plate, the white light with wide spectrum is excited, which keeps the high collimation and penetration of laser. Widely used in automobile driving beam and special lighting.

[명세서]
크기: diameter 17.5x20.5mm
Appearance material: H62 brass
Laser parameters: 4.75w 455nm

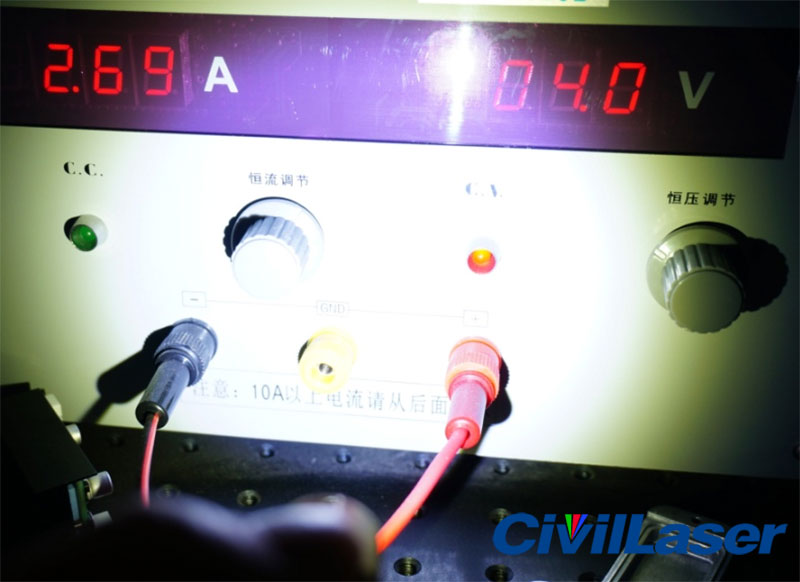

Working voltage: 4V
Working current: 2.5A
Product color temperature: 4500-6200k optional
Structure principle: monochromatic blue laser directly penetrates the fluorescent film
Diffusion angle: 120 degrees
Luminous flux: 500-560lm
