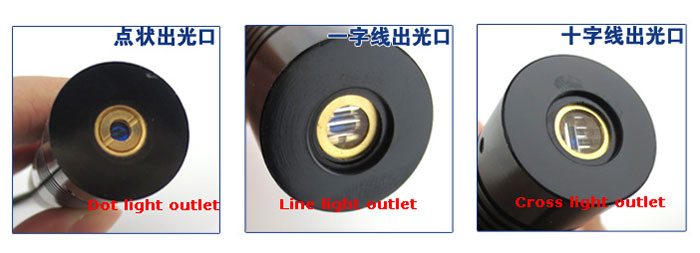

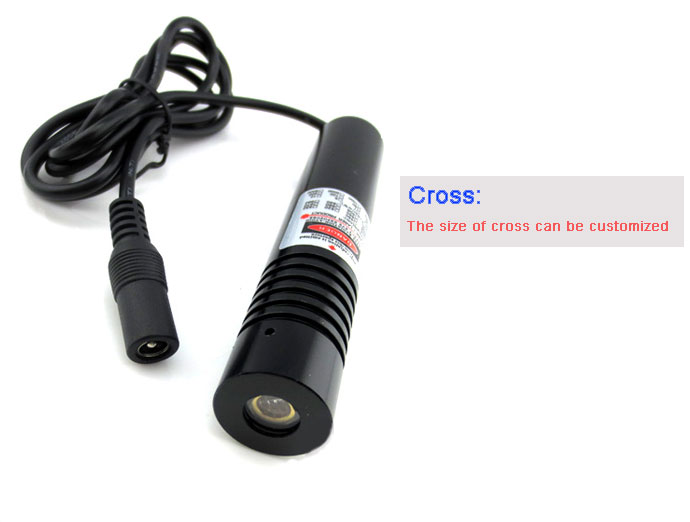

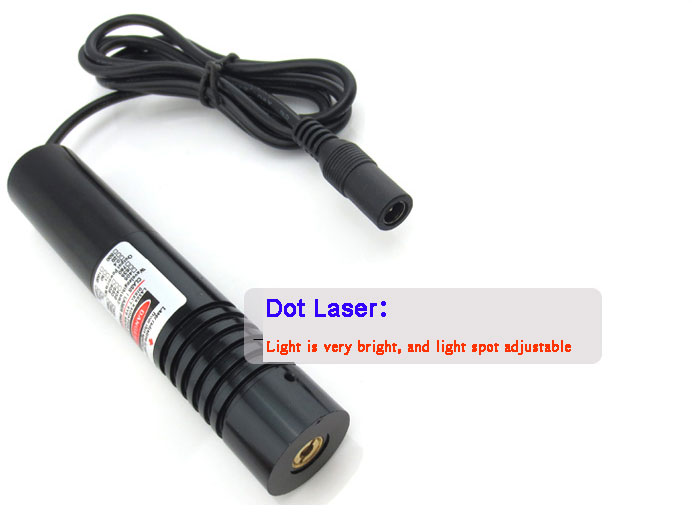

635nm 20mW 30mW 레드레이저 모듈 점/ 선/ 십자선 DOT/LINE/CROSS

Starting at: $79.00

Please Choose:





Add to Cart:


635nm 20mW 30mW 레드레이저 모듈 점/ 선/ 십자선 DOT/LINE/CROSS
[상품상세정보]
상품 명칭:  635nm 20mw 30mW Red laser module Dot/Line/Crosshair
파장: 635nm
출력: 20mw or 30mW
출력형태: Dot
레이저 유형: Visible laser, Red color
외부 색: Black

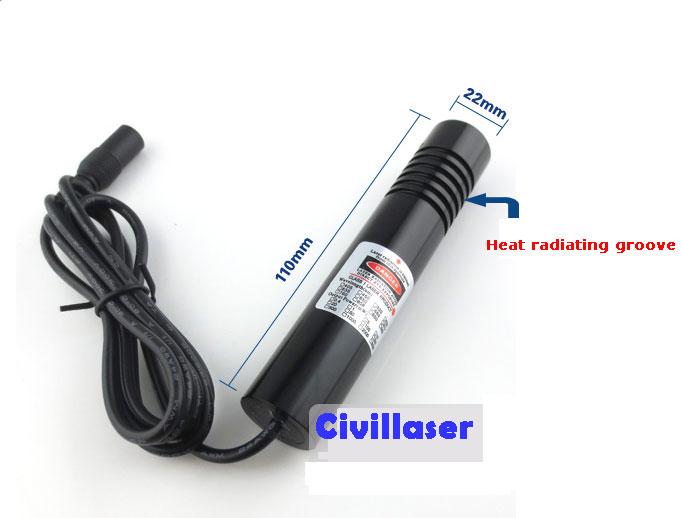

크기: Φ22*110mm
Current: <150mA
입력전압:  DC 2.8V-5V (Power need to be purchased separately)
작동온도: -10℃~40℃
보관온도: -40℃~80℃

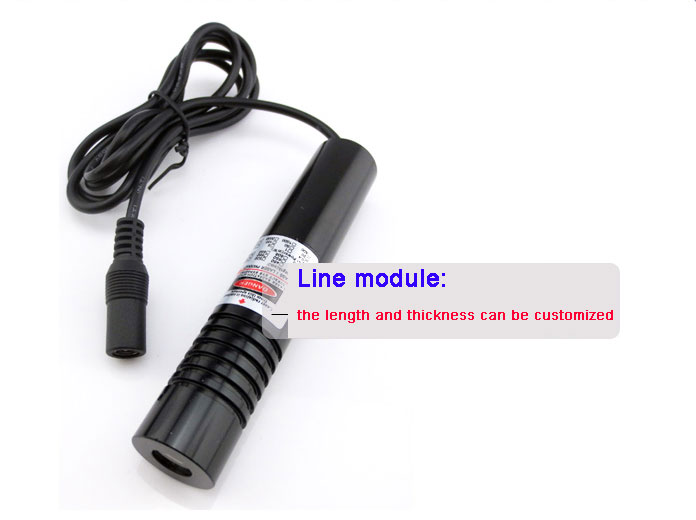

선폭: can be customized
보증 기간: 12 Months Factory warranty

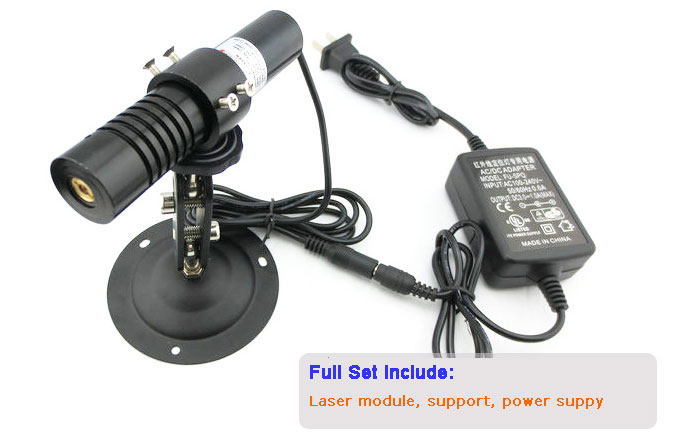

[상품 포함]
1* Red laser module
1* Laser module holder
1* Power supply

This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidative blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
