850nm 1000mw/1W Infrared/IR laser diode T018(5.6mm)

850nm 1000mw/1W Infrared/IR laser diode T018(5.6mm)

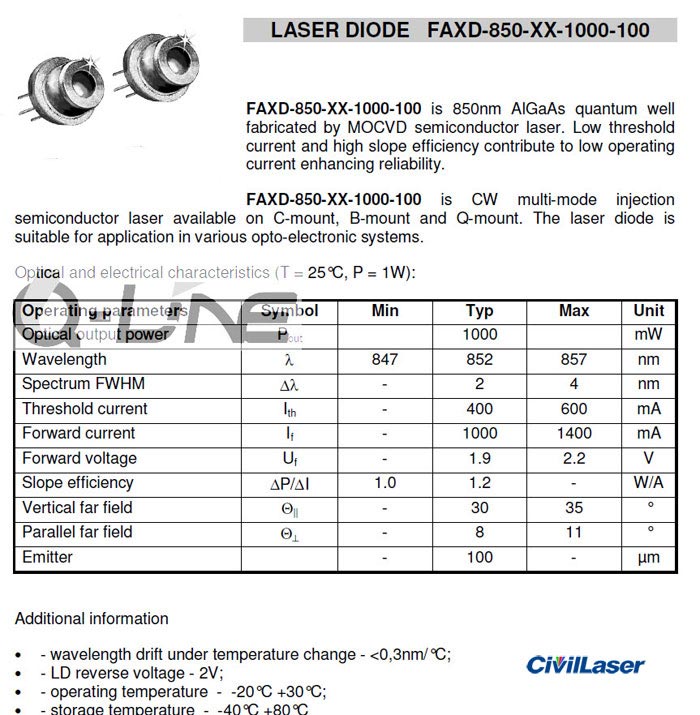

[명세서]
이름: 레이저 다이오드
출력 파장: 850nm
Output power: 1000mW CW

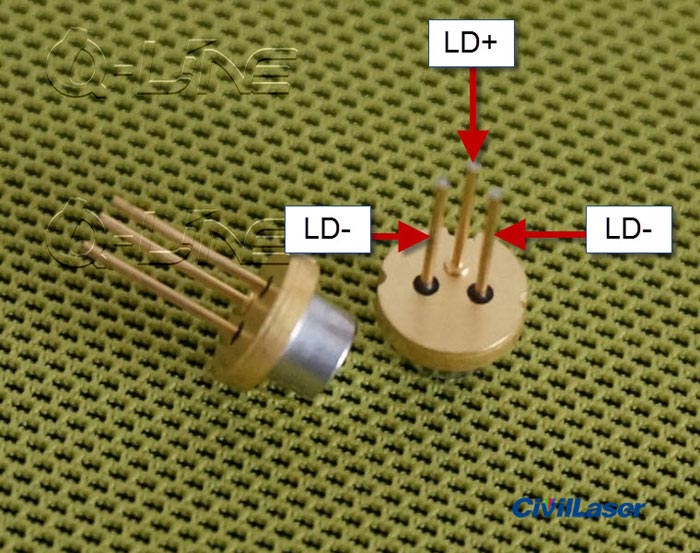

Package Type: TO-18 ( Φ5.6mm)
Place of production: Japan
Working life: >10,000 hours


메모:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
