405nm 200mW Adjustable focus blue violet laser module 3~5V

405nm 200mW Adjustable focus blue violet laser module 3~5V

[명세서]
Product size: L29mm*W29mm*H33mm
Wire size: length 100 ± 10 mm
Wire material: high and low temperature resistant silica gel wire
Output wavelength: 405nm
Output power: 185-210mw
Cooling mode: aluminum radiator
Spot size: focus adjustable
Working characteristics: continuous working
Shell material: Aluminum
Circuit control: constant current
Reverse connection protection: include, red is positive, white is negative, reverse connection is not working
Working voltage: DC = 3~5V(over voltage will cause instantaneous damage to circuit and module)
Working current: I < 260ma
Preheating time: None
Working temperature: - 10℃ ~ + 40℃
Storage temperature: - 10 ℃ ~ + 40 ℃

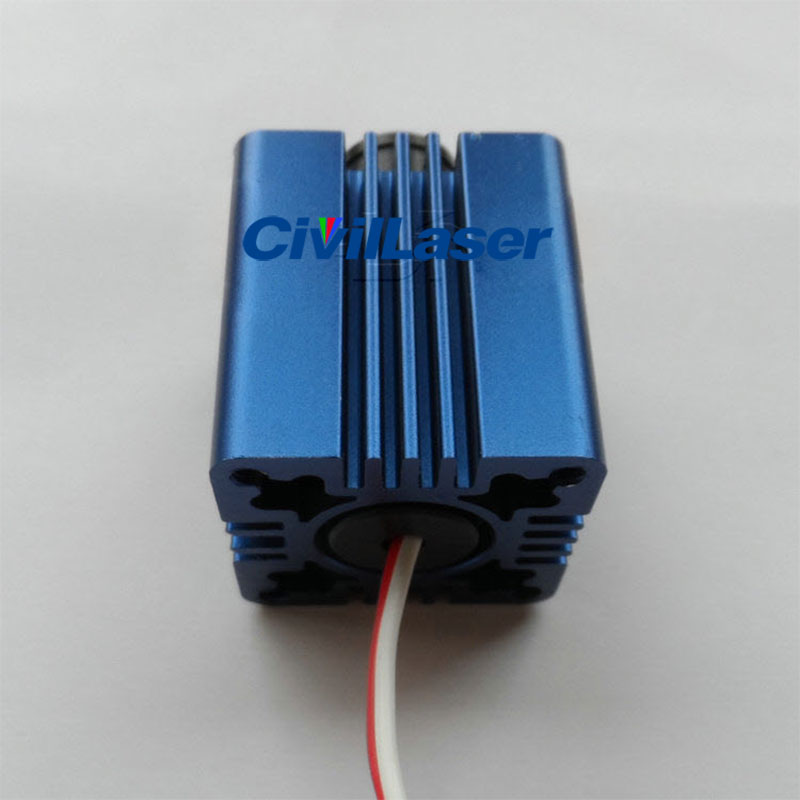

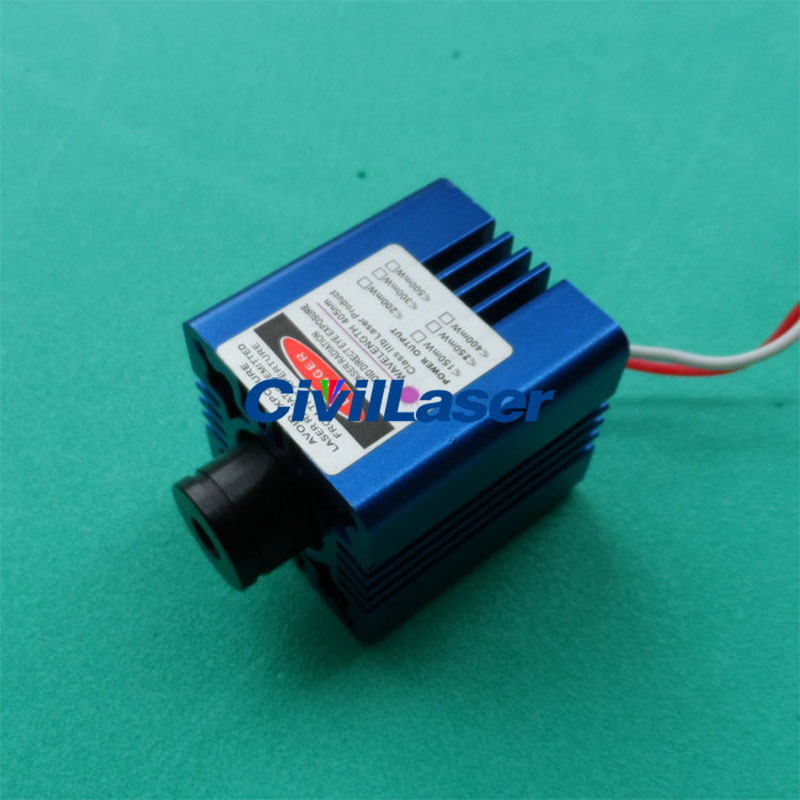

Structural features: laser tube + lens + heat dissipation shell
메모: the internal constant current circuit is provided. It only needs 3-5v power supply at the wire end to work. A 3.7V lithium battery can be used for power supply during the test

Product design features:
1. Good heat dissipation structure design, the best combination of copper and aluminum, smaller volume, better heat dissipation, meet long-term working conditions;
2. The built-in 3-5v constant current drive circuit is adopted, and the power can be constant when 3-5v is input. The integrated design of light source and circuit is realized;
3. With the external focusing design, the rotating head seat can realize the light spot size of different distances and meet the requirements of different working distances;
4. The wires are made of high quality silicone wire on the market. You don't need to worry about the wire damage when welding with electric iron.
