662nm 2000mw 광섬유 결합 레이저 시스템 레이저 실험실 소스

662nm 2000mw fiber coupled laser system  laser lab source

The 662 multimode fiber-coupled laser uses a fiber-coupled 662nm semiconductor laser to produce fiber output.
The coupled fiber output power has good laser power and the spot mode can be improved to a certain extent.

662nm is an uncommon laser wavelength, please confirm your wavelength requirements before buying.
This 662nm laser diode, the final wavelength is generally between 662~663nm.

[명세서]
상품명: 662nm 섬유 결합 레이저
리드 타임: 2~4 weeks
파장: 662±2nm
출력 파워: 2000mW (@ Fiber output side, and 0~max power adjustable)
Output stability (rms): <3% over 2 hours
작동 온도: 0°C-40°C
보관 온도:  -40°C-85°C
Expected Lifetime (hours): >10000
온도 안정화: TEC
준비 시간: <5 minute
섬유 유형: Multi-mode fiber/MM fiber
섬유 코어 직경: 100um/200um/400um/600um/800um/1000um---200um default
섬유 수치 조리개:0.22NA(100um~400um)/0.37NA(600um~1000um) --- 0.22NA default
섬유 인터페이스(출력): FC/PC, FC/APC, SMA905 ---- SMA905 default
섬유 길이: 1m/2m/3m ----- 1m default
Laser dimension: Near 240(L)x160(W)x80(H)mm
조정: 0~10KHz
Control method: Manual/Software --- Manual default
보증:1 Year

[Packing list]
1 x 662nm laser system
1 x Optical Fiber

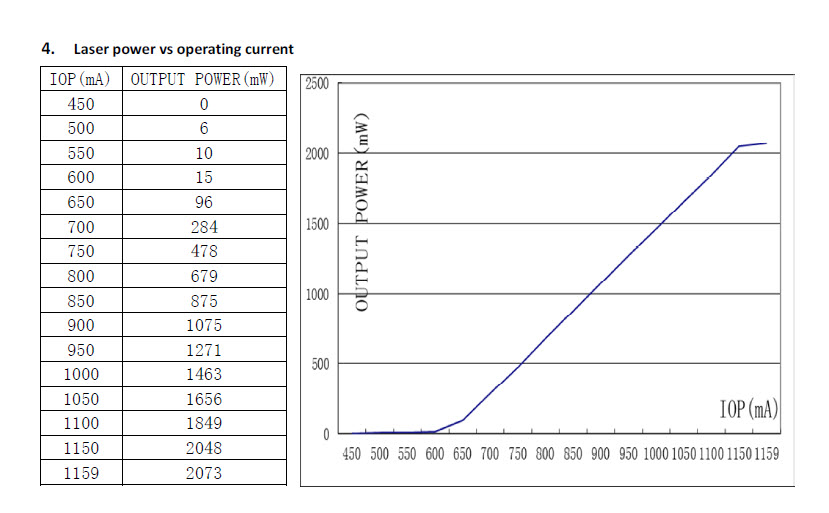

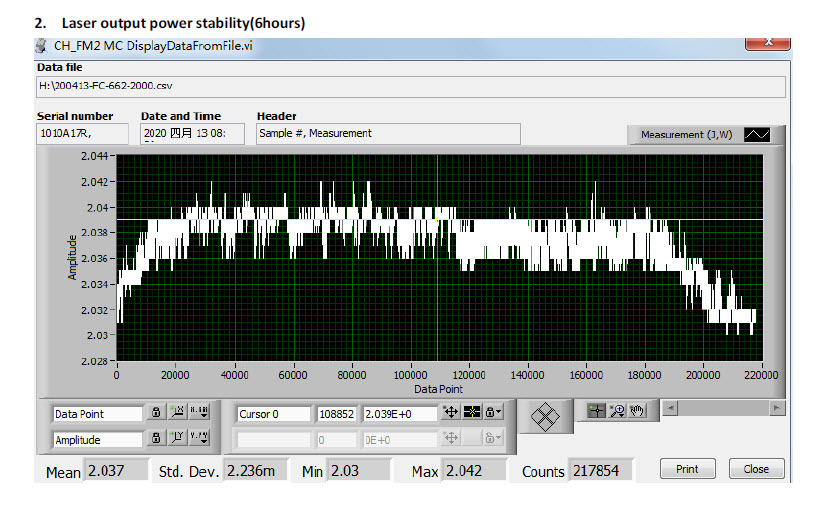

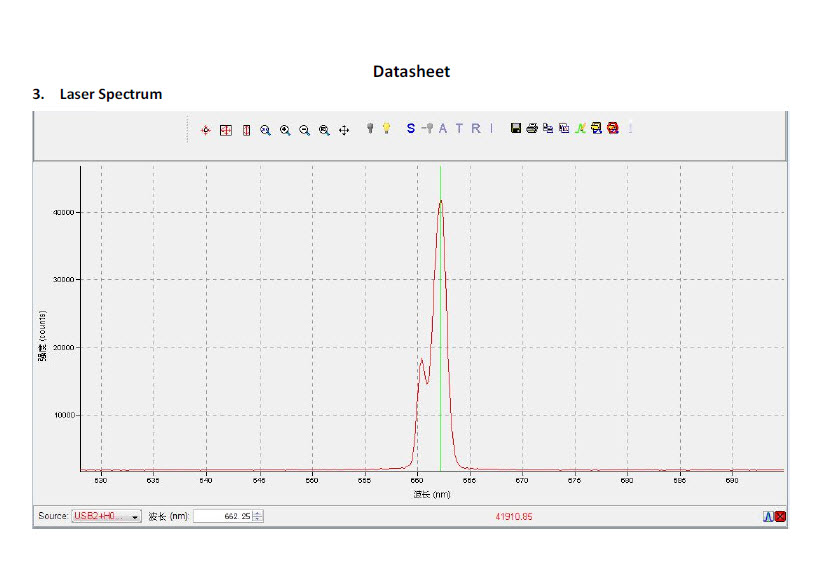

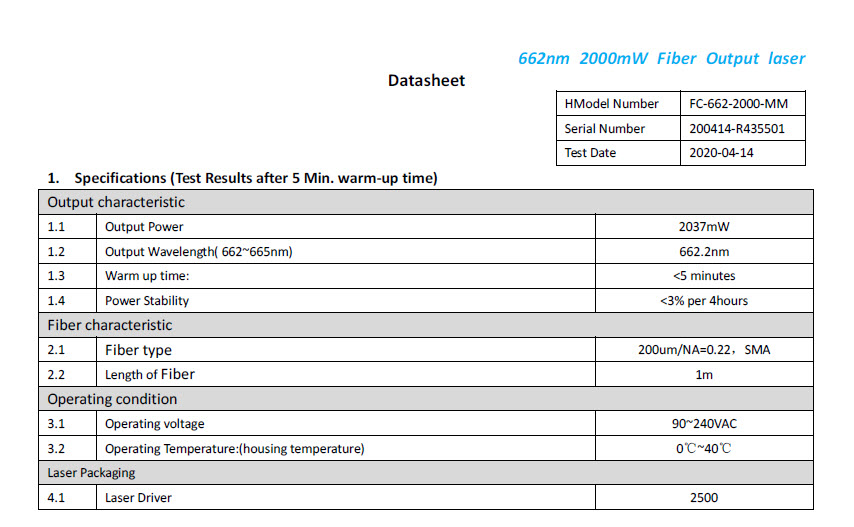

Test report (for reference only, slightly different for each unit)
