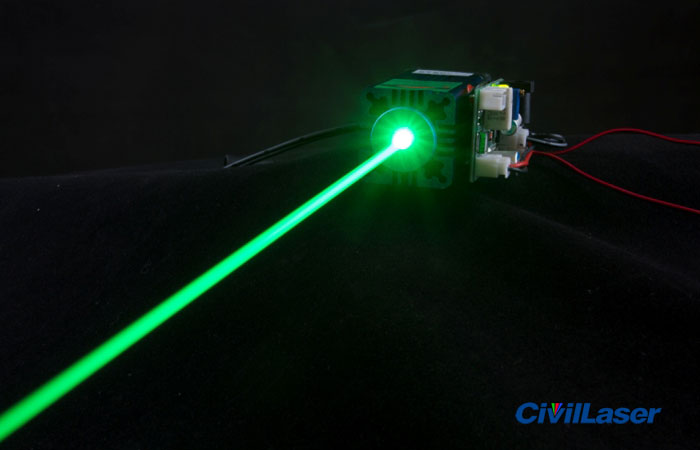

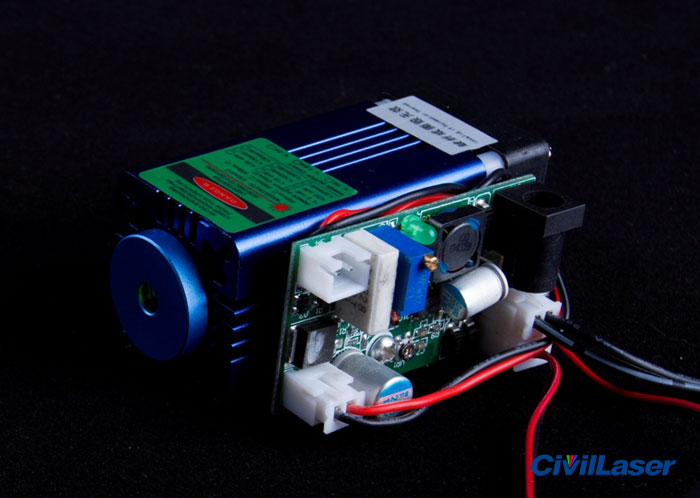

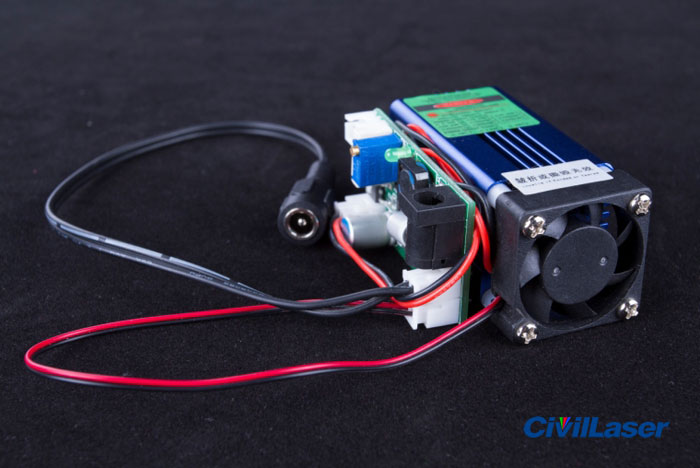

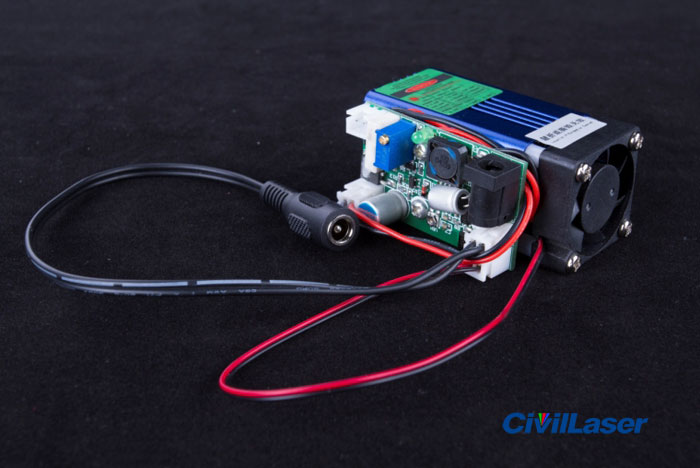

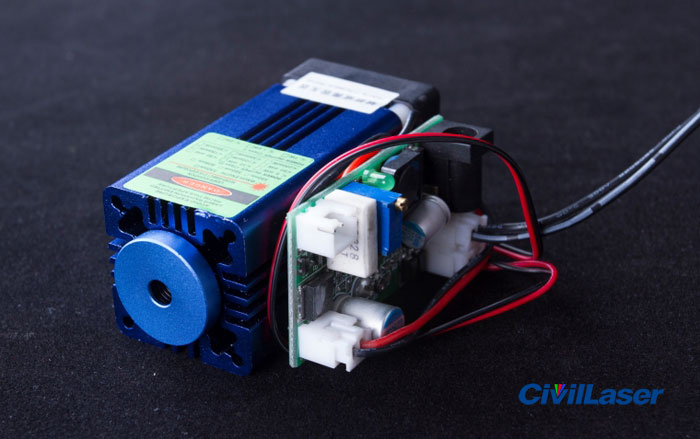

520nm 100mw 150mw 1000mw grass green laser module -- long time continuous working
Features:

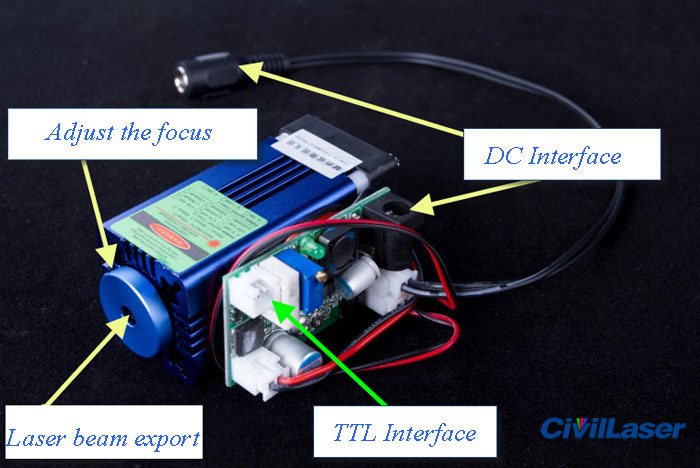

This laser module includes DC interface,but doesn't include the power supply.
This laser module comes with a fan cooling, can be used for a long time.
Circuit boards are fixed together with the host, and more portable than the split module on the market, more reliable!
SPECIFICATIONS:
레이저 모듈 크기: L 69mm * W 30 mm * H 30mm
레이저 모듈 Circuit board 크기: L 47.5mm * W 31.5mm * H 16mm
출력 파장: 520nm
출력 파워: 100mw / 150mw / 1000mw (choose)
Heat dissipation method: Aluminum heat sink + fan
조정: TTL modulation
Modulation frequency: 0Hz-20KHz
Output Mode: Continuous Wave
재료: Aluminum Alloy
Circuit control: constant current
Anti Access Protection: Include
작동 전압: DC 12V
작동 전류: I<1.7A
Warm-up Time: < 1 second
작동 온도: -10℃~40℃
보관 온도: -40℃~40℃
Structural features: laser tube + lens + cooling housing
Package includes:
1 x grass green laser module
1 x Power Transformer (choose)
Special note:
The input voltage is 12V, overpressure can cause instant damage of circuits and laser modules.
