Laser diode SLD3239VFR CW180mW 405nm blue-violet 3.8mm

Laser diode SLD3239VFR CW 180mW 405nm blue-violet 3.8mm

[명세서]
이름:Blue-violet laser diode
Place of production: Japan
출력 파장: 405nm
Output power: CW 180mW
작동 전류: <260mA
작동 전압: DC 5V

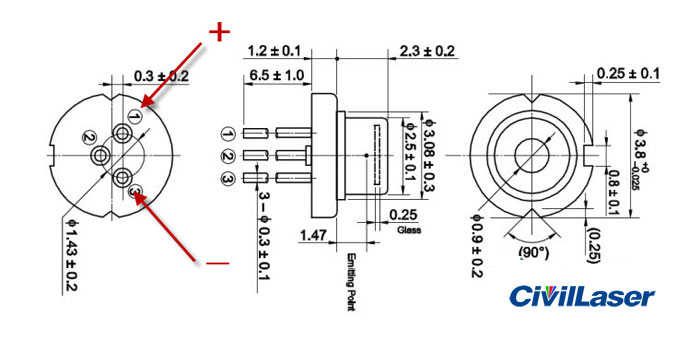

Package Type: TO38 (3.8mm)
Working life: >10,000 hours


[Note]
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
