Cr⁴+:YAG Laser Crystal Chromium Doped Yttrium AIuminum Garnet Crystals Customizable

Cr⁴+:YAG (Y3Al5O12) is an ideal material for passive Q-switching of Nd:YAG and other Nd and Yb doped lasers in the wavelength range of 0.8 to 1.2 mm. One of the remarkable features of Cr4+:YAG is high damage threshold (better than 500 MW/cm2). Passive Q-Switching is preferred for simplicity of manufacturing and operation, low cost and reduced system size and weight.

메모:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. 보증:1 year

Basic Properties:

Chemical Formula Cr⁴+:Y3Al5O12
Crystal Structure Cubic garnet
Recovery time 8.5 μs
Hardness 8.5 Mohs
Density 4.56 g/cm³
Thermal conductivity 12.13 W/m/K
Refractive index 1.82 @ 1064nm
Ground state absorption cross section σs1=4.3x10-18cm²
Excited state absorption cross section σs2=8.2x10-19cm²
Fluorescence lifetime 3.4 μs

Cr:YAG Specifications:

Prameter Value
Orientation The rod axis is along [100] within5°,[111] and [110] within 5°
Cr4+ concentration 0.5 mol% ~ 3 mol%
Aperture 2x2 ~ 20x20 mm
Length 0.1 ~ 12 mm
Initial transmission 5% ~ 99%
Angle tolerance Δθ< ± 0.5°; Δφ< ±0.5°
Flatness λ /8 @ 633 nm
Parallelism 20 arc sec
Perpendicularity 5 arc minutes
Surface finishing 20/10 scratch/dig to MIL-O-13830A
Wavefront distortion less than λ/8 @ 633 nm
Coating AR/HR/PR coating upon customer’s request.
Quality Warranty Period One year under proper use

Note: When ordering Cr⁴+:YAG crystal, please specify the aperture, initial transmission(To) and coatings.

About Cr⁴+:YAG crystals price:

Concentration Size Membranes Price (1~5 pcs) Price (>10 pcs)
T=20% 3*3*T S1/S2:AR@1064nm $98 $85
Note For prices of other customized crystals, please contact us.

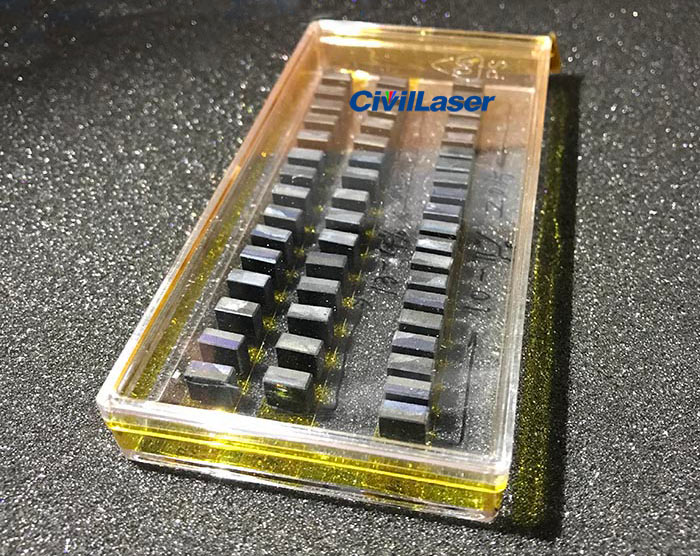

laser crystals

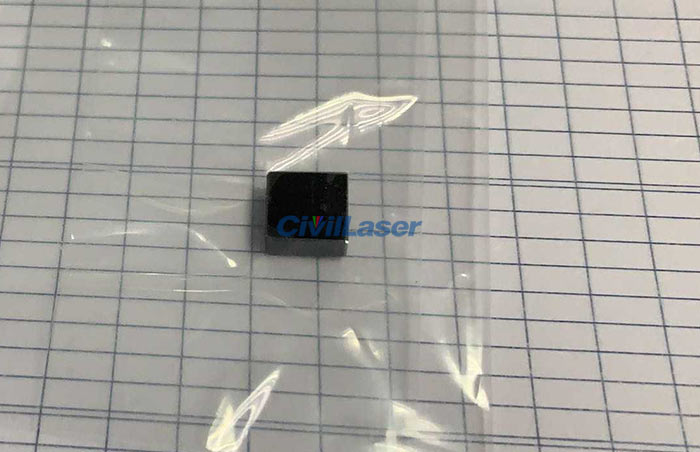

laser crystals

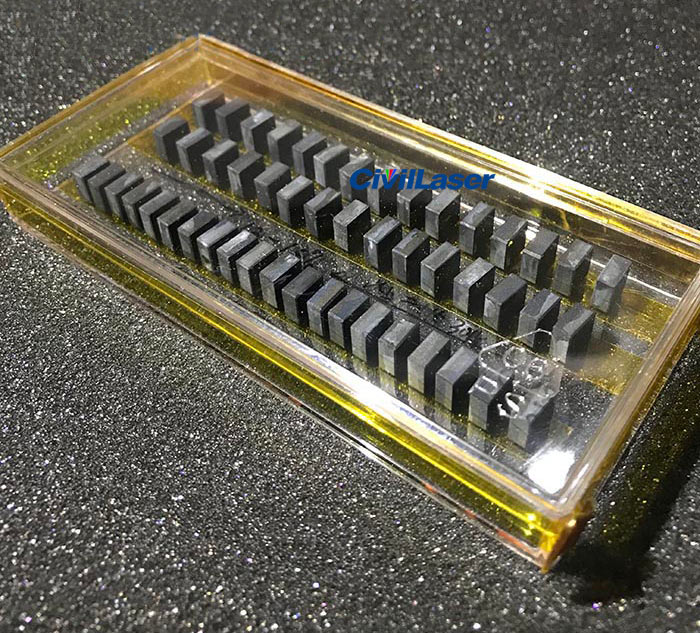

laser crystals

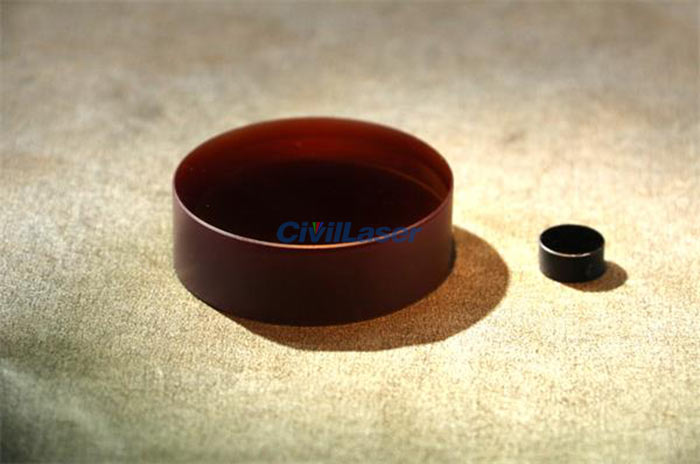

laser crystals
