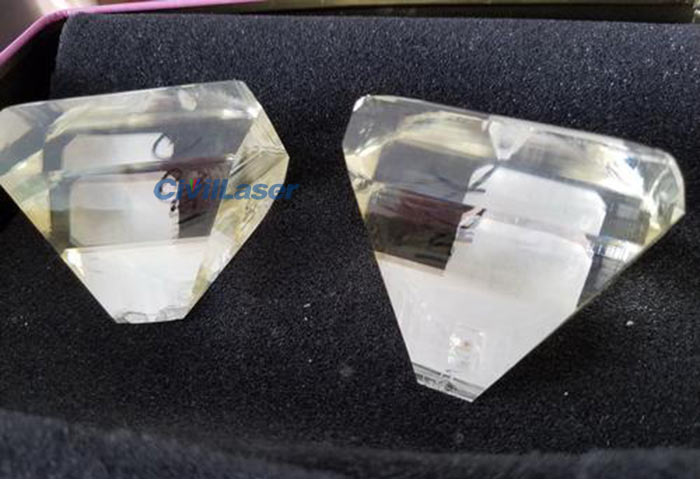

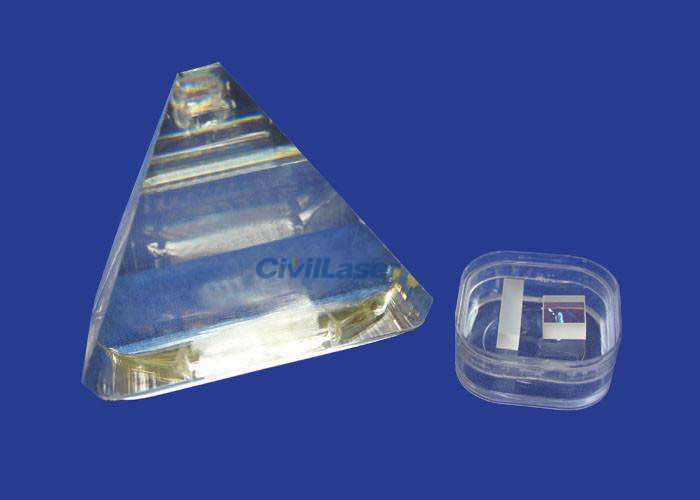

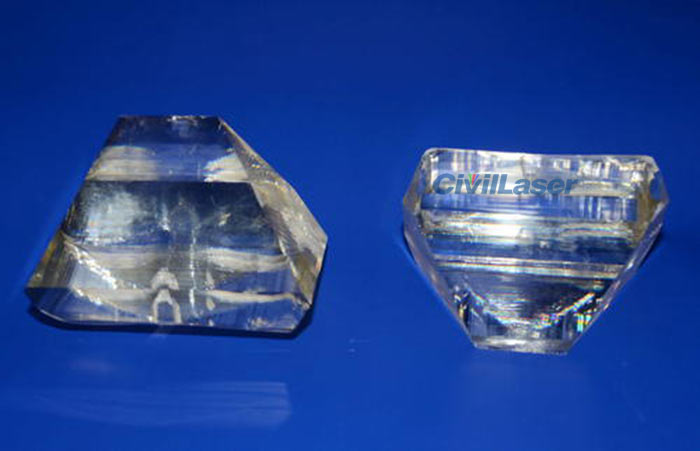

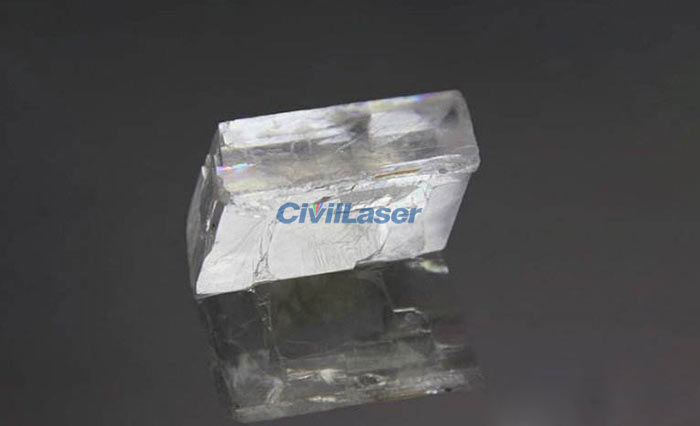

KTP Crystal Potassium Titanyl Phosphate NLO Crystals Customizable

KTP Crystal Potassium Titanyl Phosphate NLO Crystals Customizable

KTP crystals is the most commonly used material for frequency doubling of Nd-doped lasers, particularly at the low or medium power density.It is widely used for frequency mixing to generate 빨간색/녹색/Blue output, and for OPO and OPA to generate visible to mid-infrared tunable output. It is also used for many E-O devices such as Q-switches and E-O modulators.

메모:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us）
5. Crystal customization time: 3~6 weeks.
6. 보증:1 year

Advantages:
1. Large nonlinear optical coefficient.
2. Wide angular bandwidth and small walk-off angle.
3. Broad temperature and spectral bandwidth.
4. High Electro-Optics(E-O) coefficient and low dielectric constant.
5. Non-hygroscopic, chemically and mechanically stable.

KTP's 신청:
1. Frequency Doubling (SHG) of Nd-doped Lasers for 녹색/빨간색 Output.
2. Frequency Mixing (SFM) of Nd Laser and 다이오드 레이저 for Blue Output.
3. Parametric Sources (OPG, OPA and OPO) for 600nm - 4500nm Tunable Ouptut.
4. E-O Modulators, Optical Switches, Directional Couplers.
5. Optical Waveguides for Integrated NLO and E-O Devices.

KTP specification:
