KTA NLO Crystal Potassium Titanyle Arsenate Nonlinear Crystals Customizable

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:

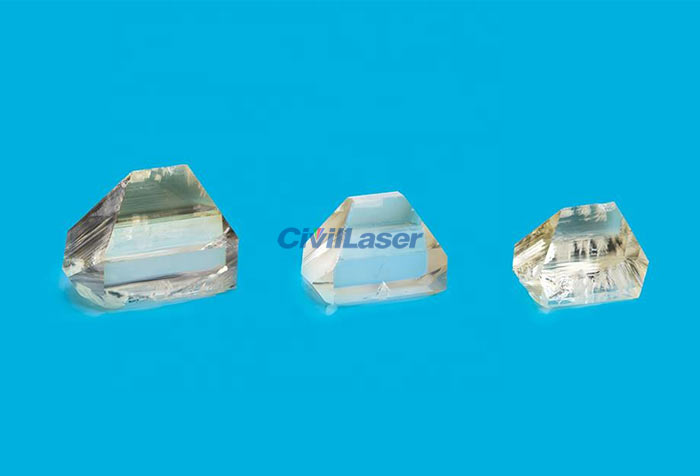

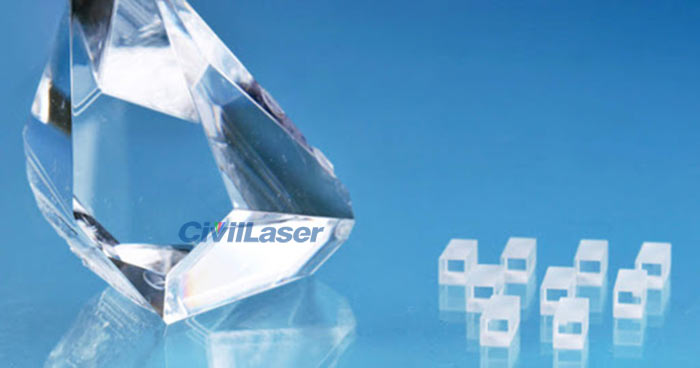

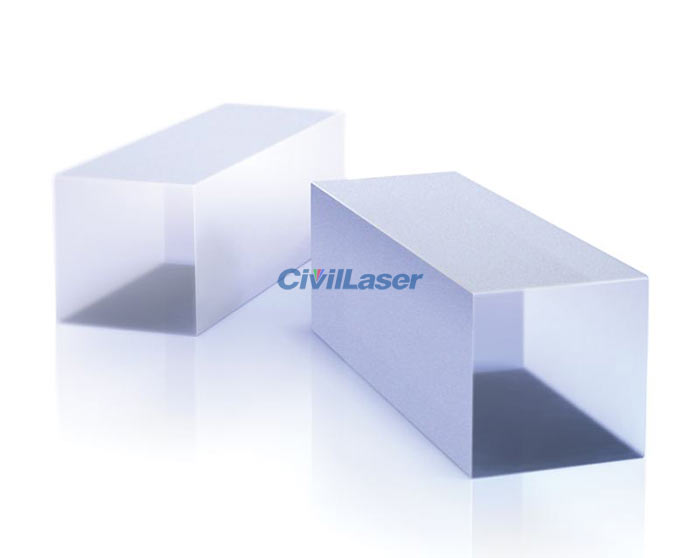

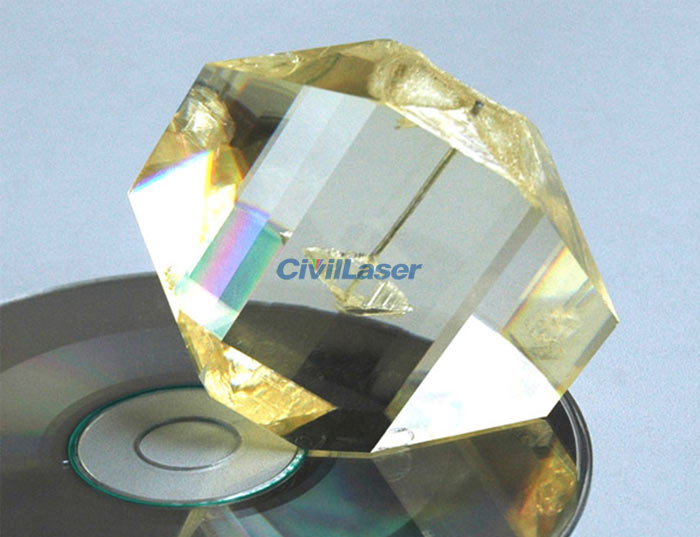

KTA NLO Crystal Potassium Titanyle Arsenate Nonlinear Crystals Customizable

Potassium Titanyle Arsenate(KTiOAsO4), or KTA crystal, is an excellent nonlinear optical crystal for Optical Parametric Oscillation (OPO) application. It has better non-linear optical and electro-optical coefficients, significantly reduced absorption in the 2.0-5.0 µm region, broad angular and temperature bandwidth, low dielectric constants. And its low ionic conductivities result in higher damage threshold compared with KTP.

메모:
1. This is a customized product.
2. $55 is a deposit, not the final price of the product.
3. The main factors affecting the price: quantity, size, processing index.
4. Please provide crystal processing drawings or crystal size, membranes, quantity, processing index. (Contact us
5. Crystal customization time: 3~6 weeks.
6. 보증:1 year

Advantages:
1. Large nonlinear optical and electro-optical coefficients.
2. Wide angular bandwidth and small walk-off angle.
3. Broad temperature and spectral bandwidth.
4. Low dielectric constants, loss tangent and ionic conductivities (much less than that of KTP).
5. High damage threshold.
6. Lower absorption and high transmission in the 3-4 µm spectrum range than KTP.
7. Highly resistant to high intensity laser radiation.

KTA's 신청:
1. An excellent NLO crystal developed mainly for Optical Parametric Oscillation (OPO).
2. Frequency Doubling (SHG @1083nm-3789nm).
3. Sum and Difference Frequency Generation (SFG)/(DFG).
4. NCPM cut 1064--->1533+3475 (type I Theta=90deg., phi=0deg.).

KTA specification:

Prameter Value
Tolerance of cutting angle △θ≤±0.25°,△φ≤±0.25°
Tolerance of dimension Dimension+/-0.1 mm,L:±0.1mm
Flatness λ/8@ 632.8nm
Wavefront distortion λ/8@ 632.8nm
Surface quality 10/5  per MIL-O-13830A
Parallelism 10″
Perpendicularity 5′
Bevel/chamfer <0.1mm@45deg.
Chips <0.1mm
CA >95%
Coating AR/HR coating Upon customer’s request
Damage Threshold 750MW/CM² at 1064nm, TEM00, 10ns, 10Hz
Warranty One year under proper use



Nonlinear crystals

Nonlinear crystals

Nonlinear crystals

Nonlinear crystals
