200nm~1100nm 3.2mm Silicon PIN 포토다이오드 TO-5 Package
[특징]
High reliability, low dark current.
200-1100nm spectral range.
Active diameter 3.2x3.2mm.
Hermetic TO5 Can with UV window or with receptacle.
[Applications]
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+100 |
℃ |
| Forward current |
If |
16 |
mA |
| Reverse voltage |
Vr |
20 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
3.2*3.2 |
| Spectral range |
λ |
nm |
200-1100 |
| Responsivity |
Re (VR=0V,λ=200nm ) |
mA/mW |
0.08 |
| Re (VR=0V,λ=405nm ) |
mA/mW |
0.28 |
| Re (VR=0V,λ=650nm ) |
mA/mW |
0.43 |
| Re (VR=0V,λ=905nm ) |
mA/mW |
0.55 |
| Re (VR=0V,λ=1064nm ) |
mA/mW |
0.22 |
| Response time |
Tr (RL=50Ω,VR=5V) |
ns |
50 |
| Dark current |
Id(VR=0V) |
pA |
1 |
| Id(VR=5V) |
pA |
200 |
| Reverse Breakdown voltage |
VBR (IR=10uA) |
V |
40 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
1500 |
| Cj (f=1MHz, VR=5V) |
pF |
300 |
| Saturated Optical Power |
Ps(VR=5V) |
mW |
25 |
| Operating voltage |
VR |
V |
0-15 |
| Shunt resistance |
Rsh (VR=10mV) |
GΩ |
10 |
| Package |

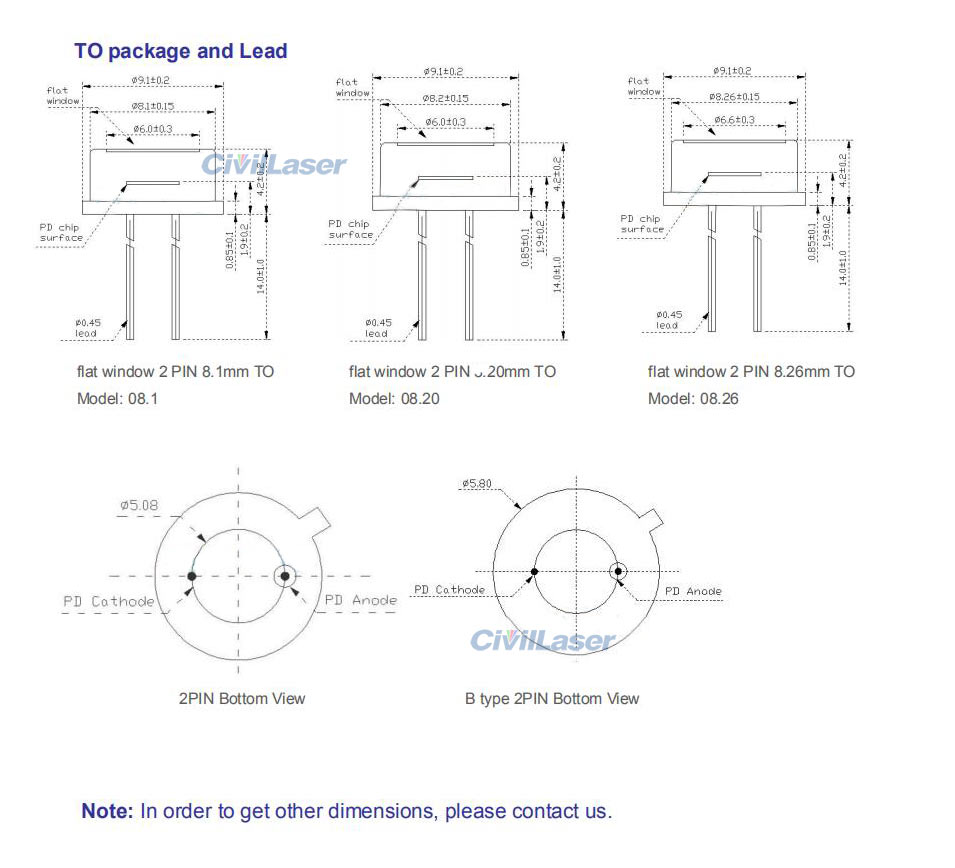

Hermetic TO5 Can with UV window or with receptacle. |
메모:

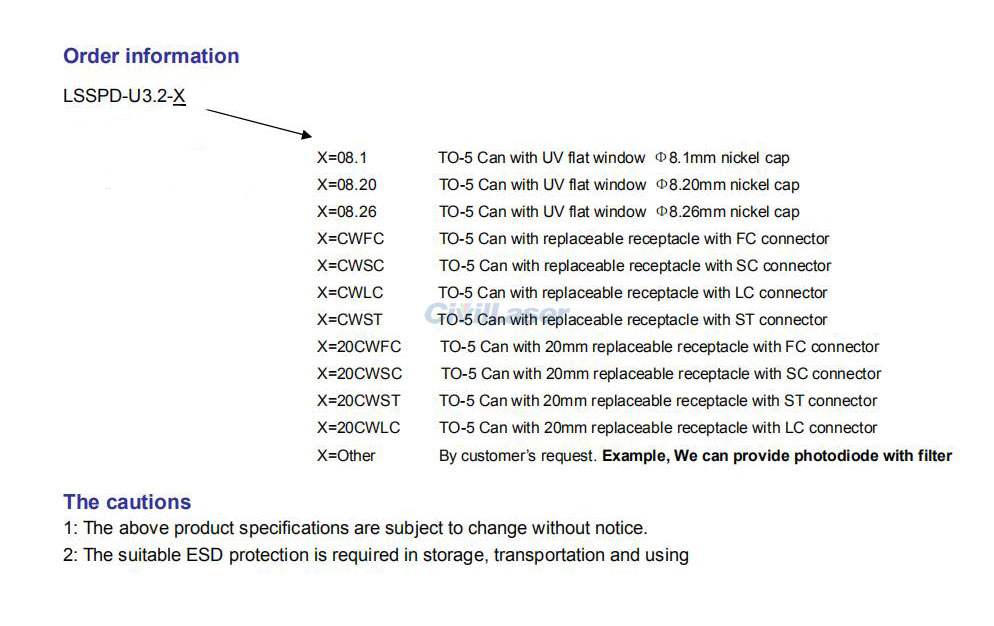

(1) The default is TO-5 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
