400nm~1100nm 1.2mm Silicon PIN 포토다이오드 TO46 Package Customized

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:



Add to Cart:


400nm~1100nm 1.2mm Silicon PIN 포토다이오드 TO46 Package Customized

[특징]
High reliability, low dark current.
400-1100nm spectral range.
1064nm responsivity up to 0.27mA/mW.
Active diameter 1.2x1.2mm.

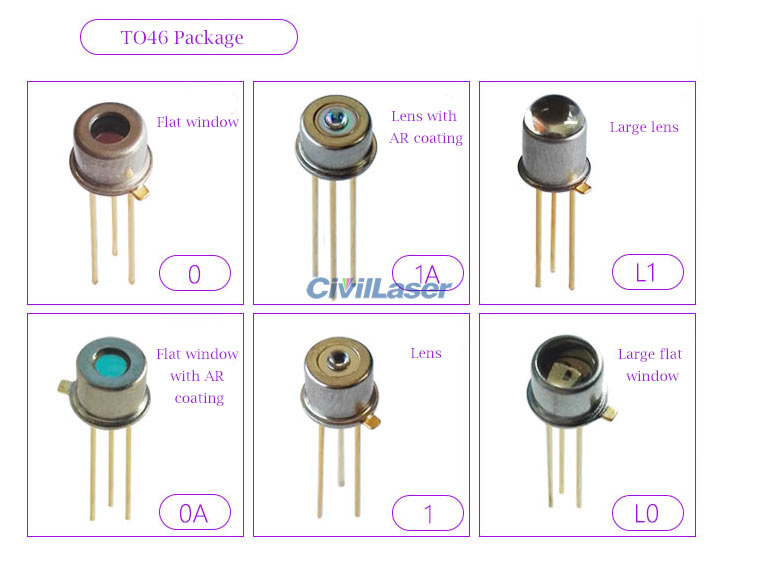

Hermetic TO46 Can or with receptacle or with fiber coupling.

[Applications]
Optical sensor and Optical power meter
Laser finding range and laser lidar
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector
Medical equipment

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 10 mA
Reverse voltage Vr 30 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Typical Value
Active diameter Φ mm 1.2*1.2
Spectral range λ nm 400-1100
Responsivity Re (VR=5V,λ=405nm ) mA/mW 0.15
Re (VR=5V,λ=650nm ) mA/mW 0.30
Re (VR=5V,λ=850nm ) mA/mW 0.55
Re (VR=5V,λ=1064nm ) mA/mW 0.27
Response time Tr (RL=50Ω,VR=5V) ns 1.4
Dark current Id(VR=0V) pA 0.2
Id(VR=5V) pA 60
Reverse Breakdown voltage VBR (IR=10uA) V 80
Junction capacitance Cj (f=1MHz, VR=0V) pF 50
Cj (f=1MHz, VR=5V) pF 6
Saturated Optical Power Ps(VR=5V) mW 15
Operating voltage VR V 0-20
Shunt resistance Rsh (VR=10mV) 50

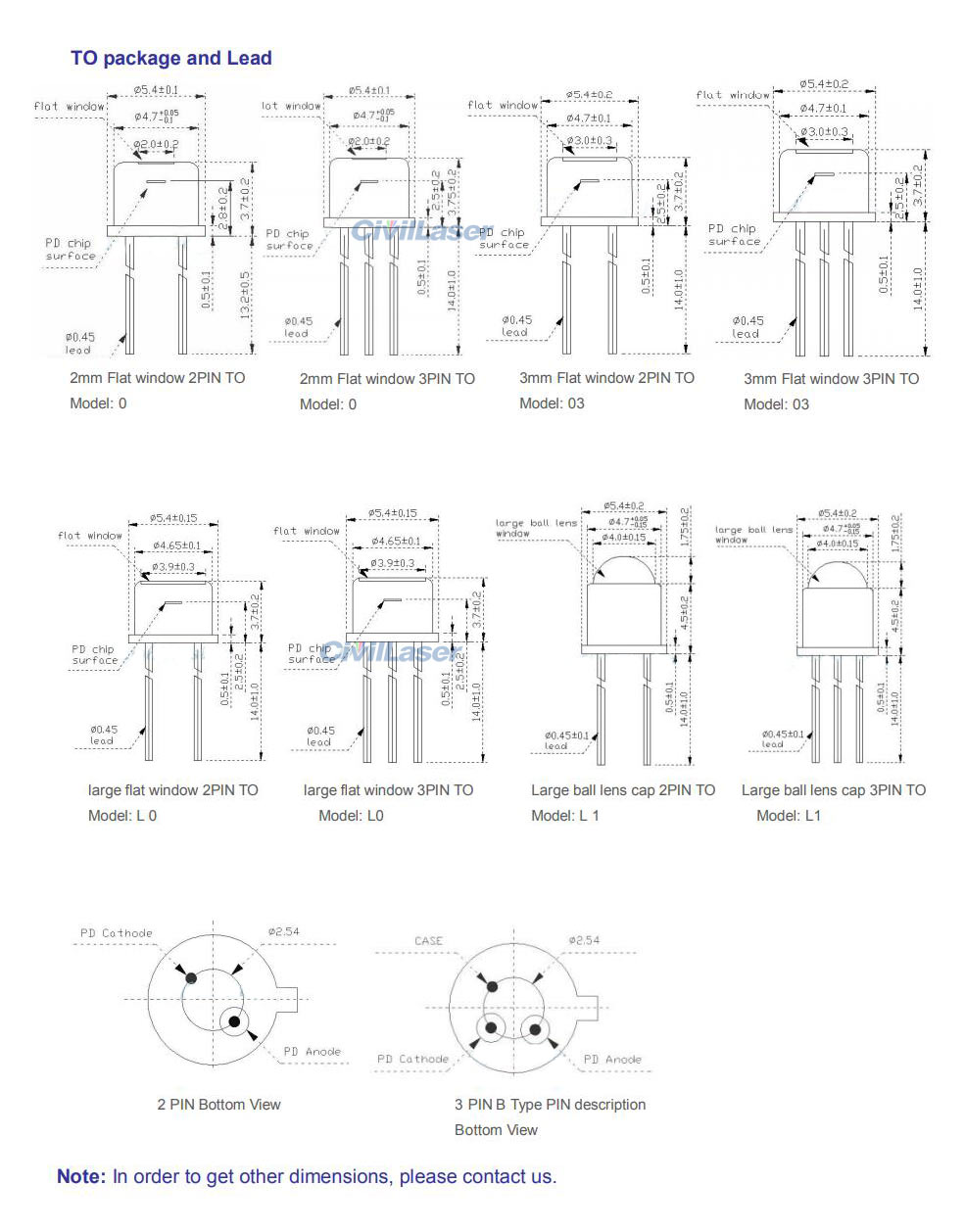

package Hermetic TO46 Can or with receptacle or with fiber coupling.


메모:

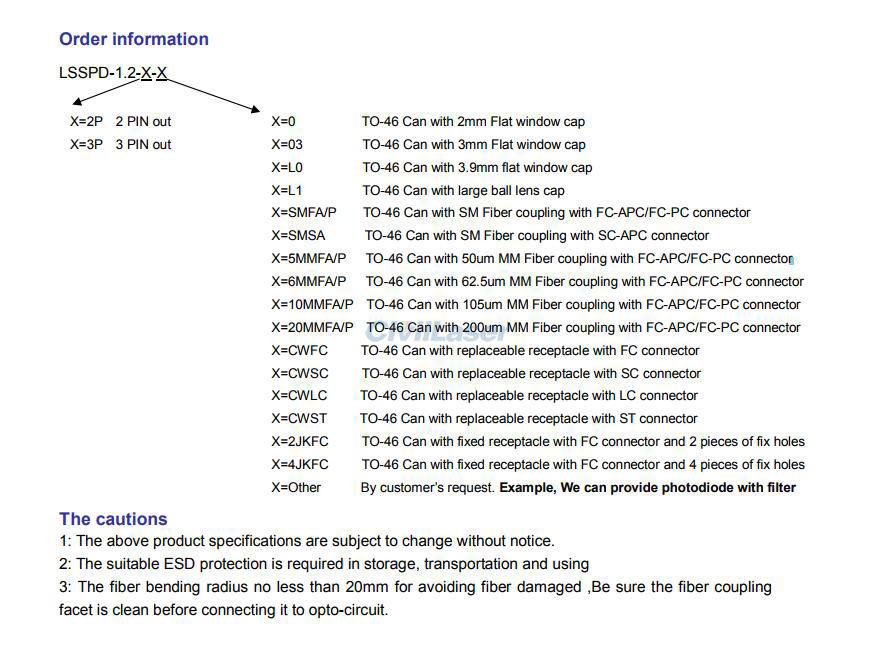

(1) The default is TO-46 Can package, please contact us if you need other models.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
