650nm 100mW 레드 십자선 CROSS 레이저 모듈 --22*110mm

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


650nm 100mW 레드 십자선 CROSS 레이저 모듈 --22*110mm
[상품상세정보]
상품 명칭: 650nm 100mW Red Crosshair laser module
파장: 650nm
출력: ≤100mW (can be customized)
출력형태: Crosshair
레이저 유형: Visible laser, Red color
외부 색: Black
크기: φ22*110mm (can be customized)
Current: ≤160mA  (Determined by the different tube core and power)
입력전압:  DC2.8-5V
Operation mode: continuous laser
Incentives: electric excitation laser
Working medium: semiconductor laser
작동온도: -10--60℃
보관온도: -40℃~80℃
선폭: 1.2m (can be customized)
보증 기간: 12 Months Factory warranty
Work life: more than 8000 hours
구조적 특징: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway


[상품 포함]
1* Red Cross-hair laser module;
1* Laser stand;
1* Power supply;

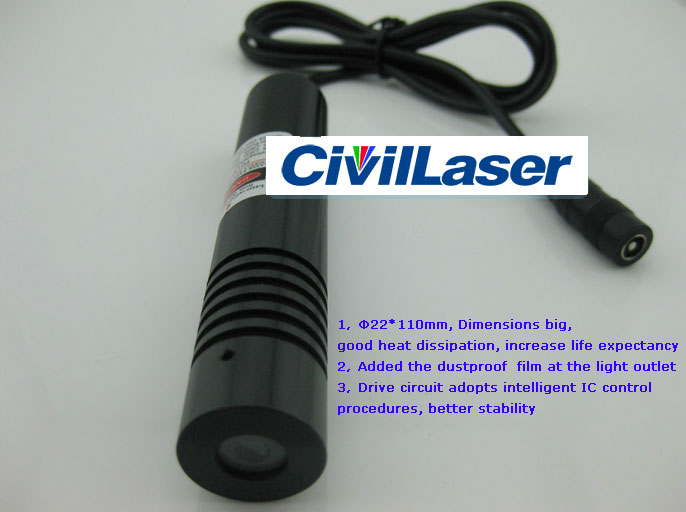

This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
