500mw White laser module RGB laser beam compose the white laser -- with TTL modulation
This laser module does not include the power source, but with a DC port and the positive and negative power lines,
Users only need to connect the 12V power supply to work properly issued laser according to the occasion;
This product is no time limit,can working long time, you can open a long time. it comes with fan cooling;
A circuit board is fixed together with the host, so more portable than split modules on the market, more reliable!
SPECIFICATIONS:
이름: White laser module

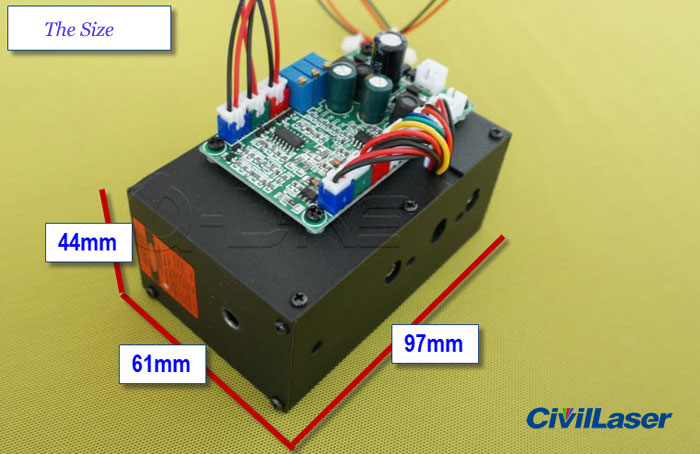

Host 크기: 97mm x 61mm x 44mm
Circuit board 크기: 72.5mm x 43.5mm x 23mm
출력 파장: 450nm/100mw & 658nm/220mw & 532nm/130mw
출력 파워: 400mw~500mw

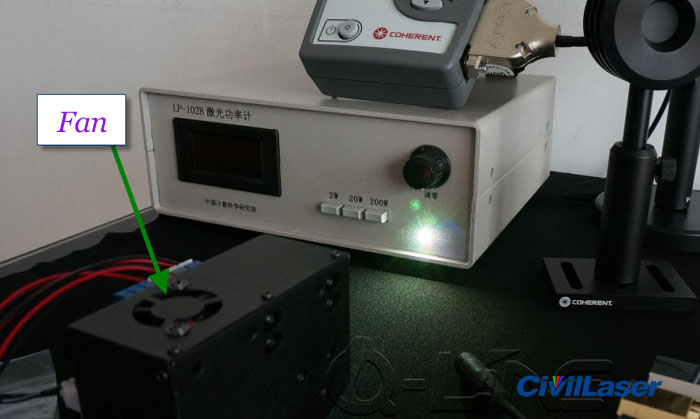

Heat dissipation method: Aluminum heat sink + fan cooling

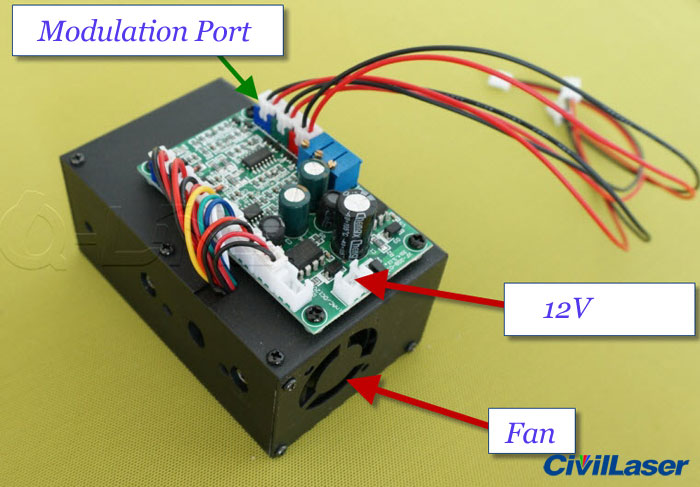

조정: TTL modulation
Outside Color: Black
Beam Divergence: 2.5mard
Host body 재료: Aluminum
Circuit control: constant current
Anti Access Protection: Include
작동 전압: DC 12V
작동 전류: I<1.5A
Warm-up Time: 0
작동 온도: -10℃~40℃
보관 온도: -10℃~40℃
Structural features: laser diode + lens + driver protection circuit + shell + fan cooling
Power: Not inlcude
