300nm~1200nm 3mm Blue Plastic Silicon PIN 포토다이오드 Plastic Package
[특징]
High responseivity
Low dark current
High speed
Small size
Low cost
[Applications]
Industrial automatic control
Optical measurement equipment
Audio equipment, air conditioner, etc.
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-25～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+85 |
℃ |
| Forward current |
If |
10 |
mA |
| Reverse current |
Ir |
1000 |
μA |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |

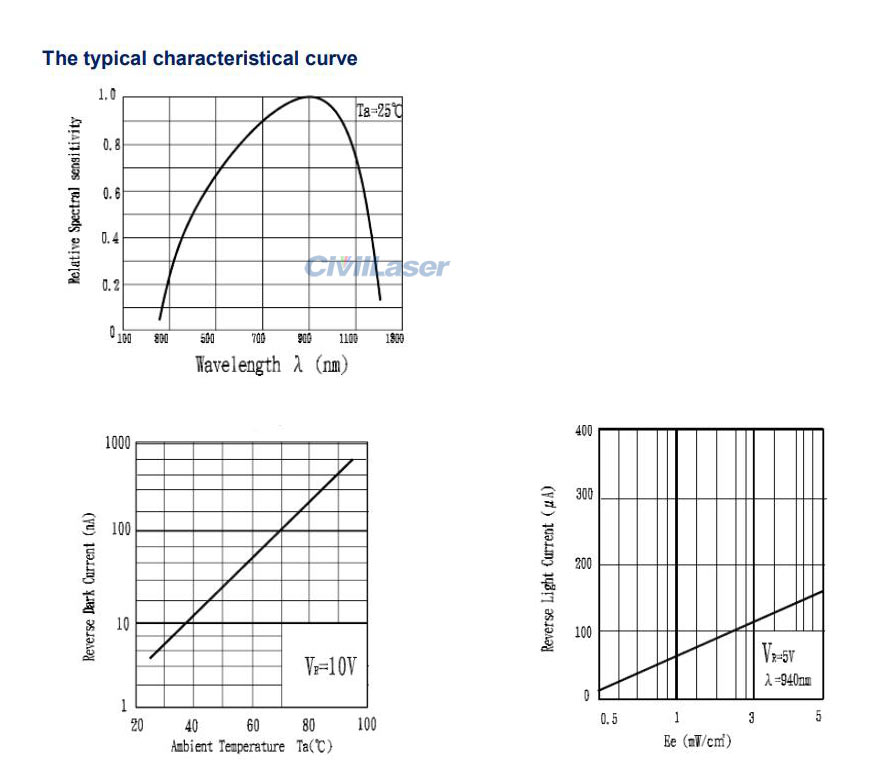

Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active area |
Φ |
mm |
3*3 |
| Spectral range |
λ |
nm |
300-1200 |
| Responsivity |
Re (λ=1200nm) |
mA/mW |
0.10 |
| Re (λ=940nm ) |
mA/mW |
0.5 |
| Re(λ=650nm) |
mA/mW |
0.35 |
| Re(λ=300nm) |
mA/mW |
0.10 |
| Open-Circuit Voltage |
VOC(Ee=1mW/cm2,p=940nm) |
V |
0.4 |
| Short-Circuit Current |
ISC(Ee=1mW/ cm2,p=940nm) |
μA |
40 |
| Reverse Light Current |
IL(Ee=1mW/cm2,p=940nm
VR=5V |
μA |
40 |
| Dark current |
ID (VR=10V) |
nA |
10 |
| Rise time |
Tr (VR=10V, RL=1000) |
ns |
40 |
| Reverse Breakdown voltage |
VBR (IR=100μA) |
V |
170 |
| Junction capacitance |
Cj (f=1MHz, VR=5V) |
pF |
18 |
| Operating voltage |
VR |
V |
0-10 |

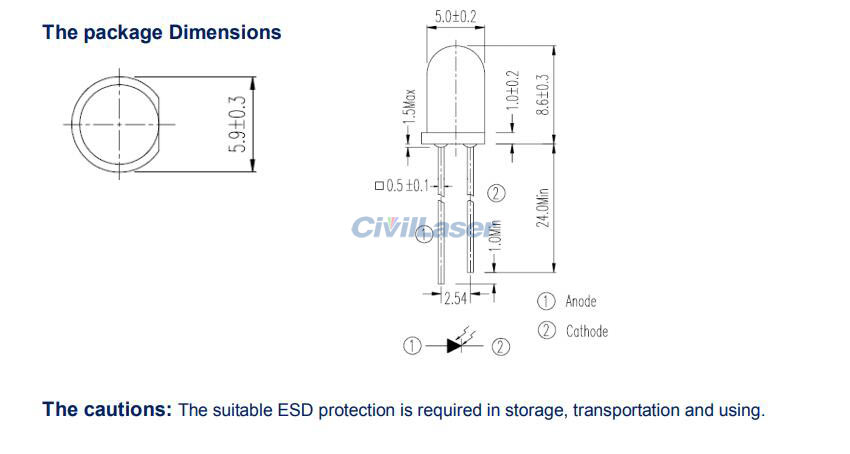

| Package |
Plastic package 5 |
메모:
(1) The package is plastic package 5.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
