800nm~1700nm 0.3mm InGaAs PIN 포토다이오드 TO46 Package Can be Fiber-coupled

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


800nm~1700nm 0.3mm InGaAs PIN 포토다이오드 TO46 Package Can be Fiber-coupled

[특징]
High reliability, low dark current.
800-1700nm spectral range.
Active diameter 0.3mm.
Hermetic TO46 Can or with receptacle or with fiber coupling.

[Applications]
Optical sensor and Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -40~+100
Forward current If 6 mA
Reverse Voltage Vr 20 V
Soldering temperature(time) Ts(10s) 260


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Unit Typical Value
Active diameter Φ mm 0.3
Spectral range λ nm 800-1700
Responsivity Re (VR=0V, λ=1310nm) mA/mW 0.85
Re (VR=0V, λ=1550nm) mA/mW 0.90
Response time Tr (RL=50Ω,VR=5V) ns 0.8
Dark current Id (VR=0V) pA 2
Id (VR=5V) pA 20
Reverse Breakdown voltage VBR (IR=10μA) V 30
Junction capacitance Cj (f=1MHz, VR=0V) pF 900
Cj (f=1MHz, VR=5V) pF 5
Saturated Optical Power Ps(VR=5V) mW 5
2nd Order Inter-modulation Distortion COS(Two tones,RL=50Ω,VR=5V) dBc -75
Operating voltage VR V 0-10
Shunt resistance Rsh (VR=10mV) 5

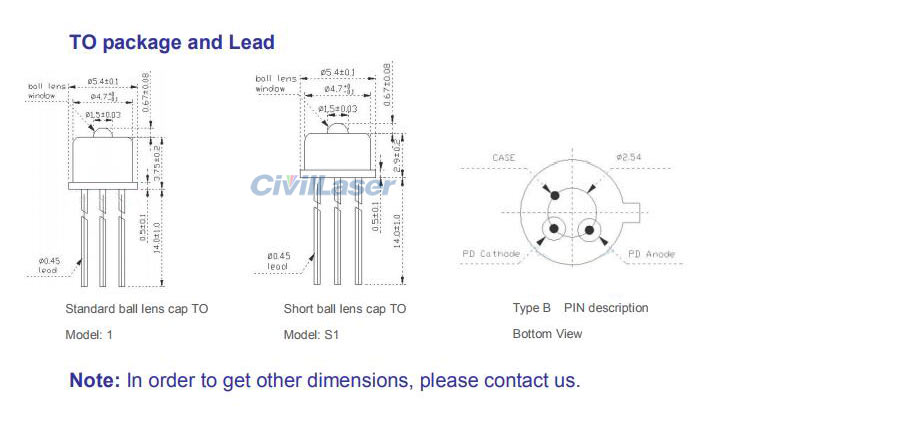

Package Hermetic TO46 Can or with receptacle or with fiber coupling.


메모:

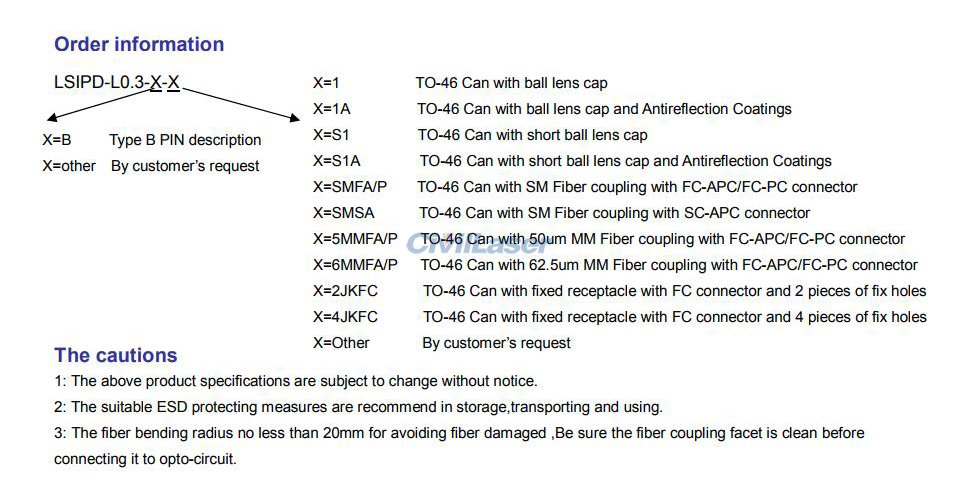

(1) The default is TO46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
