800nm~1700nm 170ps Response Time InGaAs PIN photodiode TO-46 Package
[특징]
High reliability, low dark current.
800-1700nm spectral range.
3dB Bandwidth up to 3GHZ.
Hermetic TO46 Can package or with fiber coupling.
[Applications]
Industrial automatic control
Science analysis and experiment
Fiber optical sensor
High precision optic instrument
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-40～+85 |
℃ |
| Storage temperature |
Tstg |
-40～+100 |
℃ |
| Forward current |
If |
3 |
mA |
| Reverse Voltage |
Vr |
20 |
V |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Spectral range |
λ |
nm |
800-1700 |
| Responsivity |
Re (VR=0V, λ=1310nm) |
mA/mW |
0.85 |
| Re (VR=0V, λ=1550nm) |
mA/mW |
0.90 |
| Response time |
Tr (RL=50Ω,VR=5V) |
ps |
120 |
| Band width(-3dB) |
Tr (RL=50Ω,VR=5V) |
GHz |
3 |
| Dark current |
Id (VR=0V) |
pA |
0.1 |
| Id (VR=5V) |
pA |
5 |
| Reverse Breakdown voltage |
VBR (IR=10μA) |
V |
40 |
| Junction capacitance |
Cj (f=1MHz, VR=0V) |
pF |
320 |
| Cj (f=1MHz, VR=5V) |
pF |
0.8 |
| Saturated Optical Power |
Ps(VR=5V) |
mW |
3 |
| 2nd Order Inter-modulation distortion |
CSO(Two tones, RL=50Ω,1mW, VR=10V ) |
dBc |
-75 |
| Operating voltage |
VR |
V |
0-15 |
| Shunt resistance |
Rsh (VR=10mV) |
GΩ |
100 |

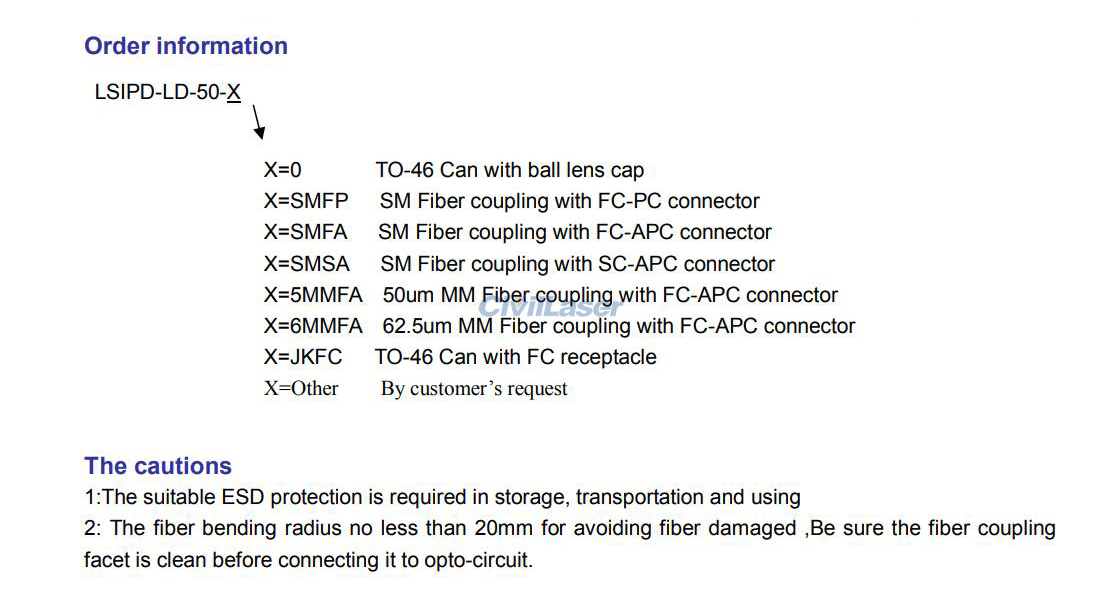

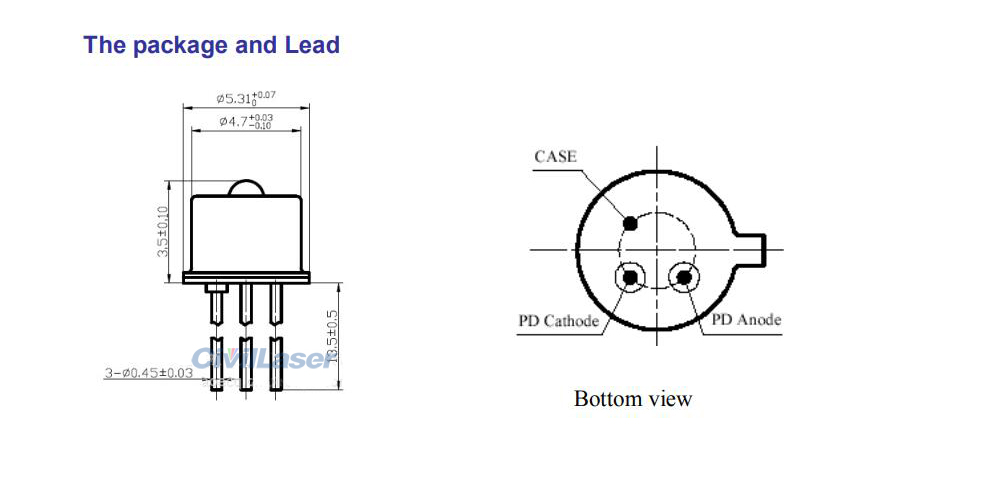

| Package |
Hermetic TO46 Can package or with fiber coupling. |
메모:
(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
