800nm~3600nm 300μm InGaAs PIN 포토다이오드 TO46 Package
[특징]
High reliability, low dark current.
800-3600nm spectral range.
Active diameter 0.3mm.
Hermetic package TO46 Can or with receptacle or with fiber coupling.
[Applications]
Gas Analyzer
Environment measurement
Science analysis and experiment
Space light detect equipment
Optical power meter
NIR photometry
Laser pulse test
Optical fiber sensor
Absolute maximum ratings:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-20～+50 |
℃ |
| Storage temperature |
Tstg |
-55～+70 |
℃ |
| Forward current |
If |
10 |
mA |
| Reverse Voltage |
Vr |
1 |
V |
| Reverse current |
Ir |
1 |
mA |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |
Electrical and optical characteristics:(T=25℃)
| Parameter |
Symbol |
Unit |
Typical Value |
| Active diameter |
Φ |
mm |
0.3 |

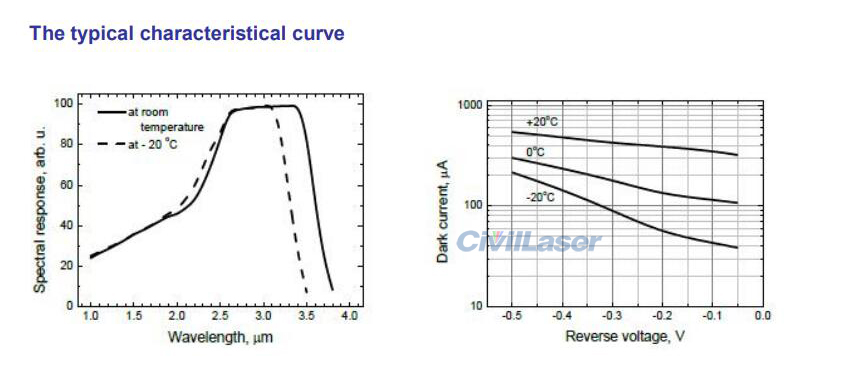

| Spectral range |
λ |
nm |
800-3600 |
| Responsivity |
Re (VR=-0.2V, λ=800nm) |
mA/mW |
0.08 |
| Re (VR=-0.2V, λ=3000nm) |
mA/mW |
1.0 |
| Re (VR=-0.2V, λ=3600nm) |
mA/mW |
0.2 |
| Response time |
Tr (RL=50Ω,VR=-0.2V) |
ns |
40 |
| Dark current |
Id (VR=-0.2V) |
uA |
250 |
| Reverse Breakdown voltage |
VBR (IR=10μA) |
V |
1 |
| Junction capacitance |
Cj (f=1MHz, VR=-0.2V) |
pF |
300 |
| Saturated Optical Power |
Ps(VR=-0.2V) |
mW |
2 |
| Operating voltage |
VR |
V |
0-0.2 |

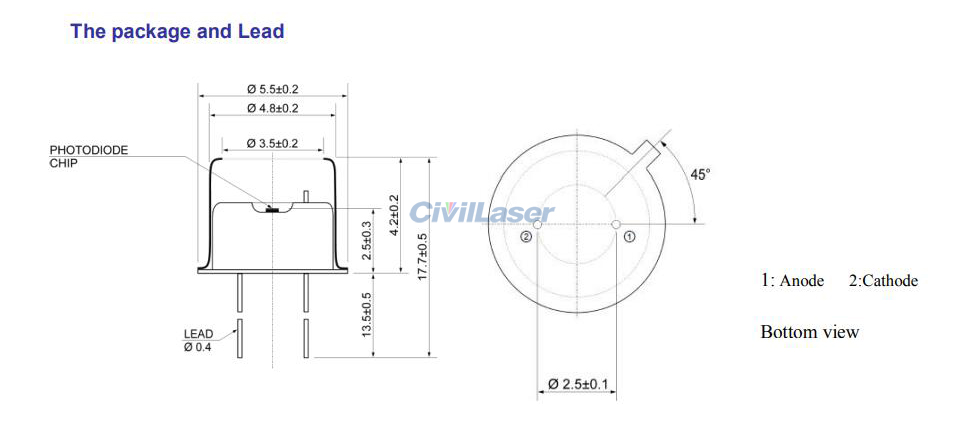

| Package |
Hermetic package TO46 Can or with receptacle or fiber coupling. |
메모:

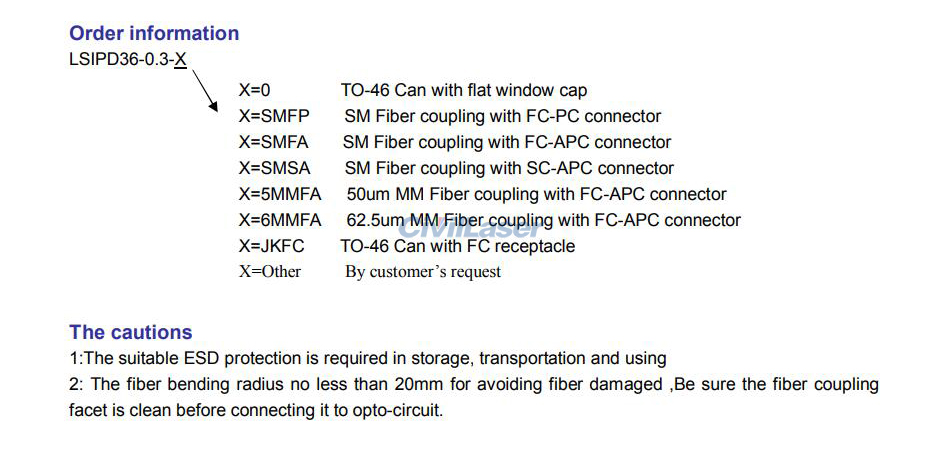

(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
