Peak Response @900nm 500μm Silicon Avalanche 포토다이오드 APD TO46 Package
[특징]
High reliability, low dark current.
APD with 500um active area.
Slow multiplication curve.
QE > 80% @ 750 nm-910 nm.
Fast rise time, low noise.
[Applications]
Industrial automatic control
Laser range finder, laser ladar
Automobile collision avoidance system
High speed optical communications
Science analysis and experiment
Medical equipment
The absolute values:
| Parameter |
Symbol |
Value |
Unit |
| Operating temperature |
Top |
-20～+80 |
℃ |
| Storage temperature |
Tstg |
-45～+100 |
℃ |
| Forward current |
If |
1 |
mA |
| Operating Voltage |
Vo |
0.95×VBR |
V |
| Power dissipation |
Ip |
1 |
mW |
| Soldering temperature(time) |
Ts（10s） |
260 |
℃ |

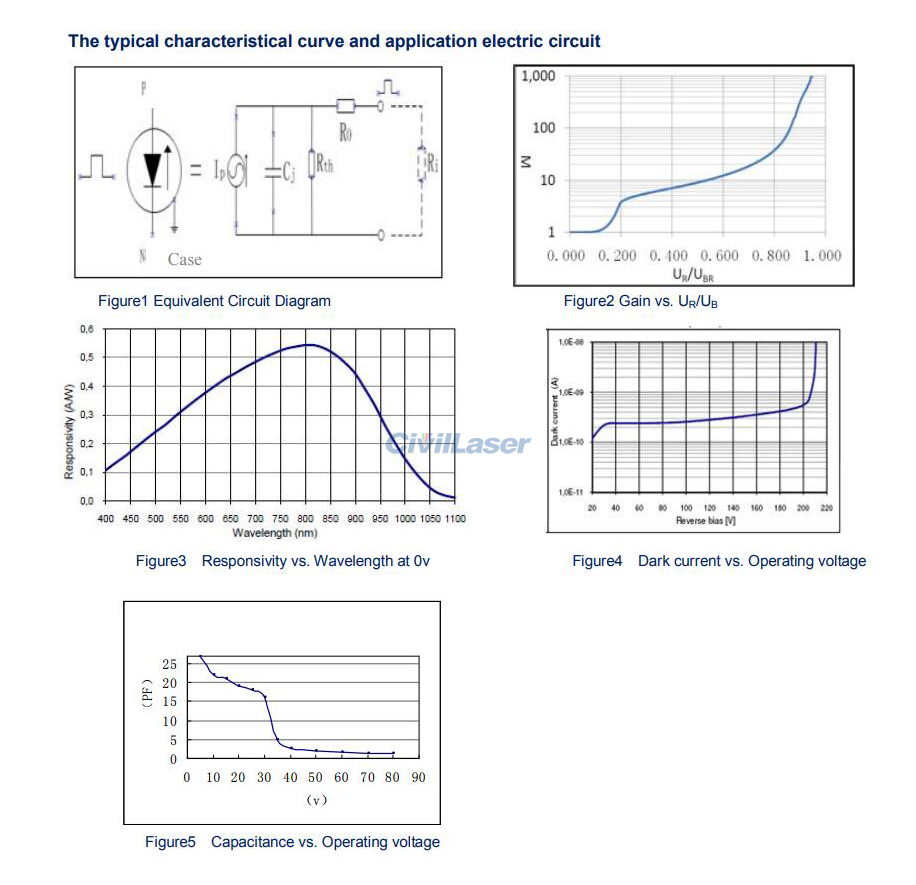

The opto-eletronic characteritics (T=22±3℃)
| Parameter |
Symbol |
Test Conditions |
Min |
Typ. |
Max |
Unit |
| Response Spectrum |
λ |
— |
400～1100 |
nm |
| Active diameter |
φ |
— |
500 |
μm |
| Reponsivity |
Re |
λ=905nm, 1μw, M=1 |
|
0.57 |
|
A/W |
| Response time |
Tr |
M=100,RL=50Ω,λ=850nm |
|
0.6 |
1.5 |
ns |
| Dark current |
ID |
M=100 |
|
0.2 |
1.2 |
nA |
| Total capacitance |
Ctot |
M=100,f=1MHz |
|
1.5 |
|
pF |
| Reverse breakdown voltage |
VBR |
IR=10uA |
120 |
|
200 |
V |
| Operating voltage temperature coefficient |
δ |
Tc=-40℃～85℃ |
|
0.9 |
|
V/℃ |

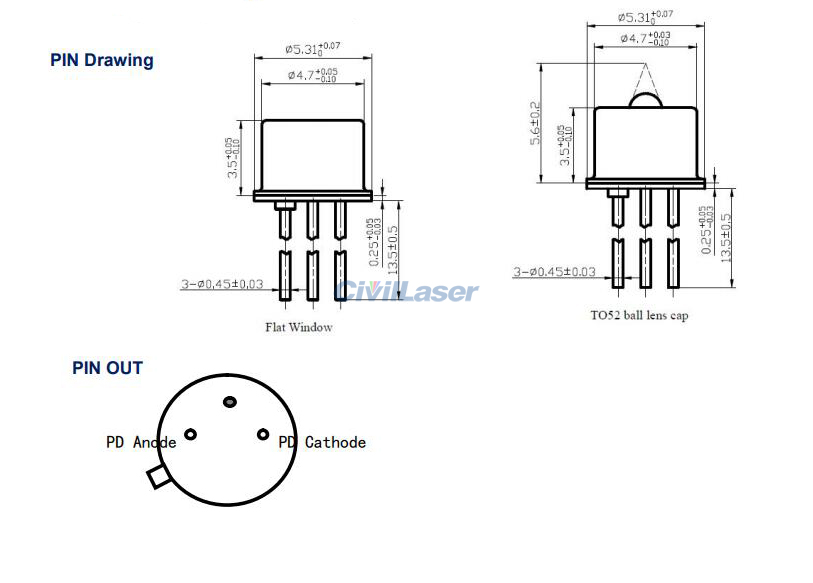

| Package |
Hermetic TO46 Can or with receptacle or with fiber coupling |
메모:

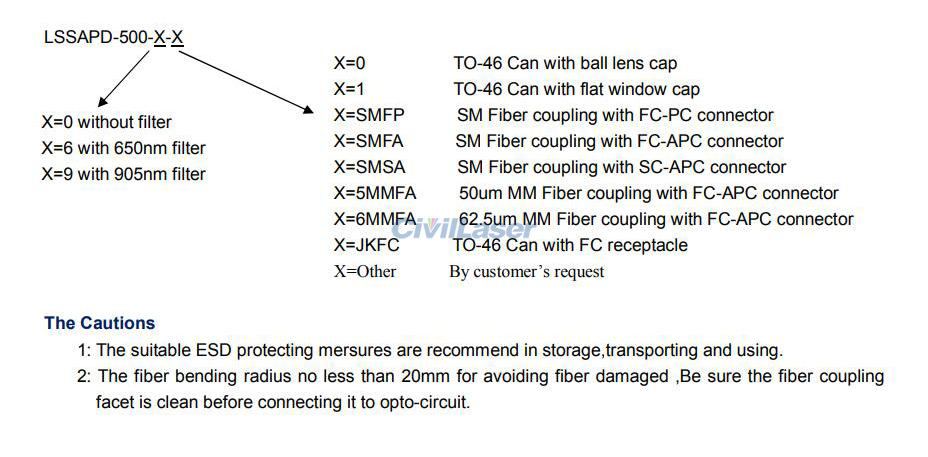

(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
