First Sensor High Speed Si APD 400-1100nm Avalanche 포토다이오드 Amplifier TO5 Package

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


First Sensor High Speed Si APD 400-1100nm Avalanche 포토다이오드 Amplifier TO5 Package

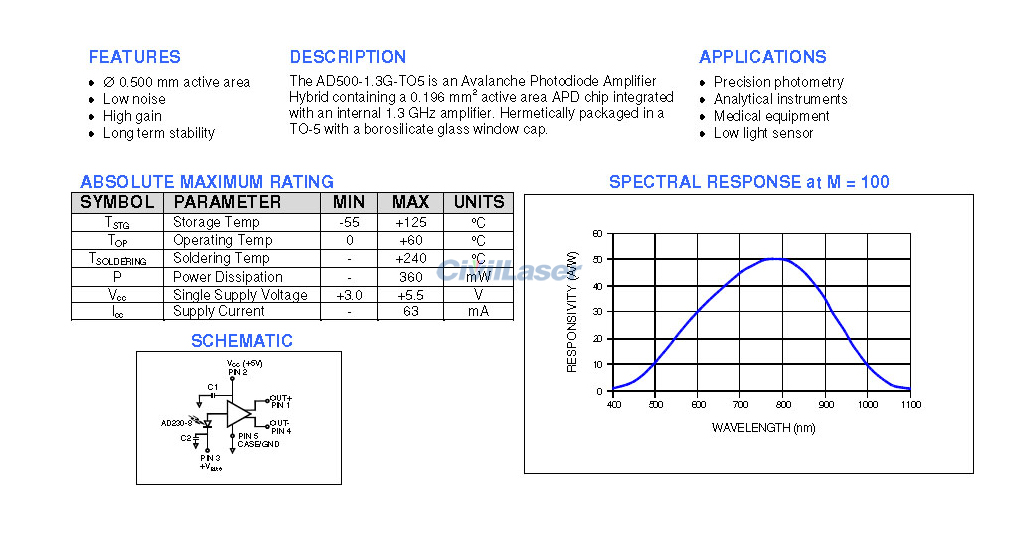

The AD500-1.3G-TO5 is an Avalanche 포토다이오드 Amplifier Hybrid containing a 0.196mm² active ared APD chip integrated with an internal 1.3GHz amplifier. Hermetically package in a TO5 with a borosilicate glass window cap.

[특징]
φ0.500mm active area
Low noise
High gain
Long term stability

[Applications]
Precision photometry
Analytical instruments
Medical equipment
Low light sensor

Absolute Maximun Rating:

Parameter Symbol Value Unit
Operating temperature Top 0~+60
Storage temperature Tstg -55~+125
Power dissipation Ip 360 mW
Soldering temperature Ts 240
Single supply voltage Vcc +3.0~5.5 V
Supply current Icc 63 mA


메모:
(1) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(2) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.
